8.5 Dimensions

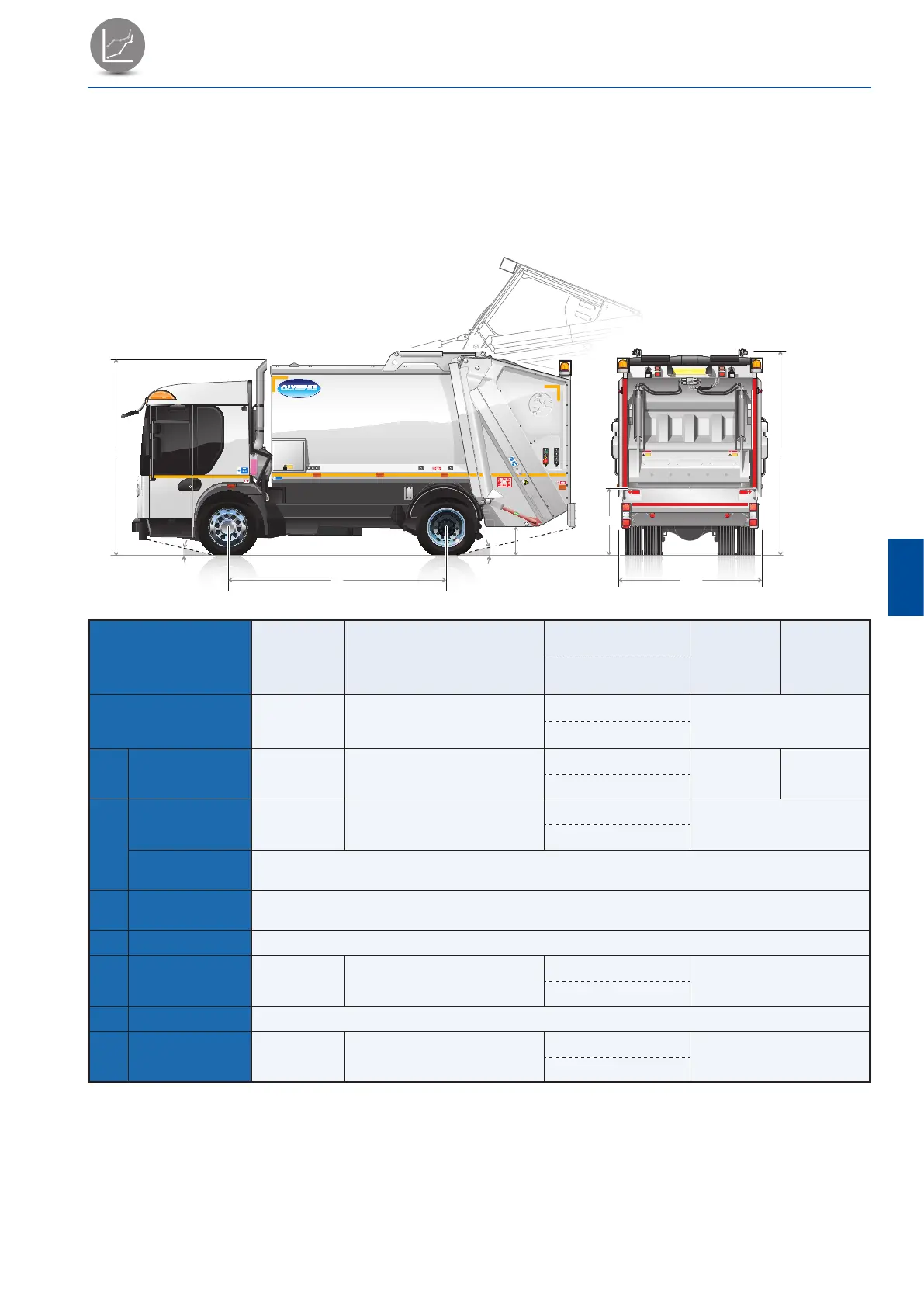

8.5.1 Olympus series - smooth body narrow RCV
Dennis Eagle Elite 2 municipal chassis‑cab fitted with ‘Smooth sided’ narrow width (2.23m) refuse collection
bodywork.
It is an offence
for any person to
ride on the rear of
a moving vehicle
386+726723
It is an offence
for any person to
ride on the rear of
a moving vehicle
386+726723
Stand clear
when blade is
in motion
Do not reach into
the hopper when
blade is in motion
Stand clear
when blade is
in motion
Do not reach into
the hopper when
blade is in motion
855371B
Refer to workshop
manual before any
maintenance or repair
operations
1002780
HYDRAULIC OIL
ONLY
22502250
V6
V6
V15V15
V13
V13
V2
V7V7
V14
V11V11
V1V1
V4
2753-OL1-D-GB-G2
1002780
HYDRAULIC OIL
ONLY
RIDE ON REAR
ENTER BODY WITH ENGINE RUNNING
DO NOT
WALK UNDER RAISED HOPPER
DRIVE WITH BINS RAISEDREACH INTO BINS
REACH INTO HOPPER
WALK UNDER RAISED BINS HOLD OBJECTS BEING PACKED
855376
CAUTION
CHECK DAILY
REPORT FAULTS
CLEAN AS NECESSARY
· REFUSE BUILD UP/SPILLAGE
· HYDRAULIC OIL LEAKS
· DIESEL FUEL OIL LEAKS
· ENGINE OIL LEAKS
PT No. 863993
Compaction body type OL-10N
OL-11N, with Combi:
KS2(2.0, 3.5, 4.2)NTD
OL-14N
OL-16N OL-19N
OL-14N, with Combi:
KS(2.0, 3.5)NTD
Elite chassis type
4x2 6x2RS
6x2ML (a) 6x2ML (a)
6x2MS (b)
6x2RS (c)
6x2RS (b)
V1 Overall
wheelbase
3250 4950, 5350, 5550
4050 (a) 4700 (a, b)
4650 (c)
5200 (a, b)
5250 (c)
5450, 5900 (b)
V6 Overall height
3450 3740
3450 (a)
3450
3740 (b)
Overall height -
tailgate raised
5100
V7 Overall height
(exhaust tip)
3500
V11 Rave rail height 1050
V13 Ground clearance
- tailgate
410 435
410 (a)
410
435 (b)
V14 Approach angle 15.5°
V15 Departure angle
16° 15°
16° (a)
16°
15° (b)
Note: Unless otherwise stated, all dimensions are nominal, in mm and represent an unladen vehicle without
a waste container lifting device and fitted with standard tyres; tyre deflection is not included. On vehicles
equipped with optional air suspension, heights may differ. All specifications are subject to manufacturers
tolerances. Additional equipment may alter dimensions quoted.
