32 • ULTRIX-MOD-SFP ULTRIX-MODX-IO User Guide (v1.0)
Gearbox Cabling

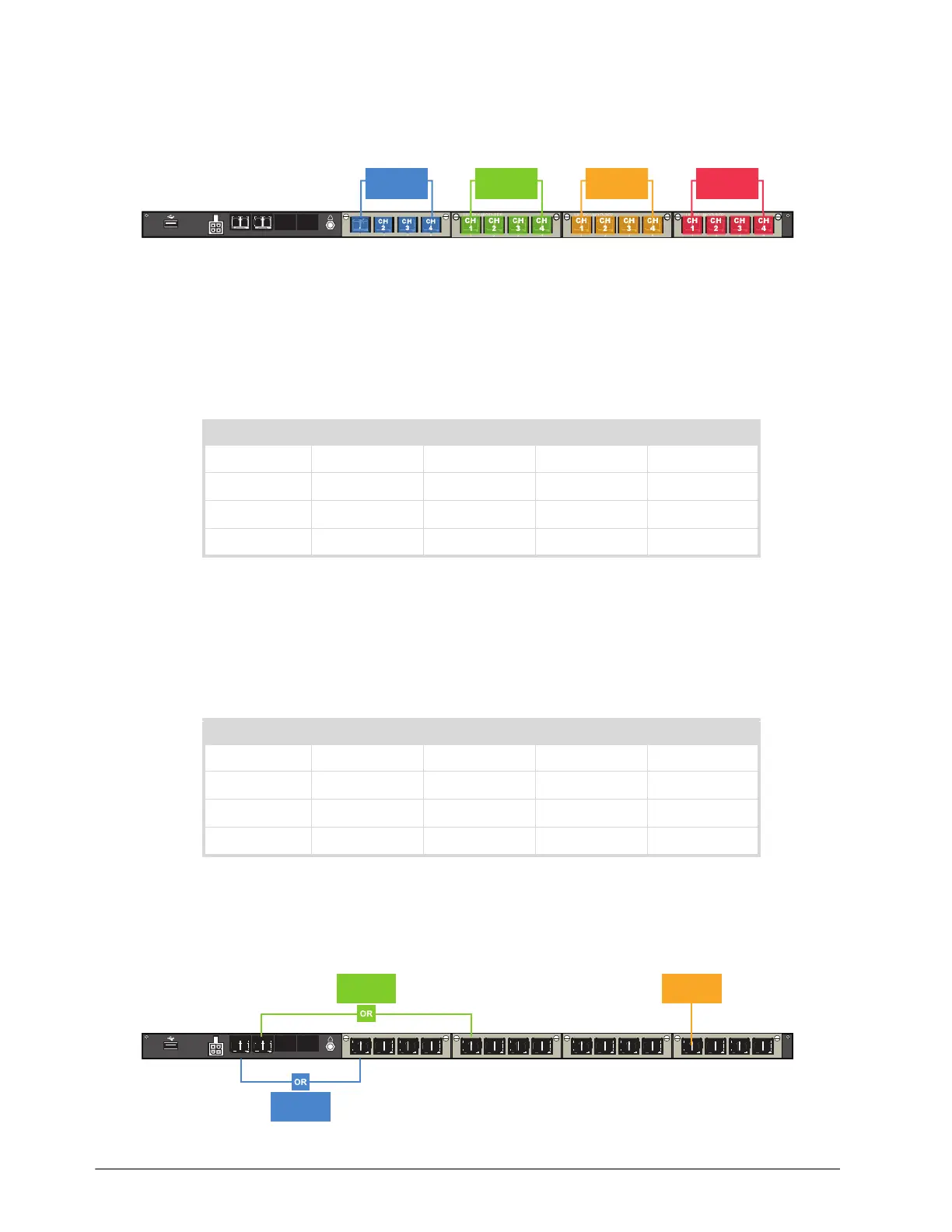

Figure 12 illustrates the connections allocated for Gearbox groups on an ULTRIX-MODX-IO with
four ULTRIX-MOD-SFP.
Figure 12 Example of Gearbox Mapping on a Single ULTRIX-MODX-IO Blade with Four ULTRIX-MOD-SFP
Outputs
When you configure an ULTRIX-MOD-SFP as a Gearbox output group, the signals of the four 3G
Level A channels are grouped together to provide a single 12G signal to an output. Each
ULTRIX-MOD-SFP can be configured as an output group.
Inputs
When you configure an ULTRIX-MOD-SFP as a Gearbox input group, the signals of the four 3G Level
A channels are multiplexed together. Table 2 outlines the default inputs for the ULTRIX-HDX-IO
blade with four ULTRIX-MOD-SFP.
UltriScape Cabling
Figure 13 illustrates the connections allocated for UltriScape Heads on an ULTRIX-MODX-IO with
four ULTRIX-MOD-SFP.
Figure 13 Example of UltriScape Head Mapping on a Single ULTRIX-HDX-IO Blade
Table 1 Gearbox Mapping — Default Output Groups
Group Channel 1 Channel 2 Channel 3 Channel 4
1 MOD1.out[1] MOD1.out[2] MOD1.out[3] MOD1.out[4]
2 MOD2.out[1] MOD2.out[2] MOD2.out[3] MOD2.out[4]
3 MOD3.out[1] MOD3.out[2] MOD3.out[3] MOD3.out[4]
4 MOD4.out[1] MOD4.out[2] MOD4.out[3] MOD4.out[4]
Table 2 Gearbox Mapping — Default Input Groups
Group Channel 1 Channel 2 Channel 3 Channel 4
1 MOD1.in[1] MOD1.in[2] MOD1.in[3] MOD1.in[4]
2 MOD2.in[1] MOD2.in[2] MOD2.in[3] MOD2.in[4]
3 MOD3.in[1] MOD3.in[2] MOD3.in[3] MOD3.in[4]
4 MOD4.in[1] MOD4.in[2] MOD4.in[3] MOD4.in[4]
ULTRIX-MODX-IO
!
BA C D
ULTRIX-MOD-SFP
CH
1
CH
2
CH
4
CH
3
GROUP
4
CH
1
CH
2
CH
4
CH
3
GROUP
2
CH
1
CH
2
CH
4
CH
3
GROUP
3
CH
1
CH
2
CH
4
CH
3
GROUP
1
ULTRIX-MODX-IO
!
BA C D
1234
ULTRIX-MOD-SFP
1234
ULTRIX-MOD-SFP
1234
ULTRIX-MOD-SFP
1234
ULTRIX-MOD-SFP
UltriScape
Head 3
UltriScape
Head 1
UltriScape
Head 2
