Installation
AC-x32 Series Installation and Programming Manual 13

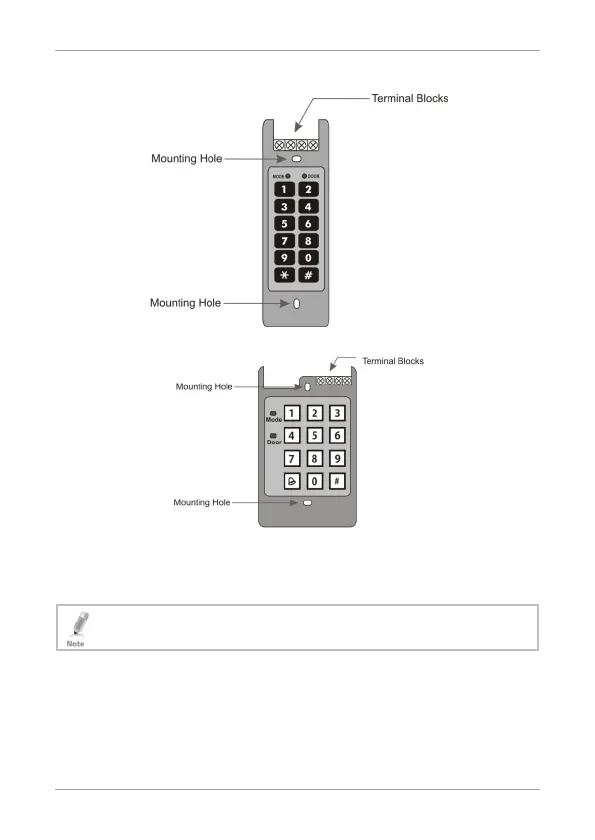

Figure 2: AC-C32 – Mounting Holes and Terminal Blocks
Figure 3: AC-D32 – Mounting Holes and Terminal Blocks
5. Wire the controller as shown in Section 3.2.
6. Screw the back plate into the surface. Ensure the screws are the
size specified on the installation template.
The unit can also be mounted using strong epoxy glue. After
application, firmly hold the unit in place until the glue dries.
7. Carefully re-attach the front cover of the unit.
8. Secure the front cover by using the supplied security Torx screw.
A Torx security screw tool is provided to tighten the security Torx
screw.
