Rosslare AC-C32 - Wiring; Ac-B32; Figure 4: AC-B32 - Wiring the Lock Strike Relay and REX; Figure 5: AC-B32 - Wiring the BL-D40 External Sounder

Installation
14 AC-x32 Series Installation and Programming Manual
3.2 Wiring
Typical wiring diagrams for the various units are shown in the
following subsections.
3.2.1 AC-B32

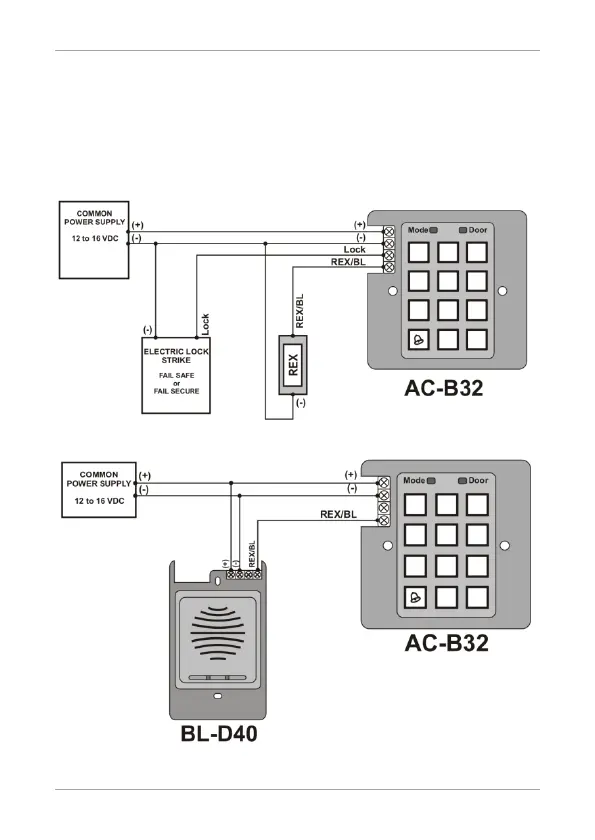

Figure 4: AC-B32 – Wiring the Lock Strike Relay and REX
Figure 5: AC-B32 – Wiring the BL-D40 External Sounder
