Rosslare AYC-F64 User Manual

Controller Functionality
AYC-Fx4 and AYC-Gx4 family manual Page 51
Mode/Transmit
Door/Program
Green
If the Programming Code is invalid, you will hear a long beep and
the unit will return to Normal Mode.
Note:
It is recommended that a record be kept of added and
deleted users so that it will be easier to keep track of which
user slots are empty and which user slots are not.
6.9.16. Relay Codes Assignment
When a primary code is enrolled for any user, the user is
authorized to activate the Lock Strike relay. However, different
user codes may be set to operate the auxiliary relay instead or
operate both the Lock strike and auxiliary relay. Assignment of
such codes is achievable for any valid user code entered in the
controller.
There are two methods to assign relay codes to users: a standard
method and a search method.

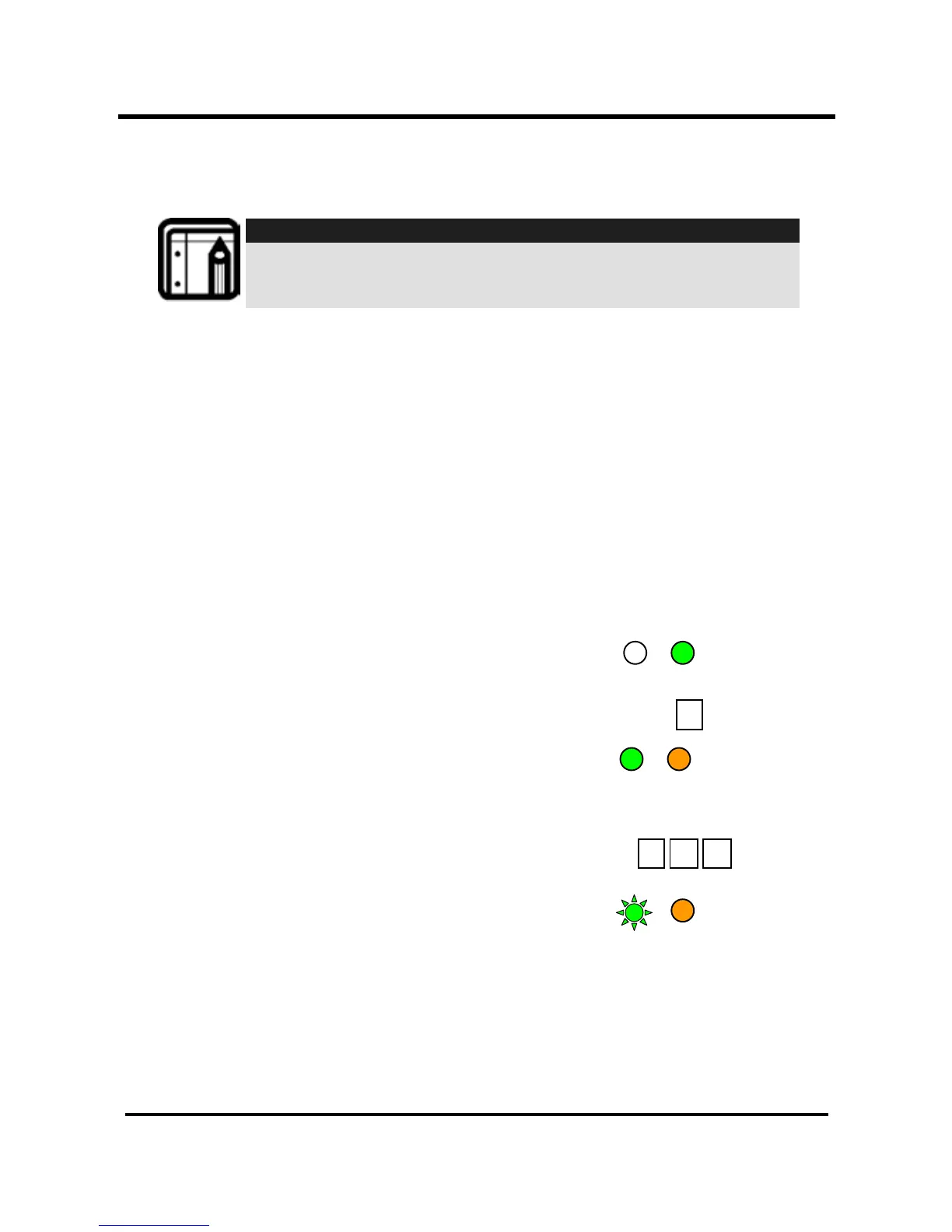

Relay Code Assignment using Standard Method
1) Enter the programming
mode.
2) Depress 9 to enter Menu 9.
• The Mode LED will turn
green.
• The Door LED will turn
orange.
3) Enter the 3-digit user slot for code
assignment.
• The Mode LED will flash
green.
4) Enter the assignment digit
for the current user slot:
• 1 will activate the Lock Strike relay only deafult
• 2 will activate the Auxiliary relay only
• 3 will activate the Lock Strike and Auxiliary relays.
9
?
?
?
Mode/Transmit
Door/Program
Green
Orange
Mode/Transmit
Door/Program
Green
Orange

Rosslare AYC-F64 Specifications

General

Model	AYC-F64
Number of Doors Supported	1
Operating Humidity	0 to 95% (non-condensing)
Keypad	Yes
Protection Class	IP65
Operating Voltage	12V DC
Input Voltage	12 to 24 VDC
Operating Temperature	-31°C to 63°C (-25°F to 145°F)
Tamper	Optical Back Tamper Detection
Dimensions	120mm x 76mm x 21mm (4.72" x 2.99" x 0.83")
Operating Current	65mA
Communication Interface	Wiegand 26-Bit
