Controller Operation
44 AYC-Qx4 Family Installation and Programming Manual

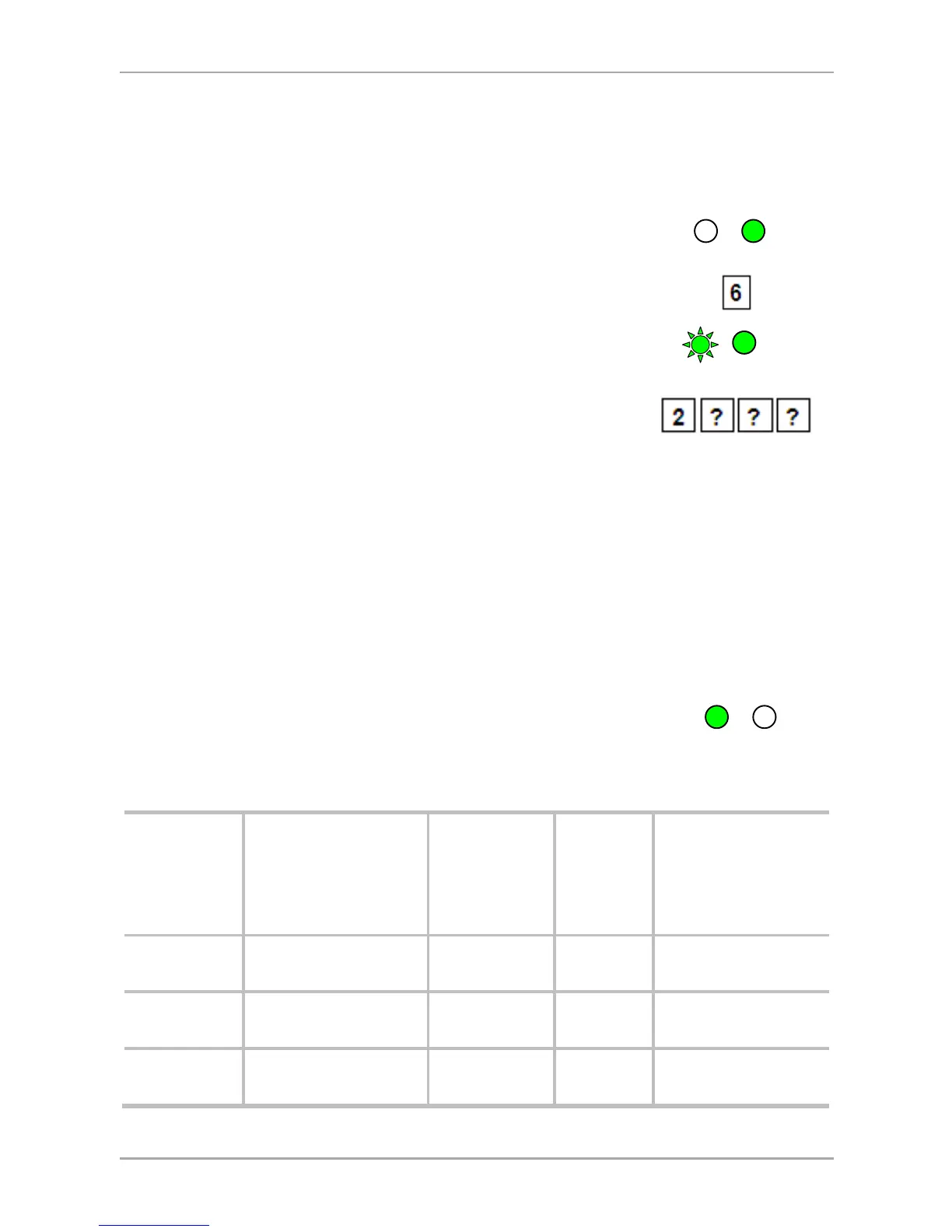

5.9.9 Defining the Auxiliary Input and Output
The default auxiliary setting is 2004.
To define the auxiliary input and output:
1. Enter Programming mode.
2. Press 6 to enter Menu 6.
The left LED flashes green.
3. Construct a code using the following
instructions:
 Second digit (Auxiliary Mode)
In addition to the Lock Strike Relay and Lock Strike REX, the
unit features an Auxiliary Input. The Auxiliary mode defines
the function of the Auxiliary Input.
 Third and fourth digits (Auxiliary Setting)
Each of the Auxiliary modes has a 2-digit setting that affects
how the Auxiliary mode functions (Table 5).
You hear three beeps.
The system returns to Normal mode.
Table 5: Quick Reference Guide for Auxiliary Mode Setting
Aux.
Mode
Aux. Input
Function
Aux.
Output
Activated
by
Aux.
Relay
Aux. Settings
(in seconds)
0 AUX REX Valid code or
AUX REX
N.O. 01 to 99 Aux.
relay release time
1 Normal/Secure
switch
Valid code N.O. 01 to 99 Aux.
relay release time
2 Normal/Secure
switch
Star button
(*)
N.O. 01 to 99 Aux.
relay release time
Green
Green
Green
Green
