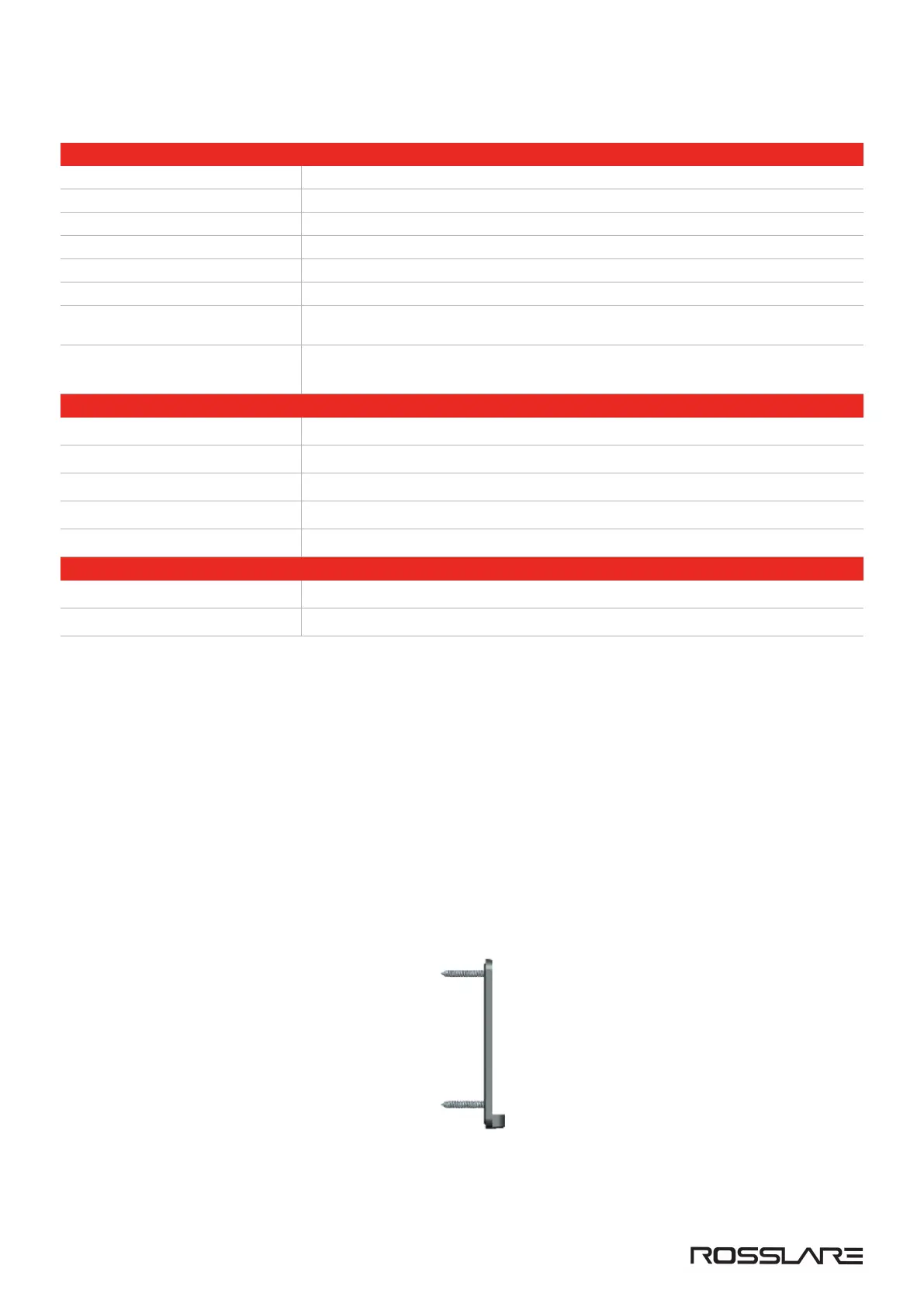

Rosslare Multi-Smart AY-K35 - Technical Specifications; Installation

2. Technical Specifications
Electrical Characteristics
Power Supply Type Regulated
Operating Voltage Range 8 to 16 VDC
Current @ 12 V Maximum: 300 mA @ 12 VDC
Bluetooth BLE Read Range* 12 m (39.3 ft) (line of sight)
RFID and NFC Read Range** Contactless: 13.56 MHz: 5 cm (1.97 in.), 125 kHz: 8 cm (20.32in.)
LED/Buzzer Controls Dry Contact, N.O.
Tamper Output / Touch Button
Output
Open collector, active low, max. sink current 20 mA @12 VDC, 10 mA@5VDC. Current
limit: 500Ω series resistance
Maximum Cable Distance to
Controller
Wiegand: 150 m (500 ft) with 18-AWG cable
OSDP (RS-485): 1,200 m (4,000 ft) with 2x2 18 AWG twisted shielded cable
Environmental Characteristics
Operating Environment IP68, UV-resistant, epoxy-potted, suitable for indoor and outdoor use
Operating Temp. Range -35°C to 66°C (-31°F to 150°F)
Operating Humidity Range 0% to 95% (non-condensing)
Vandal Resistance IK09
Antimicrobial efficacy Inhibits bacteria proliferation by up to 99.8%
Physical Characteristics
Dimensions (H x W x D) 88 x 48 x 24 mm (3.46 x 1.89 x 0.94 in.)
Weight 121 g (4.27 oz)
* Read range is different for different smartphones and also is affected by a variety of factors.
** Read range listed is statistical mean rounded to nearest centimeter, measured in open air using Rosslare MIFARE Classic EV1 (ISO card). Form factor, technology and
environmental conditions, including metallic mounting surface, can degrade read range performance; plastic spacers are recommended to improve performance on
metallic mounting surfaces.
3. Installation
3.1. Mounting the Multi-Smart™ Readers
When selecting an area for mounting, ensure the location is flat.
To mount Multi-Smart™ Readers:
1. Drill 2 holes in the wall, using the mounting template provided in the installation.
Multi-Smart™ Readers Installation & User Guide
