Rotabroach Element 100 Series - Gear Selection; Magnet Detection

Element 100 Manual Original Instructions Aug 2016
10

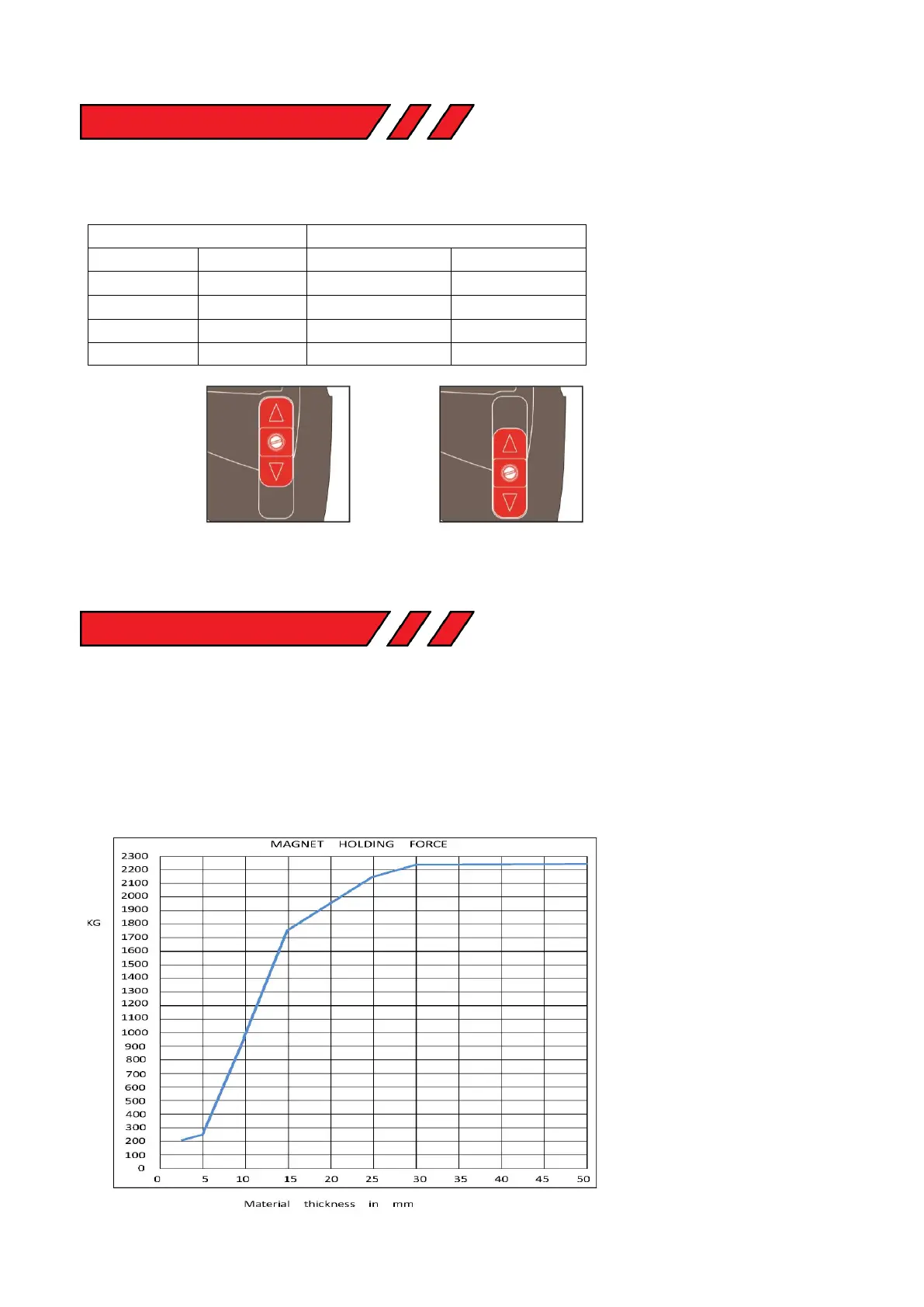

9) GEAR SELECTION
The Element 100 magnetic drill is fitted with a 4 speed gearbox. The gear is used to reduce the
output speed when using larger cutters.
Slide Selector Position
Speed Controller Setting
Left
Right
Level 1
Level 6
\/
/\
45/min
129/min
\/
\/
70/min
208/min
/\
/\
150/min
434/min
/\
\/
240/min
700/min
The Slide Selector Positions show Left /\ and Right\/depicting an available range of 240 – 700/min.
10) MAGNET DETECTION
It is advised that when working on thin material a packing piece should be used to increase the
material thickness under the magnet. Working on thin material without a packing piece will reduce
the magnet holding force.
It is advised that the drill is to be operated on ferrous material 12mm thick and above. Damage to
the magnet base, such as pitting, will affect the strength of the magnet holding force.
Slide Selector Positon Left
Slide Selector Position Right
