10
Lower Post With 60"
Hydraulic Hose Into Stationary Housing
Locking Latch Plate
Faces Away From Power Unit
Area
Saddle Pocket
Hose Routes
Under Support
Align Post
With Holes In
Post Bracket
Do Not Let The End Of The Hydraulic
Hose Drop Into Housing
Power Unit
Area
Watch Recoil Air Line
Make Sure It Doesn't
Get Pinched Or Ruptured
CAUTION
Install (8)
1/2"-13NC x 2-3/4" HHCS And Lock Washers
Grade 8 High Strength
DO NOT EXCEED
1/8"
In Shims
Torque Bolts To
60 ft. lb.
(Oiled)
B.) Attach post to stationary housing with 1/2"-13NC HHCS, Fig 9a.
Make sure post is plumb.

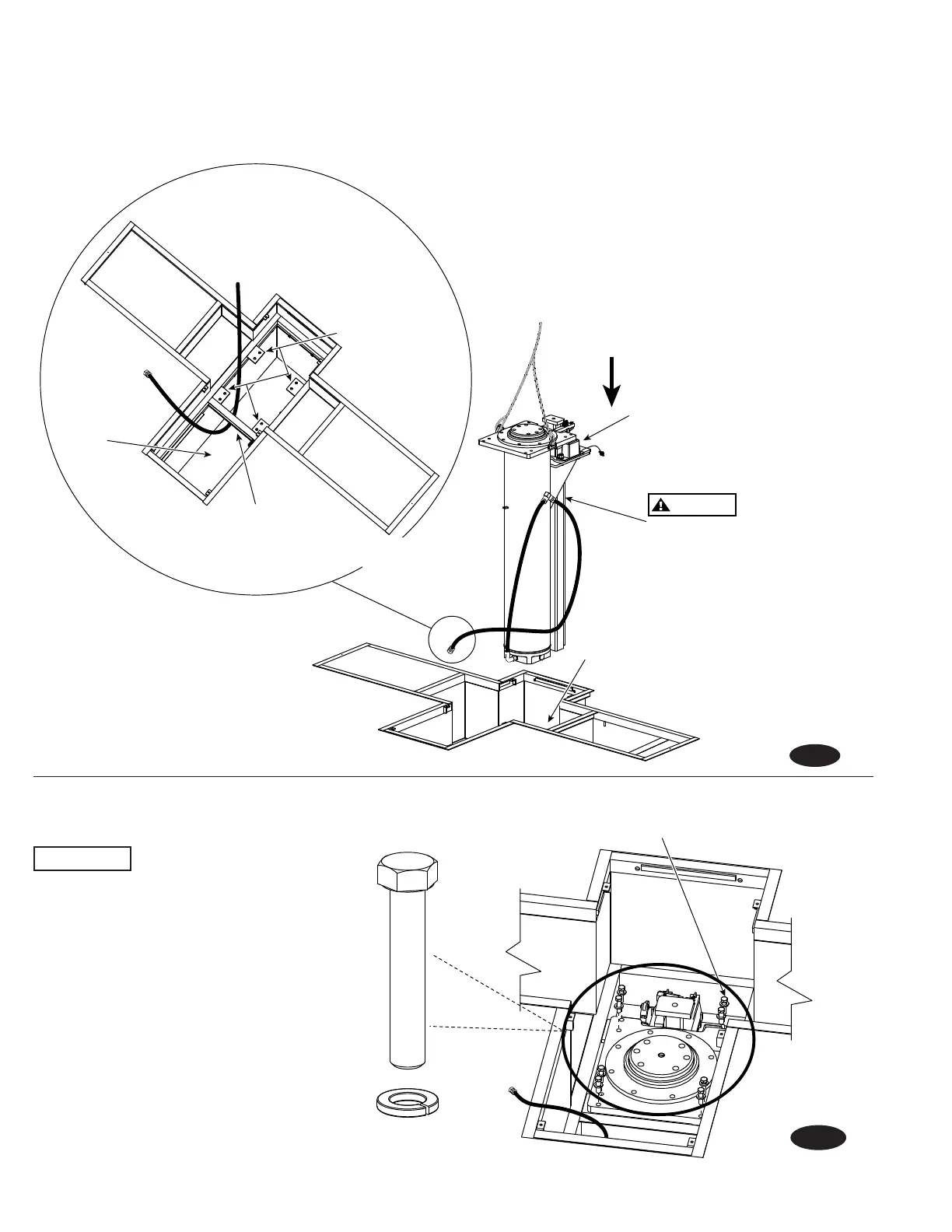

Fig. 9
Fig.9a
Step 10: Installing Stationary Post Into Housing:
A.) Lower post into housing, Fig. 9.
To Next Page
