Rotary 100 Series Installation Instructions

9
Step 8: Lowering Moveable Posts Into Housings:
A.) Take the posts with the longer hoses and lower them into the
front and rear housings, Fig. 8.
Step 9: Moving Post To Saddle Pocket:
A.) Roll post back into saddle pocket.

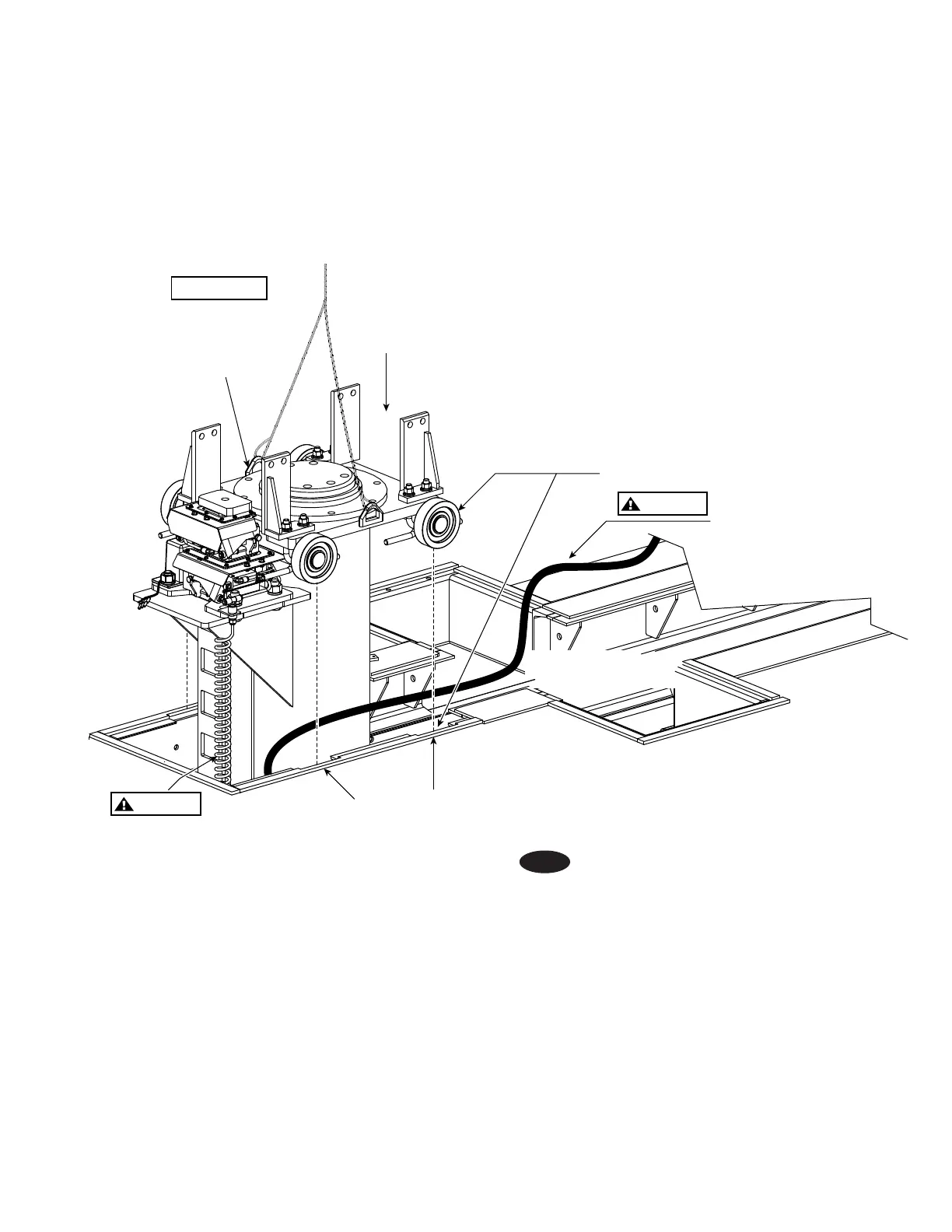

Fig. 8
Lower Post Assembly
Into Front Housing
Saddle Pocket
Slots In C-Channel
(2) Each Side
Align Wheels On Axle Assemblies
With Slots In C-Channel
Watch Hydraulic Hose
Make Sure It Doesn't
Get Pinched Or Ruptured
CAUTION
Watch Recoil Air Line
Make Sure It Doesn't
Get Pinched Or Ruptured
CAUTION
After Post Assembly Is Positioned
On Bottom C-Channel Roll It Into
Saddle Pocket
Use Post Lugs On
Post Assembly
To Lower It Into
The Housing
IMPORTANT
