Rotary SPO20 User Manual

10
Flow Control
Regulator
Tee
Straight
Adapter
Swivel
Elbow
5/16"-18NC HEX FLGD
WZLOCK NUT
5/16"-18NC HEX FLGD
WZLOCK NUT
5/16"-18NC x 1/2" Lg. HEX FLGD
WZLOCK HHCS
(3) THREADED HOLES USED FOR
5/16" x 1/2" Lg. HEX FLGD WZLOCK HHCS
5/16"-18NC x 1-1/2" Lg. HEX FLGD
WZLOCK HHCS
N567 ADAPTER PLATE
(ONLY USED ON SPO20)
CAPACITY
16,000 LBS.
FOR SPO16
CAPACITY
20,000 LBS.
FOR SPO20
Single Phase Power Unit
(For DC Version see pages 14-23)

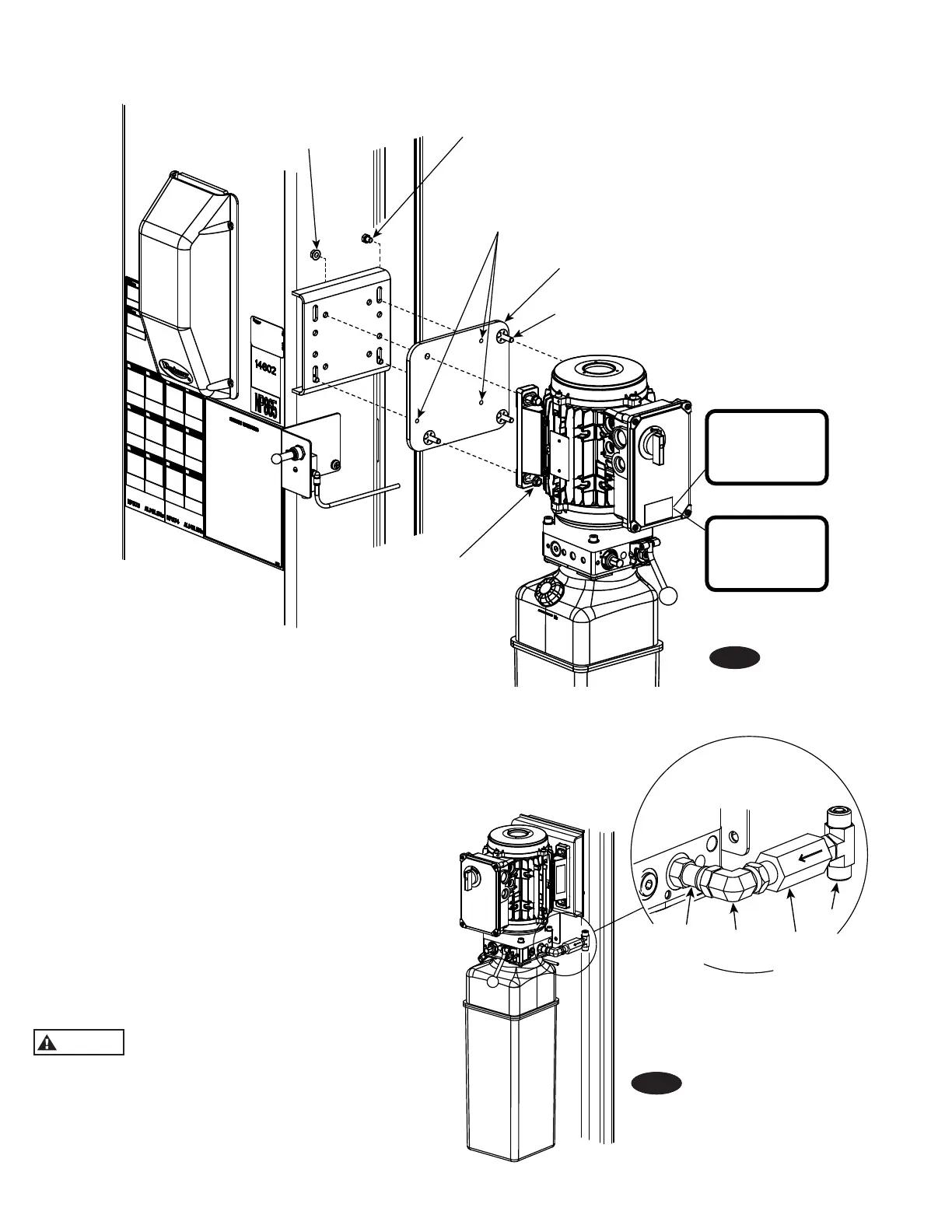

10. Single Phase Power Unit:
A) Attach (3) 5/16"-18NC x 1 ½" lg. flange head cap screws
to the adapter plate as shown with push nuts.
B) Attach the adapter plate to the column power unit
bracket with (3) 5/16"-18NC x ½" lg. flange head cap
screws as shown.
C) Attach the power unit to the adapter plate using the
existing 1 ½" lg. hardware and 5/16"-18NC flange head
nuts.
D) Add the last 5/16"-18NC x 1 ½" lg. flange head cap
screw and nut (upper left as shown) to complete the
power unit installation, Fig. 9.
E) Attach straight thread adapter, swivel elbow, flow
control regulator, and o-ring face seal tee as shown,
Fig. 10.
CAUTION
Over tightening locknut may tear O-ring or
distort threads in pump manifold outlet.
Fig. 9
Fig. 10
