Rotary SPO20 User Manual

12
1st Cable2nd Cable
Upper Sheaves
Lower Sheaves
Long Cable Threads
Located on Top
ITEM QTY. DESCRIPTION
1 2 Hydraulic Cylinder
2 1 Power Unit Hose
3 1 Overhead Hose
4 1 Branch Tee
5 3 Hose Clips(5/8")
5 3 5/16"-18NC x 3/8” lg. PHMS
6 1 Hose Clips(5/8")
6 1 5/16"-18NC x 3/8” lg. PHMS
7 4 Hose Clips(5/8")
7 4 5/16"-18NC x 5/8” lg. PHMS
7 4 5/16"-18NC Nut

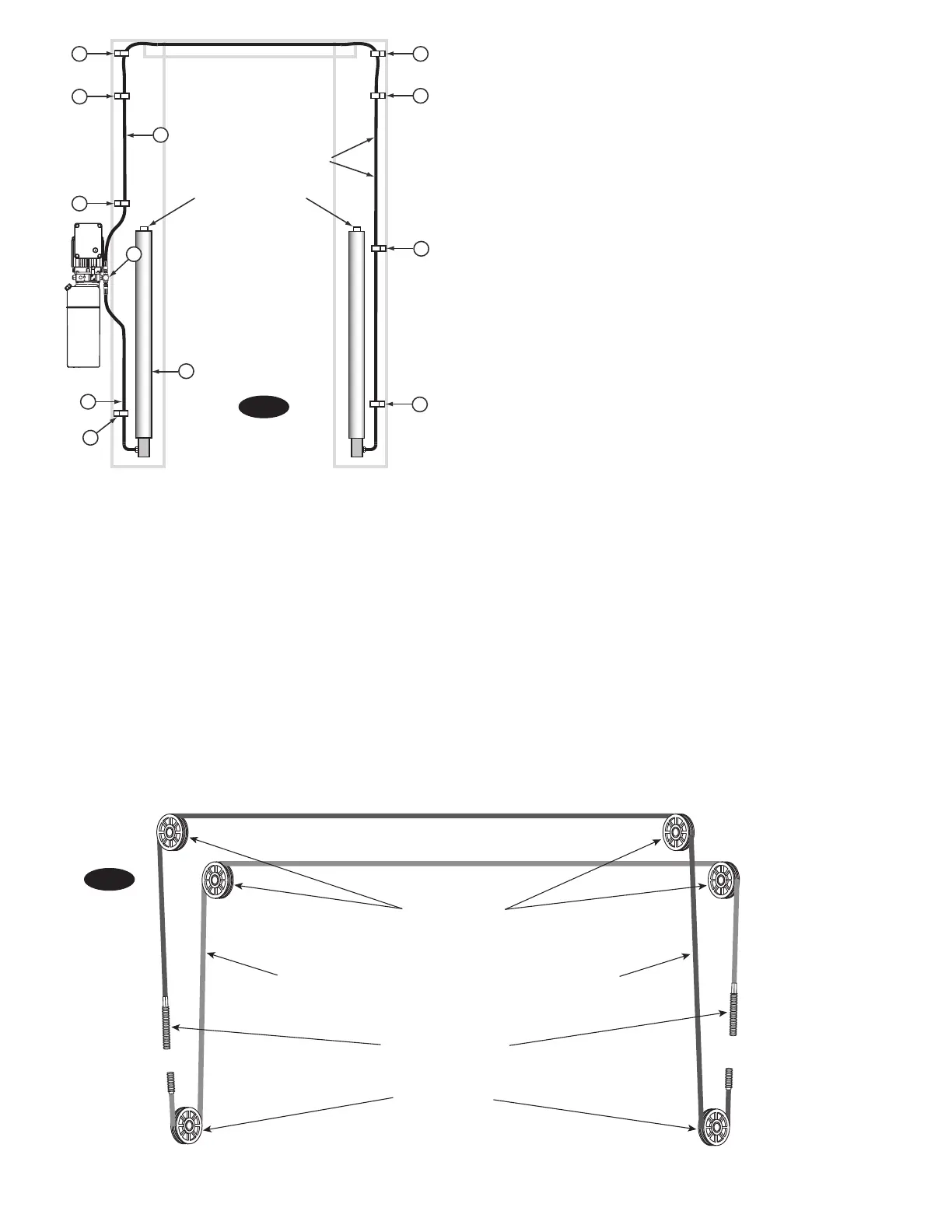

12. Equalizer Cables: Fig. 15 describes general cable ar-
rangements. It is easier to tie-off lower (short) cable
studs first. Notice, long cable studs must be located on
top, Fig. 14.
A) Run cable stud up through the lower tie-off plate, and/
or bracket(s), and/or spacer(s) depending on the lift
model, Fig. 15.
B) Push cable up until stud is above top of carriage Fig.
15.
1
2
3
4
5
7
7
6
7
7
5
5
Hose runs down
Passenger
Side
approach side to
cylinder on left column.
Hose runs through holes in
extensions, then through
holes in overhead.
Cylinder bleeders
Torque values
15 ft. lbs. Minimum
20 ft. lbs. Maximum
Fig. 13
Fig. 14
C) Run nylon insert locknut onto studs so that 1/2" ex-
tends out from locknut Fig. 15.
D) Pull cables back down through carriage Fig. 15.
E) Run cable overhead and tie-off top (long) cable studs
and torque to about 100 in-lbs., see Fig. 14 & Fig. 15.
