5

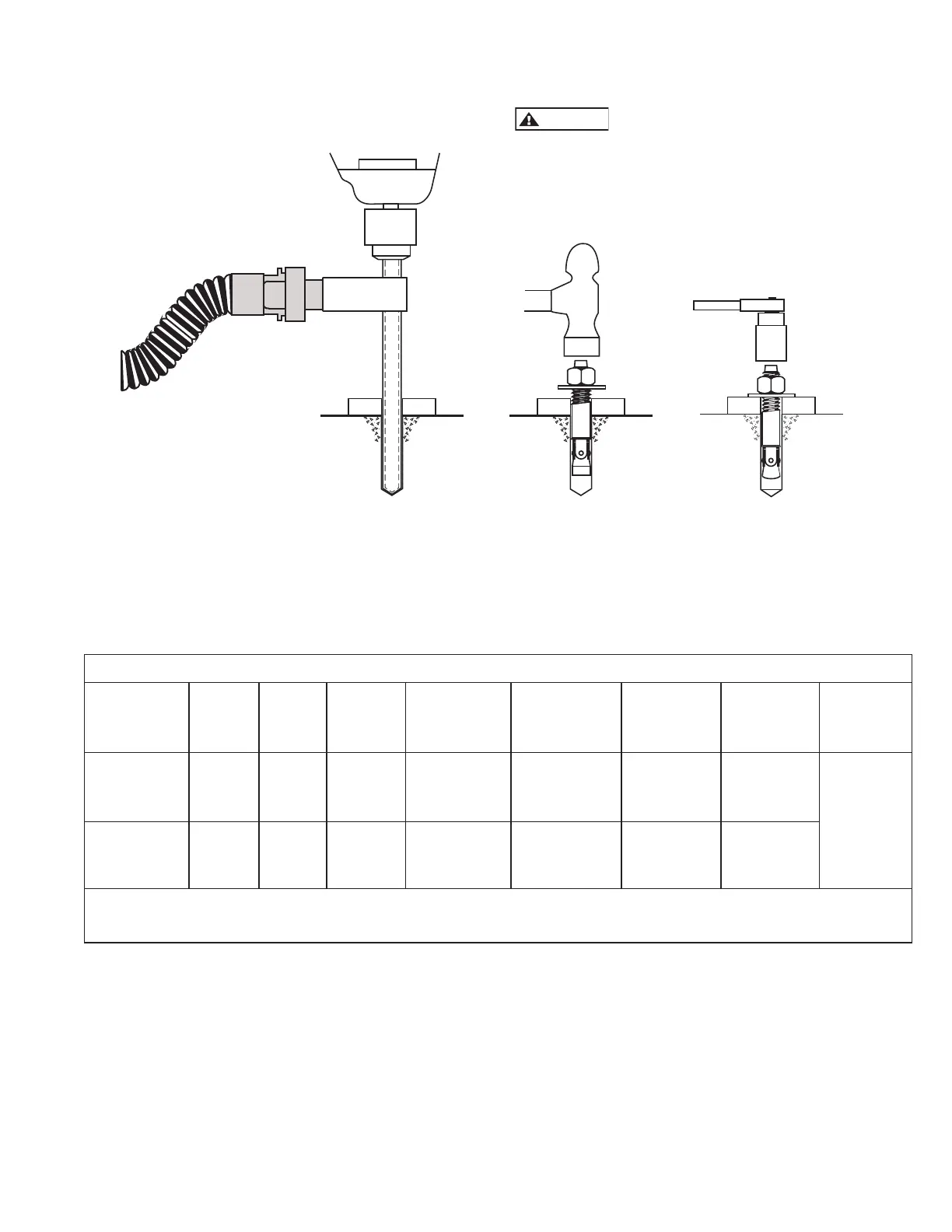

Concrete and Anchoring:
Drill (14) 3/4" dia. holes (7 per side) in concrete floor using
holes in column base plate as a guide. See diagrams for
hole depth, hole spacing, and edge distance requirements.
DO NOT install on asphalt or other similar
unstable surfaces. Columns are supported only by
anchors in floor.
Run nut down just below
impact section of bolt. Drive
anchor into hole until nut and
washer contact base.
Drill holes using 3/4” carbide
tipped masonry drill bit per
ANSI B212.15-1994 (R2000).
Construction dust collected
per OSHA 29 CFR 1926.1153.
Manually Hand Tighten
nut with Torque wrench
to 110 ft.-lbs.
16-20K 2-Post Lift Anchor Installation Reference Guide
Anchor: Min
Concrete
Thickness
Min Edge
Distance
Min Anchor
Embedment
Installation
Anchor Torque
(ft-lbs)
Min Concrete PSI
Strength - For All
Standards
Concrete pad
Size If Concrete
Does Not Meet
Requirements
Maintenance
Torque Values**
(ft-lbs)
SEISMIC
Hilti Kwik Bolt I
(3/4" x 5-1/2")
(1300-1600 Series
Lifts)
4-1/4"
(108mm)
6-1/4"
(159mm)
3-1/4"
(83mm)
110
(149Nm)
3000
(20684 kPa)
6'x6'x6"
(1829 x 1829 x
152mm)
65
(88Nm)
Varies by
location
consult with
your structural
engineer and
manufacturer’s
representative.
Hilti Kwik Bolt III
(3/4" x 5-1/2")
(500-1200 Series
Lifts)
4-1/4"
(108mm)
3-3/8"
(86mm)
3-1/4"
(83mm)
110
(149Nm)
3000
(20684 kPa)
6'x6'x6"
(1829 x 1829 x
152mm)
65
(88Nm)
*The supplied concrete fasteners meet the criteria of the American National Standard
“Automotive Lifts - Safety Requirements for Construction, Testing, and Validation” ANSI/ALI ALCTV-2011, and the lift owner is responsible for all charges
related to any additional anchoring requirements as specified by local codes. Contact customer service for further information at: 800.640.5438
