Rotary SPOA10NB Series User Manual

11

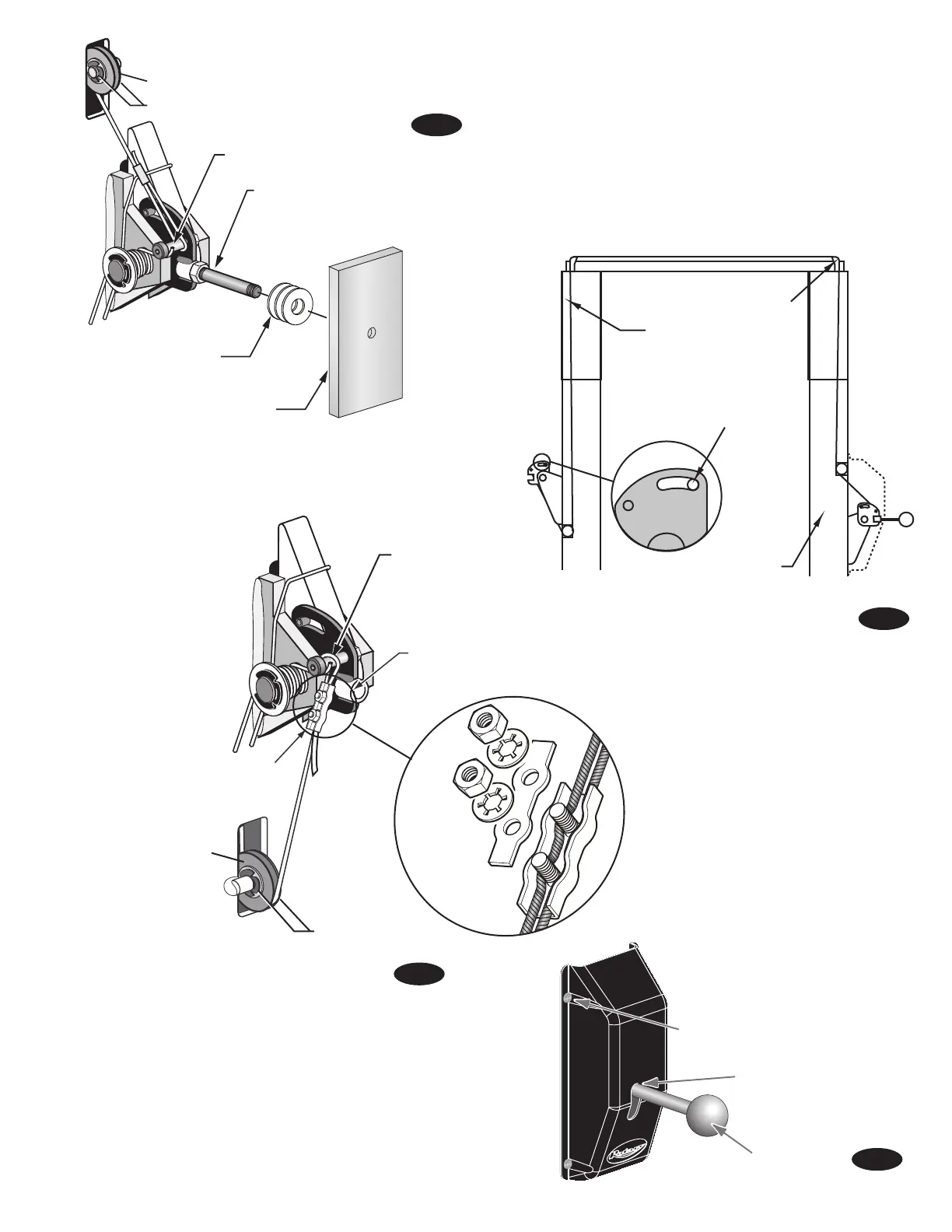

(2) 3/8" Retaining Rings
Latch Cable Sheave
Shoulder Bolt
Install Latch Handle using a 3/8"
hex jam nut to lock in place. Then
install flat washers and slot cover.
(3) 3/8” Flat Washers
Slot Cover
Shoulder Bolt
Cable Clamp
Feed cable up through Cable
Clamp, loop over end of
shoulder bolt and feed back
down through Cable Clamp.
(2) 3/8" Retaining
Rings
Latch Cable Sheave
Fig. 19
Fig. 17
Latch Cable Guide
Right Column
Latch Cable
Notice the clearance
removed between
Control Plate Slot
and Latch Dog Pin.
Fig. 18
5/16-18NC x 3/8" lg. PHMS
Latch handle MUST be
positioned at the top of
the latch control cover.
Ball Handle
Fig. 20
