12
Overhead Switch
Max. Voltage: 277V
Max. Current: 25A

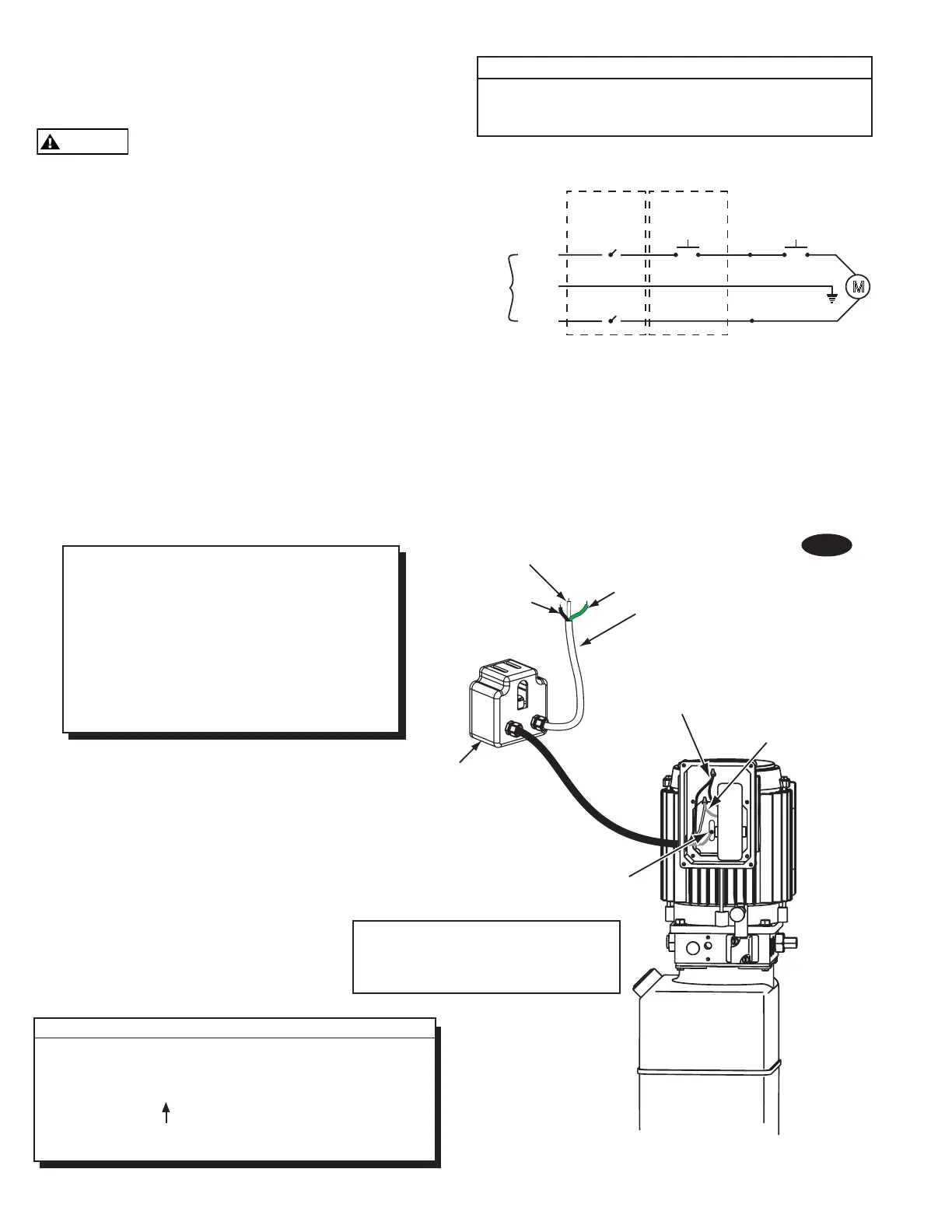

Connect supply to wires in box as per
Fig. 22. Attach ground wire to screws
provided.
Attach ground wire here.
208-230V 60Hz
Single Phase
Attach black wire
to one motor wire.
Attach white
wire to
one motor wire.
Black
Green
Single Phase Power Unit
13. Electrical: Have a certified electrician run
appropriate power supply to motor, Fig.
21 & 22. Size wire for 20 amp circuit. See
Motor Operating Data Table.
Never operate the motor on line
voltage less than 208V. Motor damage may
occur.
IMPORTANT: Use separate circuit for each
power unit. Protect each circuit with time
delay fuse or circuit breaker. For single phase
208-230V, use 20 amp fuse. Three phase 208-
240V, use 20 amp fuse. For three phase 400V
(*E Model) and above, use 10 amp fuse. For
three phase 380V (*S Model) use 16 amp fuse.
For wiring see Fig. 21, Fig. 22, and Fig.22b. All
wiring must comply with NEC and all local
electrical codes.
Note: 60Hz. single phase motor CAN NOT be
run on 50Hz. line without a physical change in
the motor.
MOTOR OPERATING DATA TABLE - SINGLE PHASE
LINE VOLTAGE RUNNING MOTOR VOLTAGE RANGE
208-230V 50Hz. 197-253V
208-230V 60Hz. 197-253V
Note: 60Hz. Single phase motor CAN NOT be run on 50Hz.
line without a physical change in the motor.
Fig. 21
NOTE: Assure cord used for connection
between the overhead switch and power
unit is of the type specified in:
UL201, Sections 10.1.1.3 & 10.1.1.4
(Example: SO, G, STO) Size for 25 amp
circuit. See UL 201, Section 15 for proper
wiring requirements for this connection.
*Notes: E or S Model?
To find out if you have a E or S model Power Unit look at the 4th
letter from the end of your lift model number.
EXAMPLE: SPOA10E585 would be a E Model.
Model number can be found on a tag on the side of the lift.
M
230V
60Hz
1 Ø
Black
Green
White
Overhead
Limit Switch
Up
Switch
White
Disconnect
(If Required)
Black
Black
To Next Page
