Rotary SPOA9 Installation Instruction

5

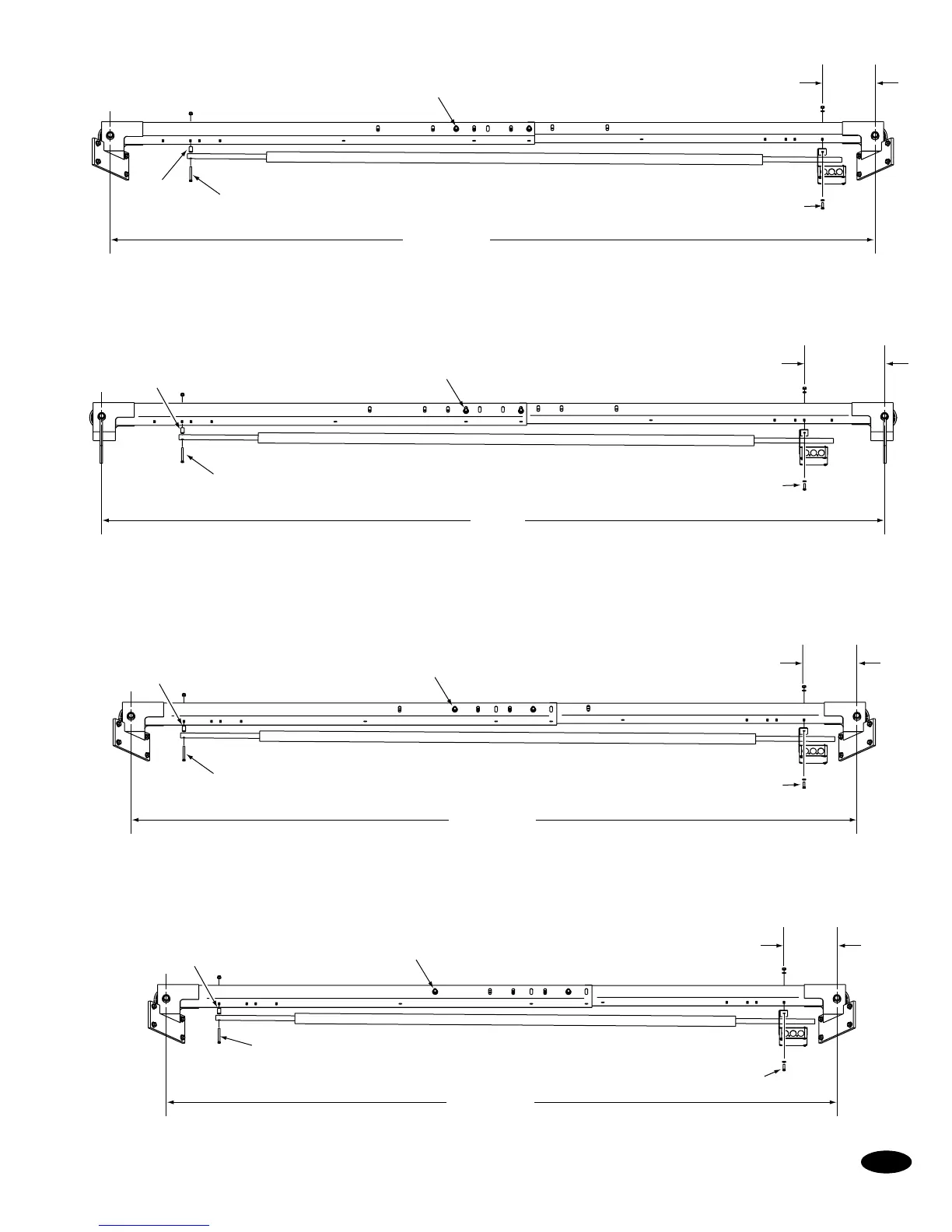

Fig. 6
SPOA7
3/8"-16NC x 3/4" HHCS
& Flanged Locknut
Spacer
1/4"-20NC x 2" HHCS
& 1/4" Locknut
1/4"-20NC x 3/4" HHCS, Star Lockwasher, and Nut
105-3/8"
7-3/4"
SPOA9
3/8"-16NC x 3/4" HHCS
& Flanged Locknut
1/4"-20NC x 2" HHCS
& 1/4" Locknut
Spacer
1/4"-20NC x 3/4" HHCS, Star Lockwasher, and Nut
111-3/8"
7-3/4"
SPO9
3/8"-16NC x 3/4" HHCS
& Flanged Locknut
1/4"-20NC x 2" HHCS
& 1/4" Locknut
1/4"-20NC x 3/4" HHCS, Star Lockwasher, and Nut
114"
11-3/4"
Spacer
SPOA7 Narrow Bay
3/8"-16NC x 3/4" HHCS
& Flanged Locknut
Spacer
1/4"-20NC x 2" HHCS & 1/4" Locknut
1/4"-20NC x 3/4" HHCS, Star Lockwasher, and Nut
97-3/8"
7-3/4"

Rotary SPOA9 Specifications

General

Brand	Rotary
Model	SPOA9
Category	Lifting Systems
Language	English
