3

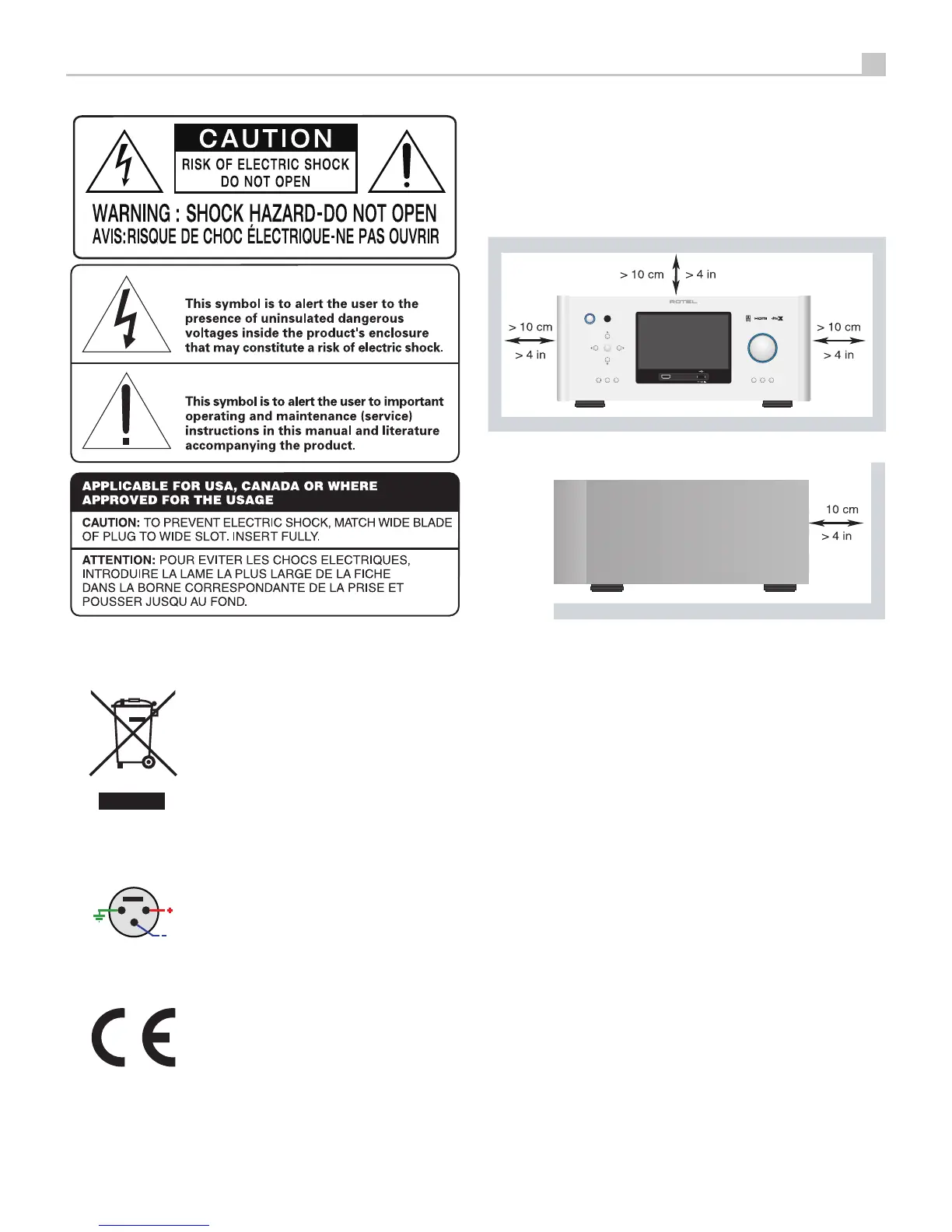

Rotel products are designed to comply with international
directives on the Restriction of Hazardous Substances
(RoHS) in electrical and electronic equipment and
the disposal of Waste Electrical and Electronic
Equipment (WEEE). The crossed wheelie bin symbol
indicates compliance and that the products must be
appropriately recycled or processed in accordance
with these directives.
RSP-1582
DISPLAY MUTESUR+INPUT BACKMENU
STANDBY
FUNCTION
ENTER
HDMI
2.1
RAP-1580
DISPLAY MUTE
SUR+
INPUT BACKMENU
STANDBY
FUNCTION
ENTER
HDMI
1
2
3
Pin Assignments
Balanced Audio (3 pole XLR):
Pin 1: Ground / Screen
Pin 2: In phase / +ve / Hot
Pin 3: Out of phase / -ve / Cold
