Rotel RAS-5000 - Afbeelding 1-2:Bedieningselementen en Aansluitingen; Figura 1-2: Controlli E Connessioni; Figur 1-2: Kontroller Och Anslutningar

4
RAS-5000 Amplied Streamer
POWER
RAS-5000
COAX/OPTeARCUSBSTREAMING AUX BTPC-USB
PHONES MENU ENTER
SERIAL NUMBER:
This device complies with Part 15 of the FCC Rules.
Its operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
(2) This device must accept any interference received,
including interference that may cause undesired operation.
SPEAKER IMPEDANCE 8 OHMS NOMINAL
CLASS 2 WIRING
BLUETOOTH WIFIWIFI
OPT
COAX
AUX
L
R
SPEAKER
RIGHT
+
LEFT
+
- -
NETWORKPC-USB USB
5V/2.0A
ONOFF
CAUTION :
Replace with same type
T10AL 250V fuse
AC FUSE: T10AL 250V
100-120V/220-240V~50/60Hz
SUB
OUT
PRE
OUTIN
Chromecast built-in is a trademark of Google LLC
8
9
0
-
=
q
w
e
r
u
o i
yt
p
12 3
4
5
6
7

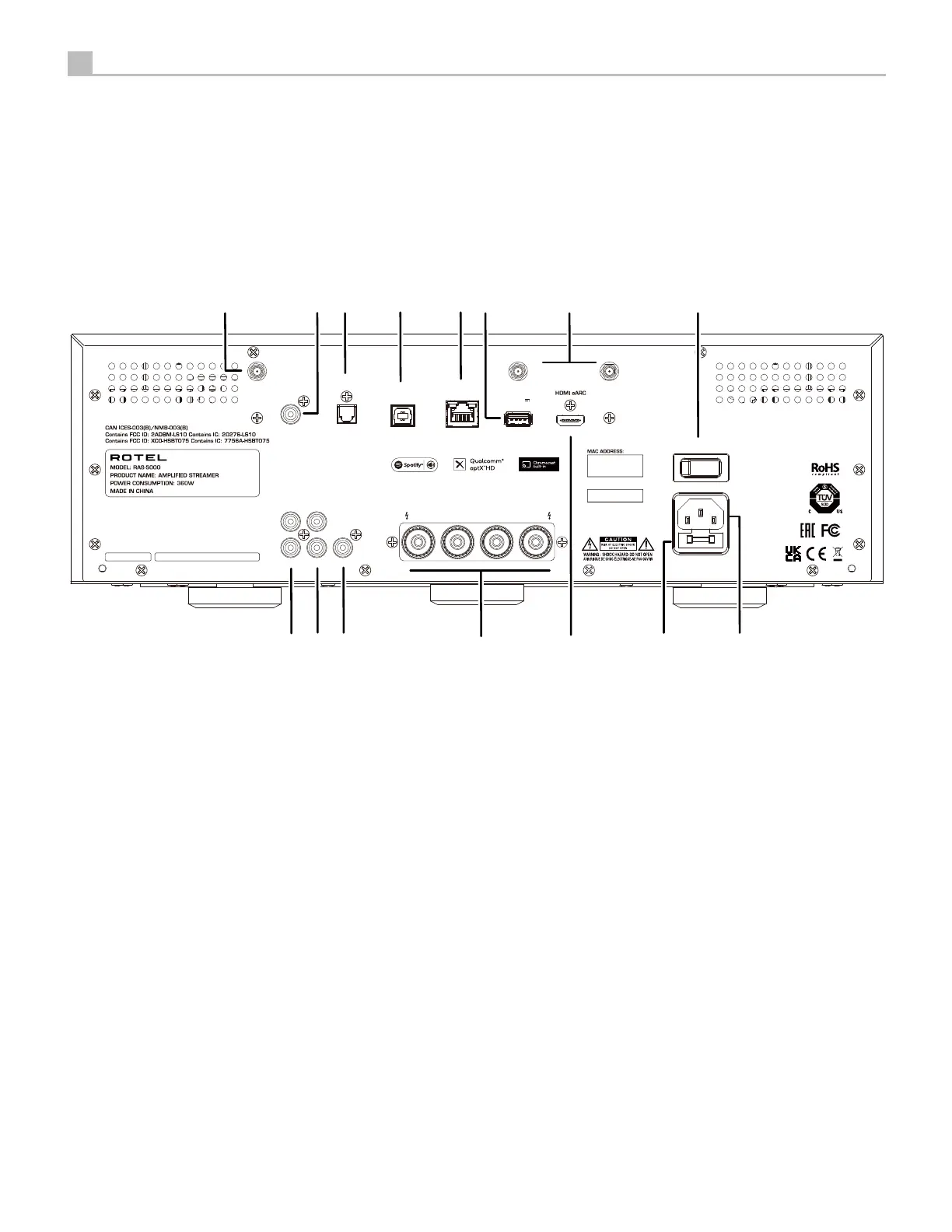

Figure 1-2: Controls and Connections
Commandes et Branchements
Bedienelemente und Anschlüsse
Controles y Conexiones
Controlli e connessioni
De bedieningsorganen en aansluitingen
Kontroller och anslutningar
Органы управления и разъемы
8
: Bluetooth Antenna
Use for wireless streaming via Bluetooth.
9
: COAX Input
0
: OPTICAL Input
-
: PC-USB input
=
: NETWORK port
q
: USB Port
Use for audio playback via Flash Drive.
w
: Wi-Fi Antenna
Use for wireless connection.
e
: Master Power Switch
r
: AUX input
Analog “line level” input.
t
: PRE Output
Variable analog output for connection to an

y
: SUB Output
Connect to a subwoofer.
u
: Speaker Connectors
i
: Fuse holder
o
: AC Power Inlet
p
: HDMI eARC Input
Connect to TV ARC HDMI connection to
receive 2-channel audio to RAS-5000.
