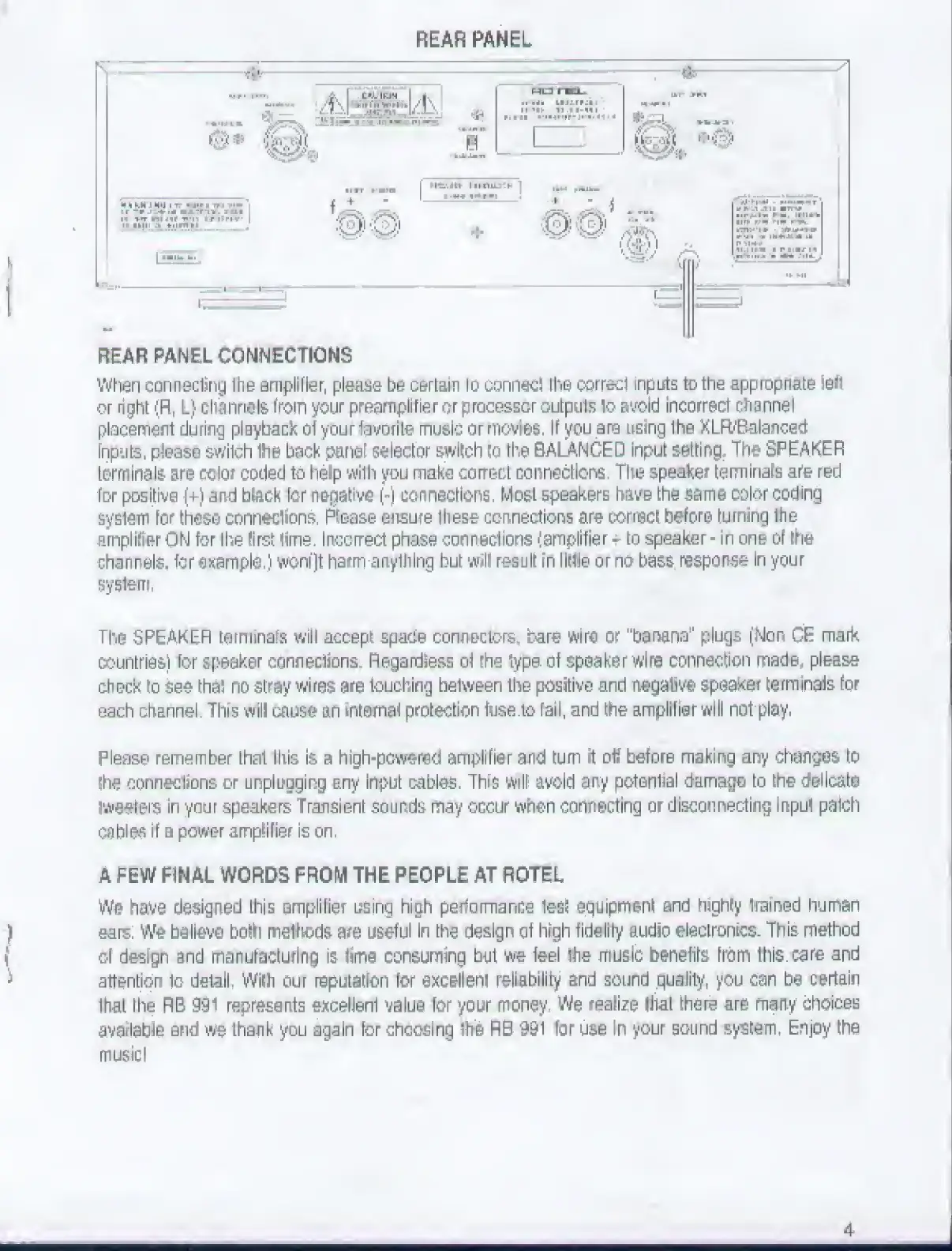

REAR PANEL
When connecting the amplifier, please be certain to conned the c>orreci inputs to the appropriate left
or right (R, L) channels from your preamplifier or procassor outputs to avoid incorrect channel
placement during playback of your favorite music orrnovies. if you are using the XIR/Balanced:
Inpuls, pJsasa sv/itch the beck panet selector switch to the BALANCED input settir^g. The SPEAKER
terminals are color coded to help with you make correct connections. The speaker terminals are red
for positive {-r-) ar>d black for negative (-) connections, Most speakers have the same color coding
system for these ccjnnedions, Ptease enauTe these connections are i^rnscl before turning Irie
amplilrer ON for the lirst lime. Incorrect phase cormecfiorrs (amplifier - to speaker ^ in one of Ihe
channels, for example.) wonfjt harm anytJilng but will result En tittle or no bass respoti'Se In your
sysfenr.
The SPEAKER temmafa will accept spade connectors, bare wire or "banana" plugs (Nar> CE mark
countries) for speaker connedicns. Regardless oi the type of speaker wire connection madGn please
check to see that no stray wires are touching between the positive and negative speaker tenrrinals for
each channel. This will cause an internal protection ftrsa to fail, and the amplifier will not play.
Please remember that this is a high-powered amplifier and turn it oft before makrng any changes to
ihe conneclions or unplugging any input cables. This wr.ll avoid any potantral damage to the delicate
iweetars in your speakers Transient sounds may occur when connecting i^r disconnecting Inpul patch
cables if a power amplifier Is on.
A FEW FINAL WORDS FROM THE PEOPLE AT ROTEL
We have designed this emplifier using high perfomance less equipmanl and highly 1rar:ned human
ears. We believe bolh mefhods are useful In the design of high fidelity audio electronics- This rnethod
of design and manufacturing Is lime consuming but we feel ihe music benefits from this care and
attention lo delalL With our reputatdn for excBlIeni reliabiJity and sound quaJify, you can be certain
that the RB 991 repressr^ts excellenl vaiue tor your money We realize lhat there are maity choices
availabis and wo thank you again for choosing the RB 991 tor use in your sound system. Enjoy the
musici
