6.4 Analog Output Wiring
Platinum PRO has an analog output card (C-P3-RAOC10) with 10 outputs, used to drive external units
controlled by 0 – 10 VDC. The analog outputs card consists of surge and lightening protection circuits
and does not require external protections.
CAUTION Connect every analog output device's shield to the controller's safety ground!

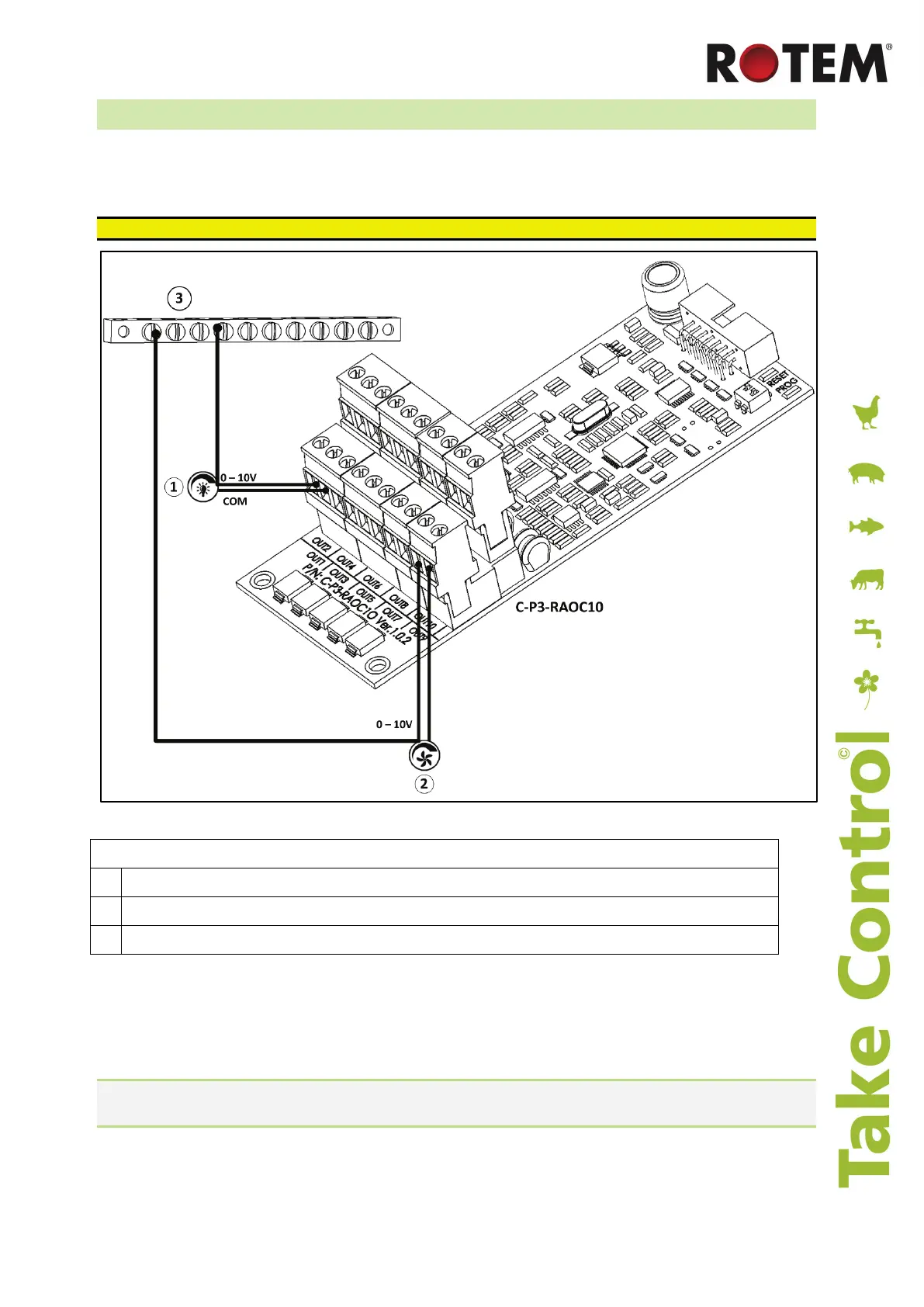

Figure 21: C-RAOC10 Wiring
Figure 21 key
1 Output 1: Light dimmer
2 Output 9: Variable speed fan
3 Ground strip
Examples of Analog Output Devices:
• Variable Speed Fans
• Stir Fans
• Light Dimmer
NOTE: The above drawing is only an example of many possible wiring diagrams. Your particular
installation may differ.
