7 Platinum Controllers | 6.0X
3.2 Layout
The following illustration displays the main elements in Platinum Pro units.

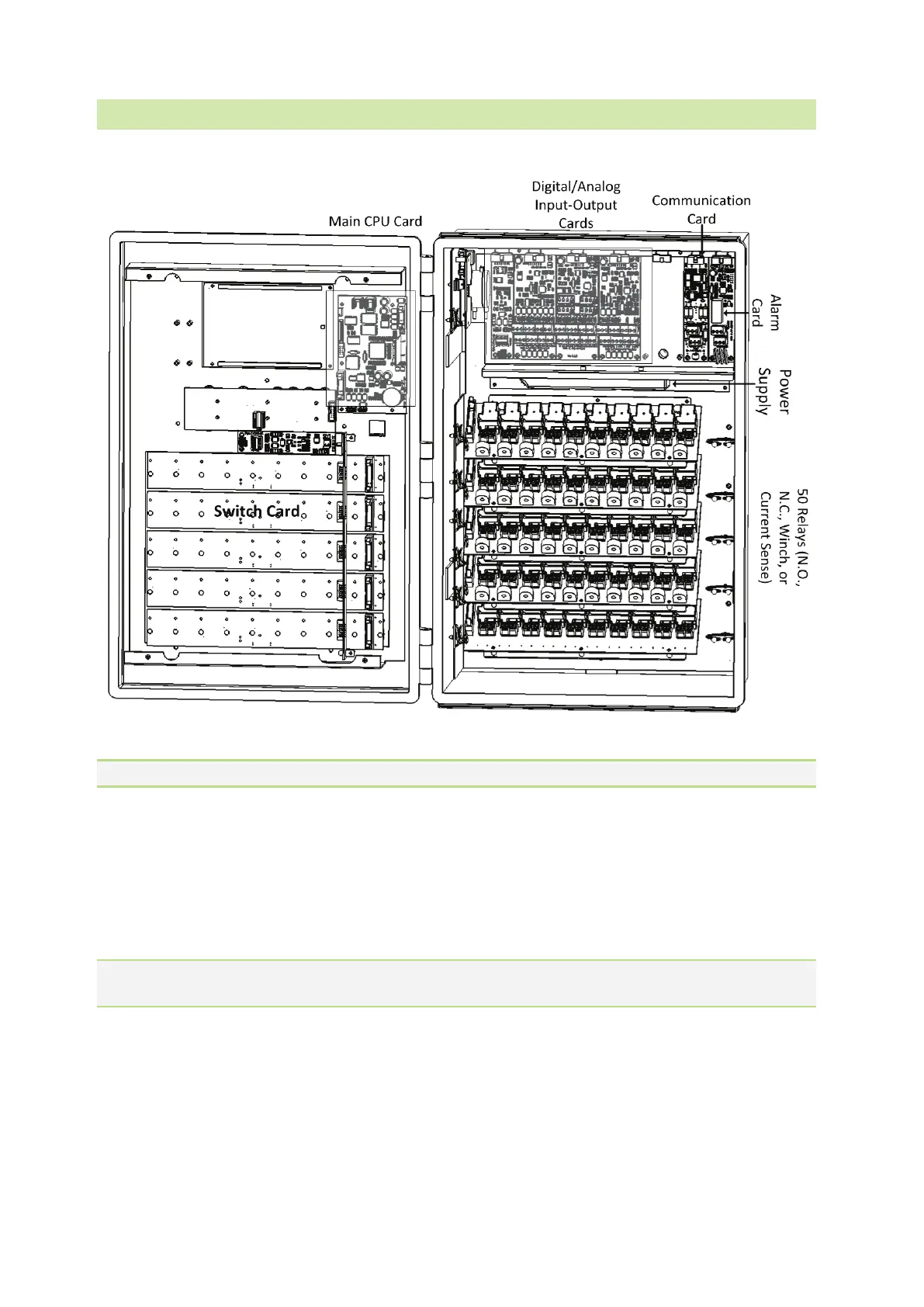

Figure 1: Platinum Pro Layout
NOTE: Figure 1 is an example layout. Each installation can differ.
Platinum PRO supports:
● Analog input, digital input, analog output cards
● 1 x Platinum Extension unit
● 4 x Rotem Light Dimmers (RLD)
● 4 X Rotem Digital Thermostats (RDT-5)2 x Rotem Scale Units
● 1 x HUB-4
NOTE: This manual provides wiring instructions for the cards. Refer to the products respective
manuals for installation instructions.
