4.2 Drilling
Drill holes on the side and bottom of controller box according to the steps defined below. Use these
holes to route the low and high voltage cables.
CAUTION Make sure not to damage cards when drilling holes. Locate holes properly before
drilling!
1. Drill a hole on the right side of the controller box. Verify that the low voltage cables go through
the hole properly.

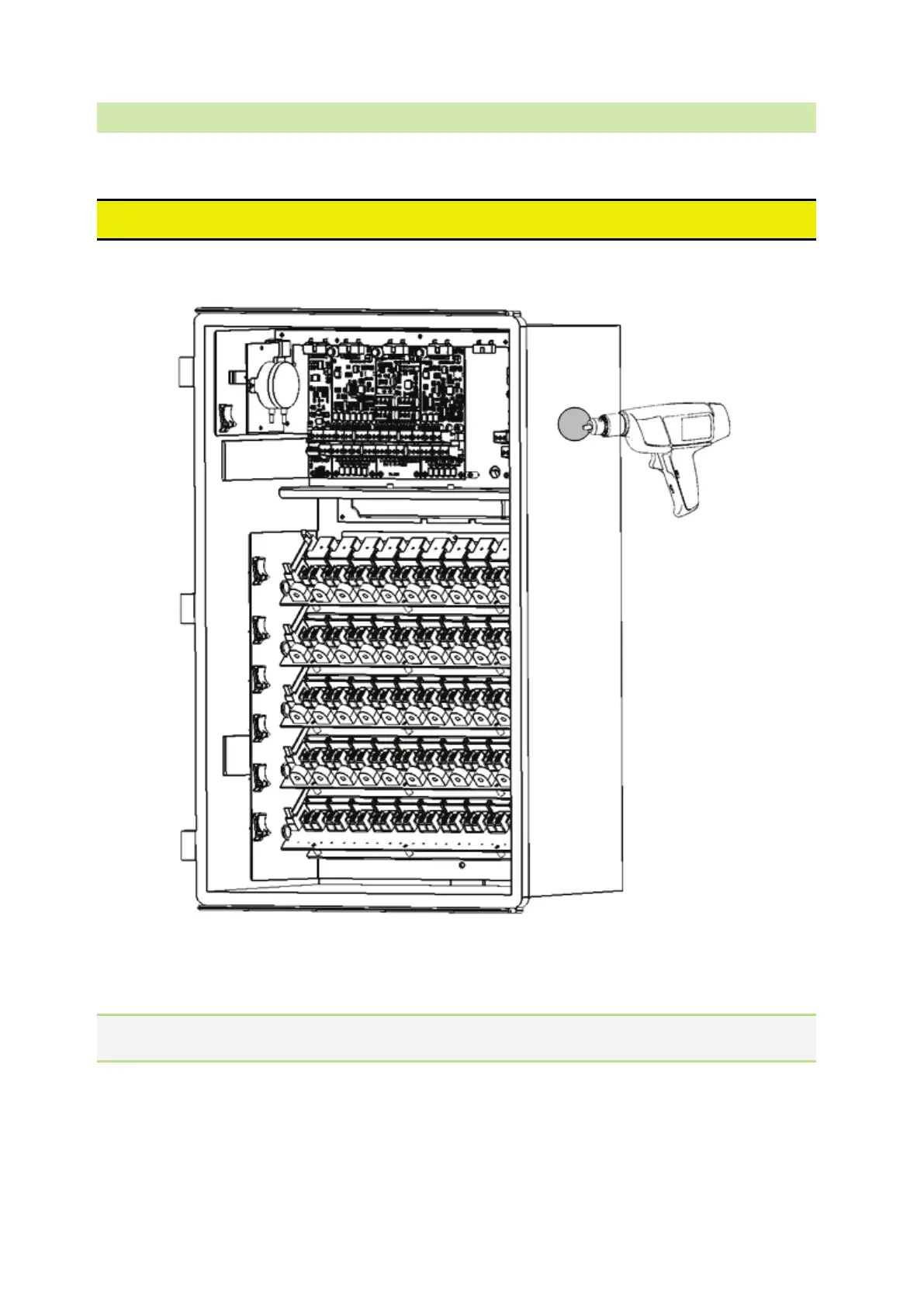

Figure 2: Drilling on the Side
2. Drill a hole on the bottom side of the controller box. Verify that the high voltage cables being
used fit through the hole properly.
NOTE: Rotem recommends drilling at least two (2) holes, placed as close to the front edge as
possible (to avoid crowding the wiring).
To Next Page
