2 x Product description
7
BA ROTEX A1 BO - 10/2007
2 Product description
2.1 Boiler design and components
A1 BO 15bio / A1 BO 20i A1 BO 27i / A1 BO 35i A1 Schematic drawing

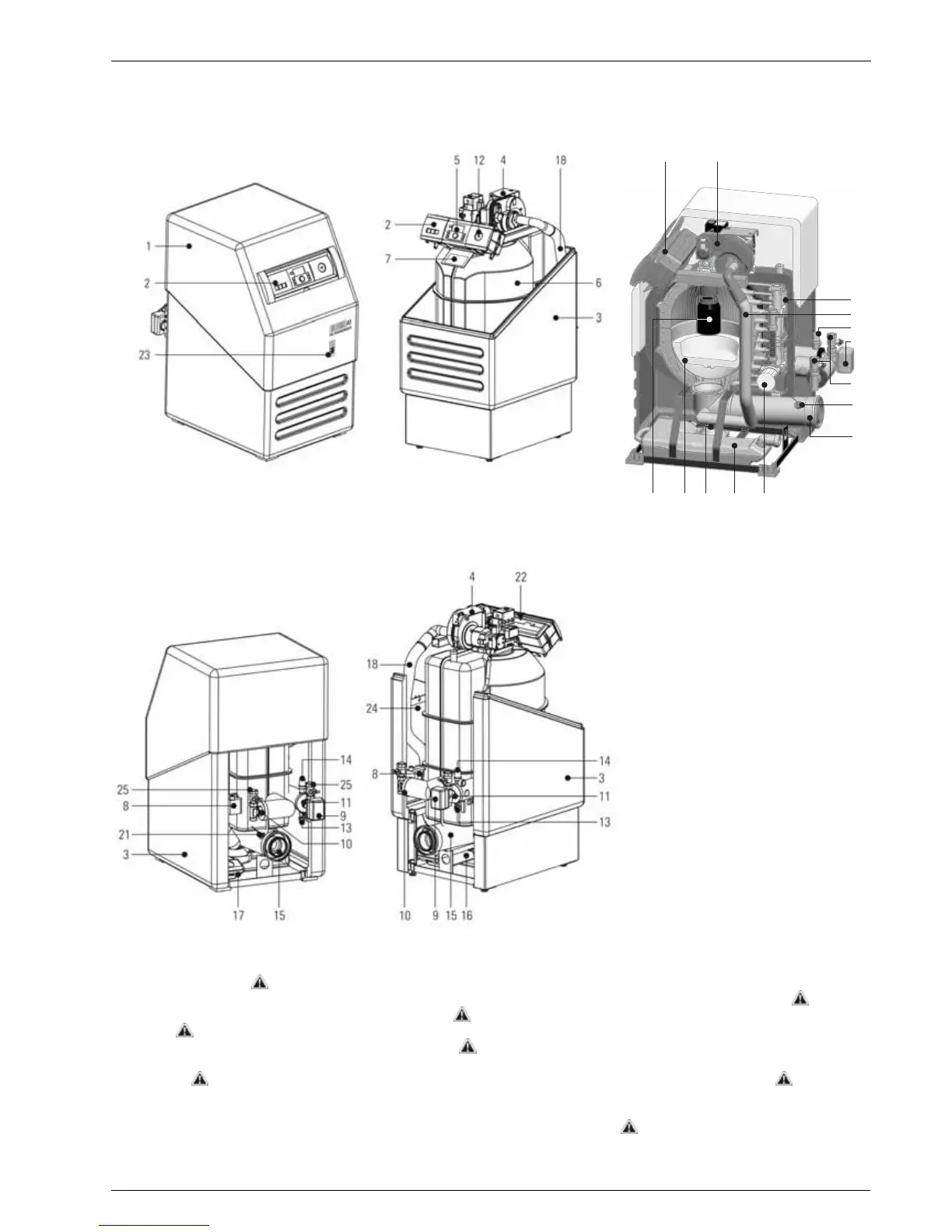

Fig. 2-1 Boiler components – View from the front Fig. 2-2 Diagram A1-boiler
A1 BO 15bio / A1 BO 20i A1 BO 27i / A1 BO 35i
Fig. 2-3 Boiler components – View from the back
1 Sound insulation hood
2 Boiler control panel
3 Boiler panelling
4 Burner
5 Controller
6 Boiler main body with heat and sound
insulation
7 Type plate with manufacture number
8 Circulation pump
9 3-way diverter valve
10 Heater return flow (cold)
11 Heating flow (hot)
12 Manometer
13 Filling and draining cock
14 Safety valve
15 Flue gas/supply air connection
16 Condensate treatment unit
17 Condensate drain
18 Air supply hose
19 Flame tube
20 Combustion chamber insert
21 Flue gas temperature sensor
22 Circuit board (electrical connections)
23 Stickers for identification of the usable oil quality
24 Document pouch
25 Ball stopcock
26 Flow temperature sensor
27 Return flow temperature sensor
Safety devices
2
4
18
26
14
9
8
21
15
16
17
20
19
25
