Rotex A1 BO 15bio User Manual

2 x Product description
9
BA ROTEX A1 BO - 10/2007

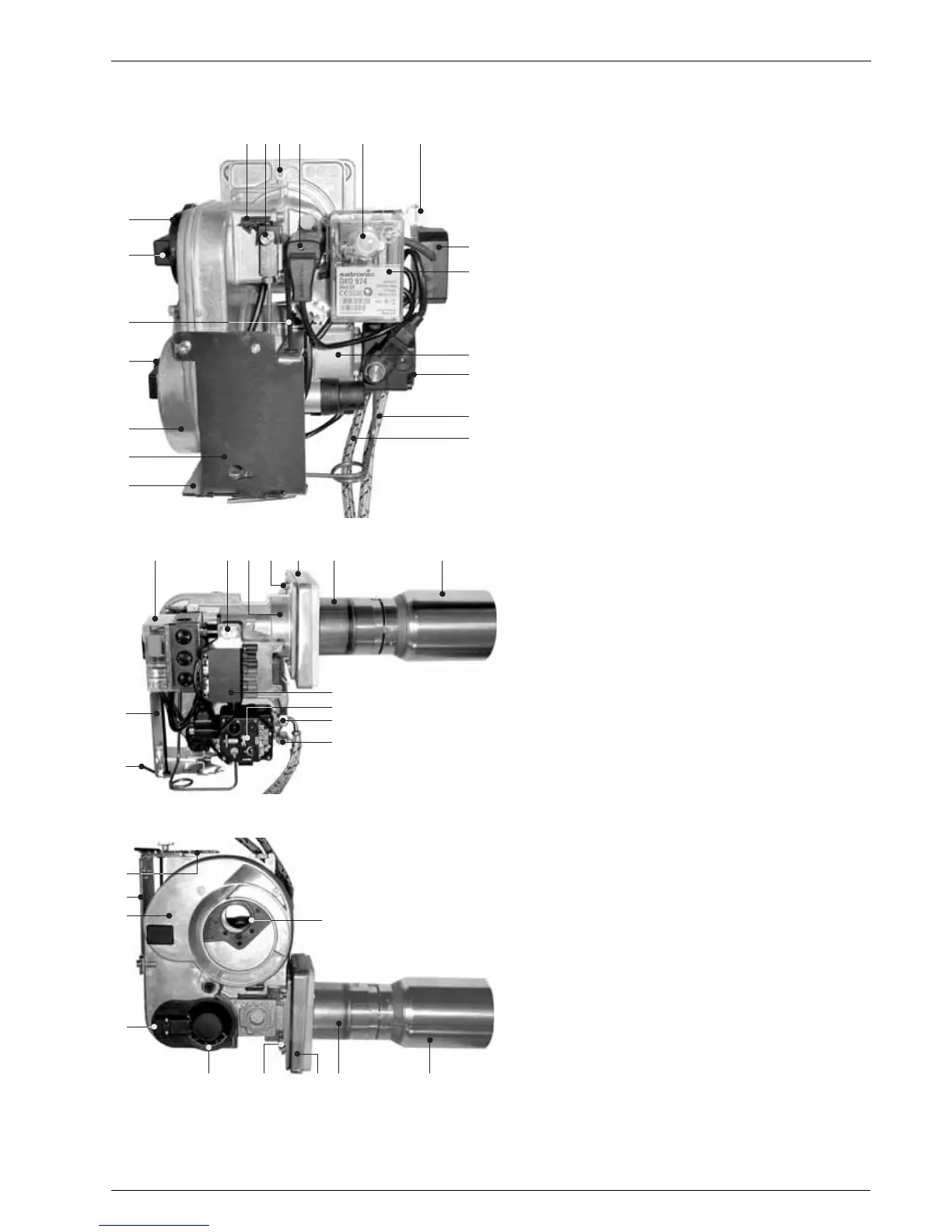

2.3 Oil burner
1 Automatic oil firing unit
2 Oil pump
3 Suction line connection
4 Return line connection
5 Adjusting screw for recirculation opening
6 Scale of recirculation opening
7 Scale of air throttle
8 Adjusting screw for air throttle
9 Reset button for oil burner
10 Holder for service position
11 Blue Flame Meter
12 Service Allen key
13 Burner flange with seal
14 Flame tube
15 Flame monitor
16 Connection for remote unlocking
17 Connector socket, 7 pin
18 Fan rigid in compression
19 Air supply connector
20 Electric motor
21 Service screw
22 Recirculation tube
23 Nozzle connection cover
Fig. 2-4 Oil burner top view (rear view)
Fig. 2-5 Oil burner – Side view from left
Fig. 2-6 Oil burner – Side view from right
11
10
12
8
7
6
5
21
15
9
1
20
2
4
3
17
19
18
16
10
12
17
1
16
21
13
22
14
2
3
4
23
11
10
18
8
7
21
13
22
14
19

Rotex A1 BO 15bio Specifications

General

Brand	Rotex
Model	A1 BO 15bio
Category	Boiler
Language	English
