Rotex GSU 320 - 7 Technical Data; Dimensions and Connection Dimensions

7 x Technical Data
36
BA ROTEX GSU - 09/2007
7 Technical data
7.1 Dimensions and connection dimensions
Tab. 7-1 Dimensions table for assembly dimensions (relating to Fig 7-1, Fig 7-2)
A View from the side
B View from the front
C View from above

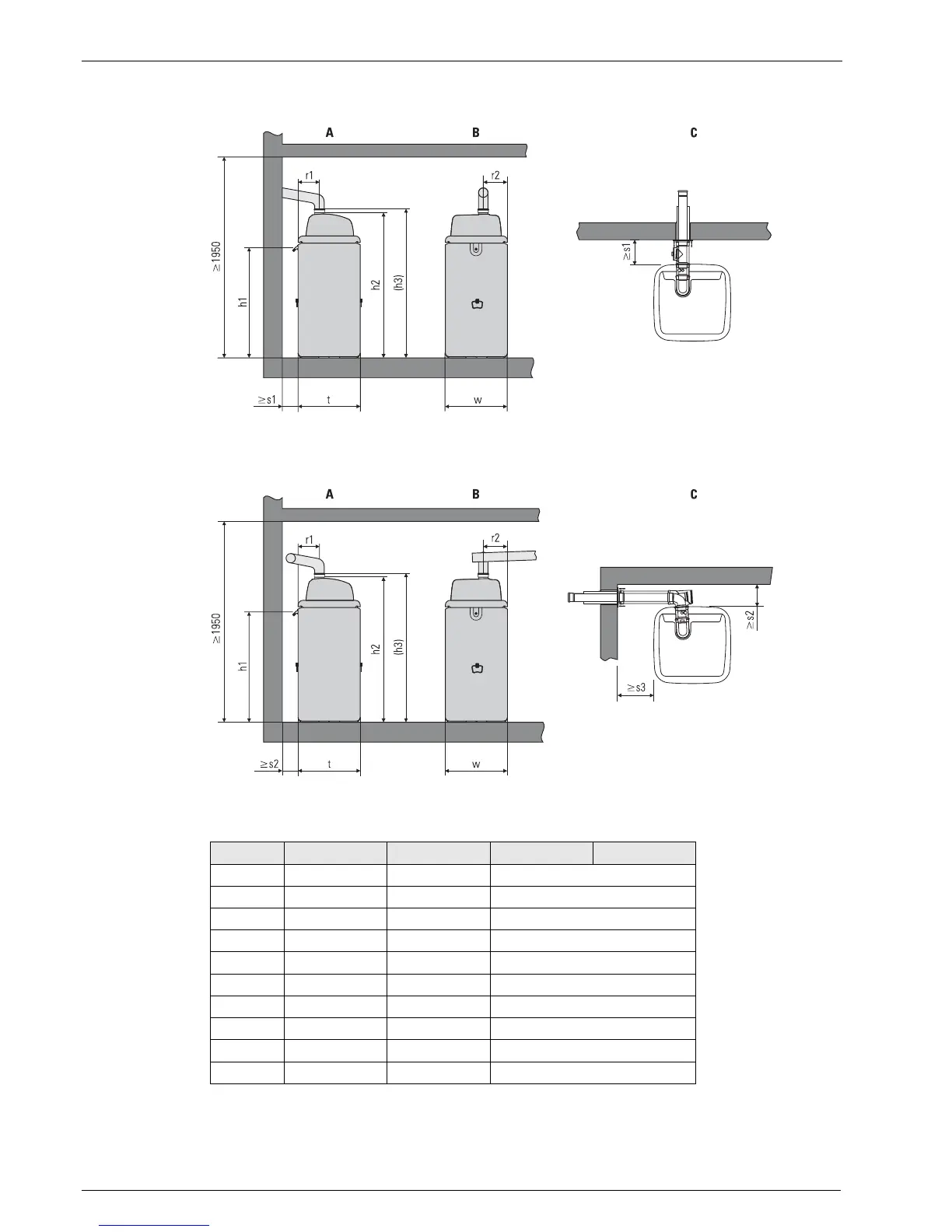

Figure 7-1 Installation dimensions for flue gas connection towards rear (for values, see Tab. 7-1)
A View from the side
B View from the front
C View from above
Figure 7-2 Installation dimensions for flue gas connection on the side (for values, see Tab. 7-1)
Dimension GSU 320 GSU 520S GSU 530S GSU 535
h1 1404 1384 1384
h2 1869 1846 1828
h3 1918 1896 1878
r1 202 299 264
r2 203 284 284
s1 213 115 150
s2 228 130 165
s3 377 295 295
t 615 780 780
w 590 780 780
