7 x Technical Data
41
BA ROTEX GSU - 09/2007
* The points indicated identify the factory settings

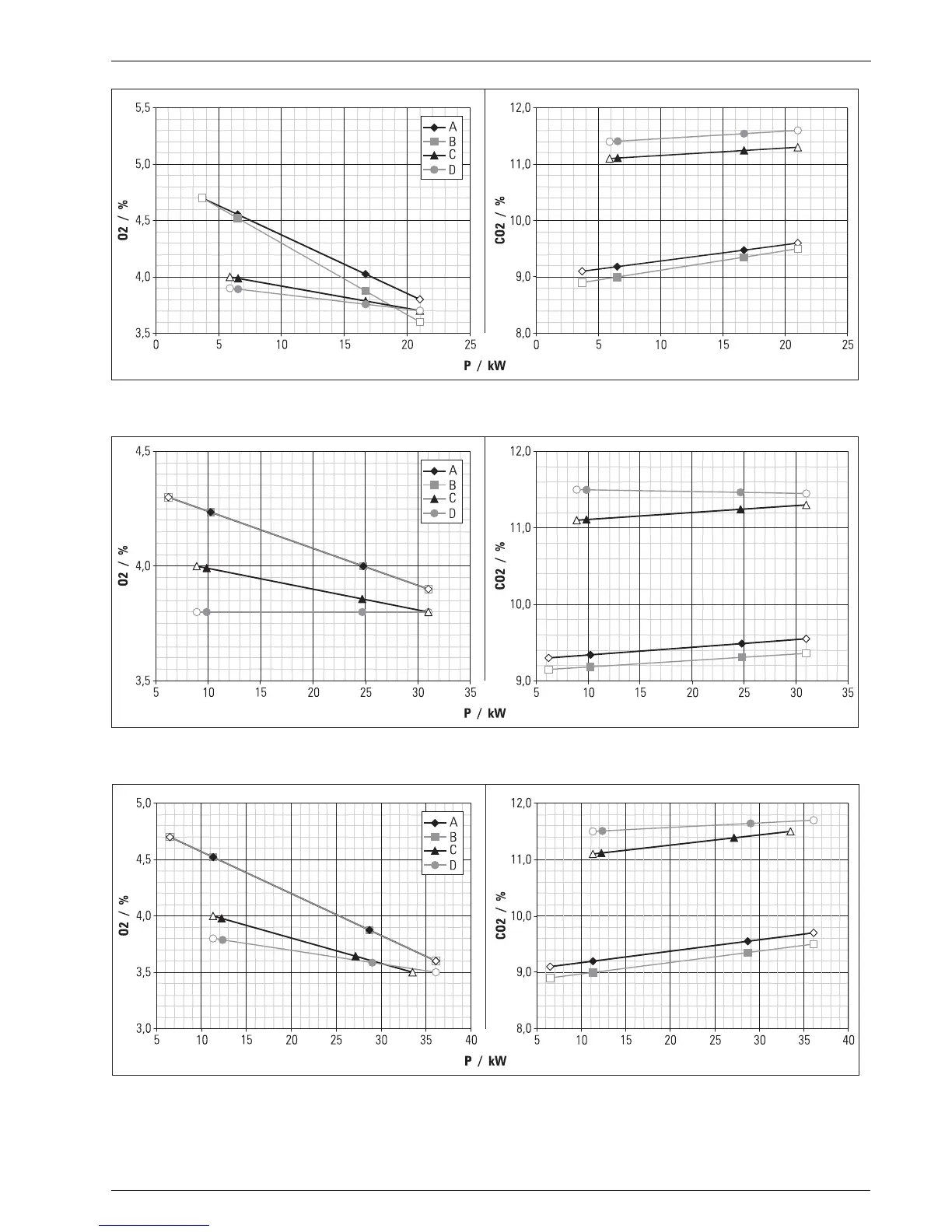

Figure 7-8 Flue gas setpoint values for burner adjustment with reference to burner output P for GSU 320 and GSU 520S, O
2
content or CO
2
content*
Figure 7-9 Flue gas setpoint values for burner adjustment with reference to burner output P for GSU 530S, O
2
content or CO
2
content*
Figure 7-10 Flue gas setpoint values for burner adjustment with reference to burner output P for GSU 535, O
2
content or CO
2
content*
