RTK UC625 series User Manual

RTK Series UC625 Annunciator
37
Higher Voltage Powered Inputs
If specified at the time of order RTK can supply the unit suitable for use with high voltage signal
inputs there are 3 options available
• 48VAC/DC
• 110VAC/DC
• 250VAC/DC.
Fuse F1 on the rear of the annunciator is used to protect the H.V. signal supply.
+VC is internally linked to ALL of the “C” terminals within the annunciator.
The “C” terminal is provided for Customer use to distribute the + H.V. signal supply to the associated
field contacts.
The user is able to wire a powered Input direct to the associated input terminal as long as the OV of
the Customers supply is connected to terminal OVC on the UC625 annunciator.
Terminal OVC is internally linked as a common return for all channels.
ALARM HORN B OUTPUT
SUPPLY 1 FAILURE ALARM
SUPPLY 2 FAILURE ALARM
SUPPLY 1
ALARM HORN A OUTPUT
COMMON ALARM OUTPUT
YC
R
ST
A
M
YA
+VC
0VOP
0VOP
0VC
+VOP
RELAY OUTPUTS
CHANNEL NO
R4
R2
R3
R1
SIGNAL SUPPLY FAILURE
S1
HNA
HNB
FC
GP
+/L
-/N
-/N
+/L
S2
YB
XA
R3
R4
R2
R1
XB
R3
R4
R2
R1
XC
YD
PB INPUTS PB INPUTS
YC
M
R
ST
A
OVOP
TEST
ACK
MUTE
RESET
EXPANSION
SIGNAL SUPPLY
CUSTOMERS H.V.
SUPPLY 2
24VDC OUTPUT
70mA MAX
S1R
S2R
CONTACTS RATED AT 2A @ 24VDC - 0.5A @ 125VDC
HV POWERED INPUTS
5 - 8
4
3
1 - 4
4
3
C
1
2
C
1
2
9 - 12
4
3
C
1
2
INTERNAL H.V. SIGNAL SUPPLY DISTRIBUTION

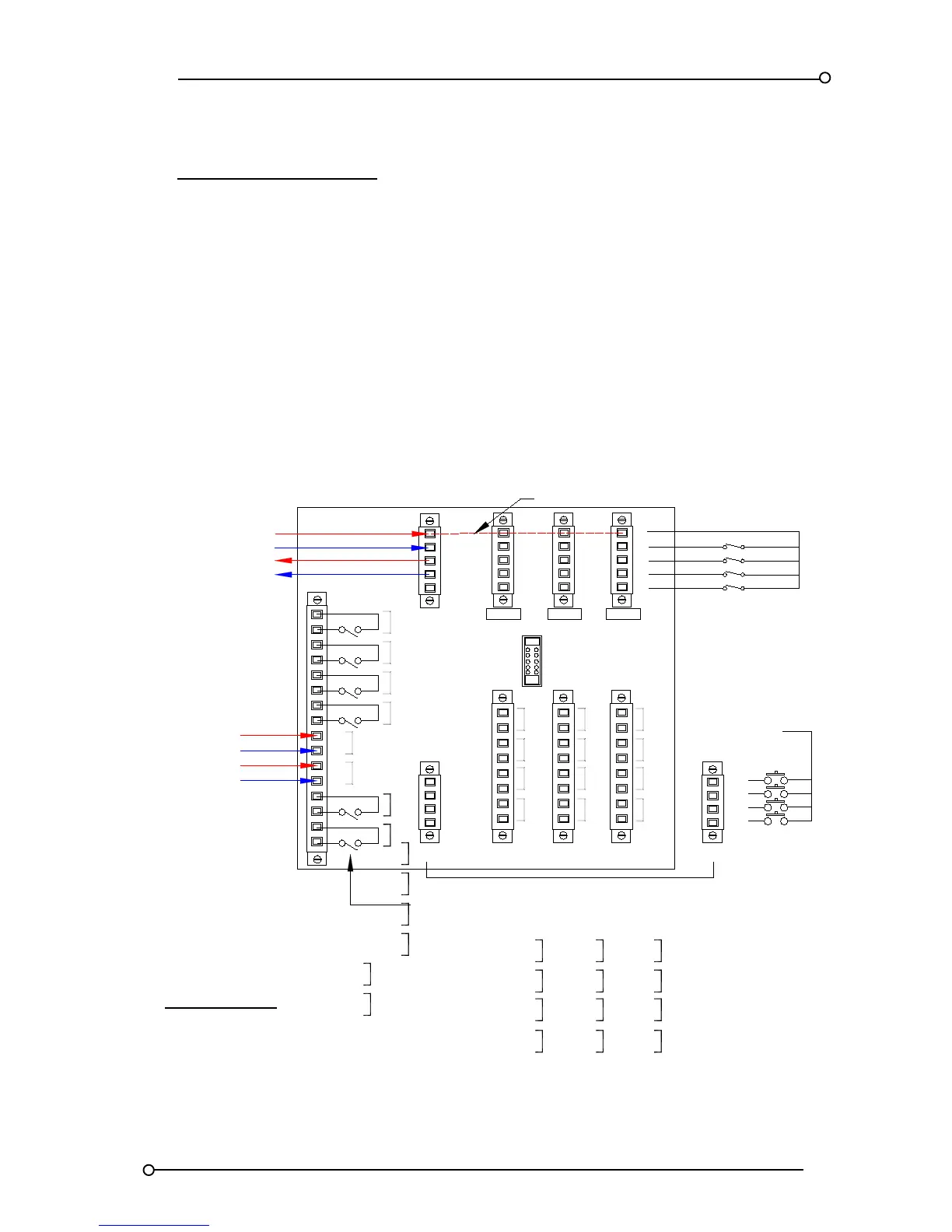

48/110/250 VAC/DC Powered Signal Input Connections
Figure 8
Important note:-
In standard UC625 Models RTK provide +24VDC as a signal supply voltage and this voltage is
available if either the primary or aux supply are present on the annunciator.
If the Customer is using an external H.V. signal supply this supply must be available for use when
either the primary and aux supply is available for the unit to function correctly.
