ES-2310C User Manual
Publication date: Aug., 2010
Revision A5
98
Function name:
Aggregator View
Function description:
To display the current port trunking information from the aggregator point of
view.
Parameter description:
Aggregator:
It shows the aggregator ID (from 1 to 10) of every port. In fact, every port
is also an aggregator, and its own aggregator ID is the same as its own
Port No..
Method:
Show the method a port uses to aggregate with other ports.
Member Ports:
Show all member ports of an aggregator (port).
Ready Ports:
Show only the ready member ports within an aggregator (port).

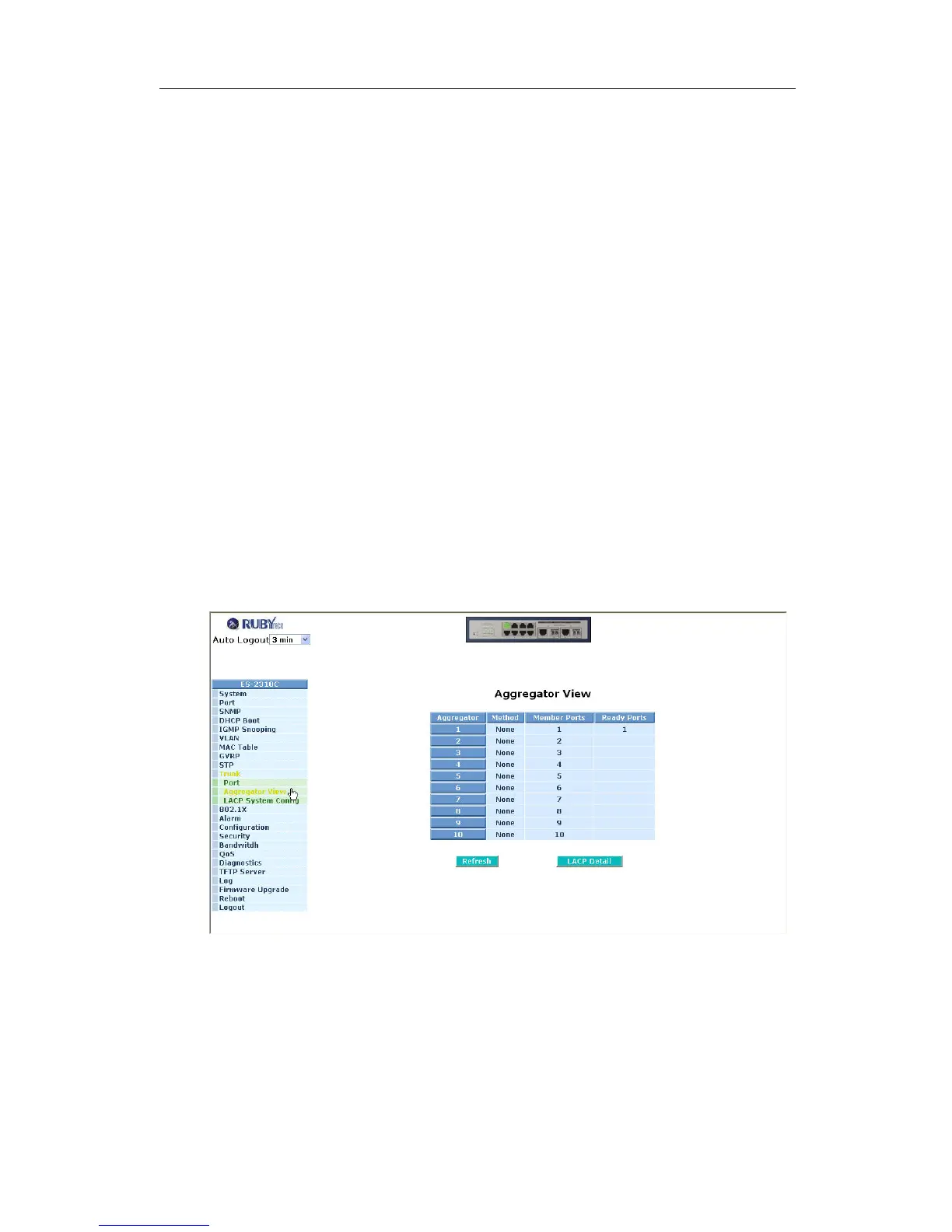

Fig.3-38
