ES-2310C User Manual
Publication date: Aug., 2010
Revision A5
26
2-2. Typical Applications
The ES-2310C implements 8 Fast Ethernet TP ports with auto MDIX and 2
Gigabit dual media ports with SFP for removable module supported comprehensive
fiber types of connection, including LC, BiDi LC for SFP. For more details on the
specification of the switch, please refer to Appendix A.
The switch is suitable for the following applications.
⎯ Central Site/Remote site application is used in carrier or ISP (See Fig. 2-13)
⎯ Peer-to-peer application is used in two remote offices (See Fig. 2-14)
⎯ Office network(See Fig. 2-15)

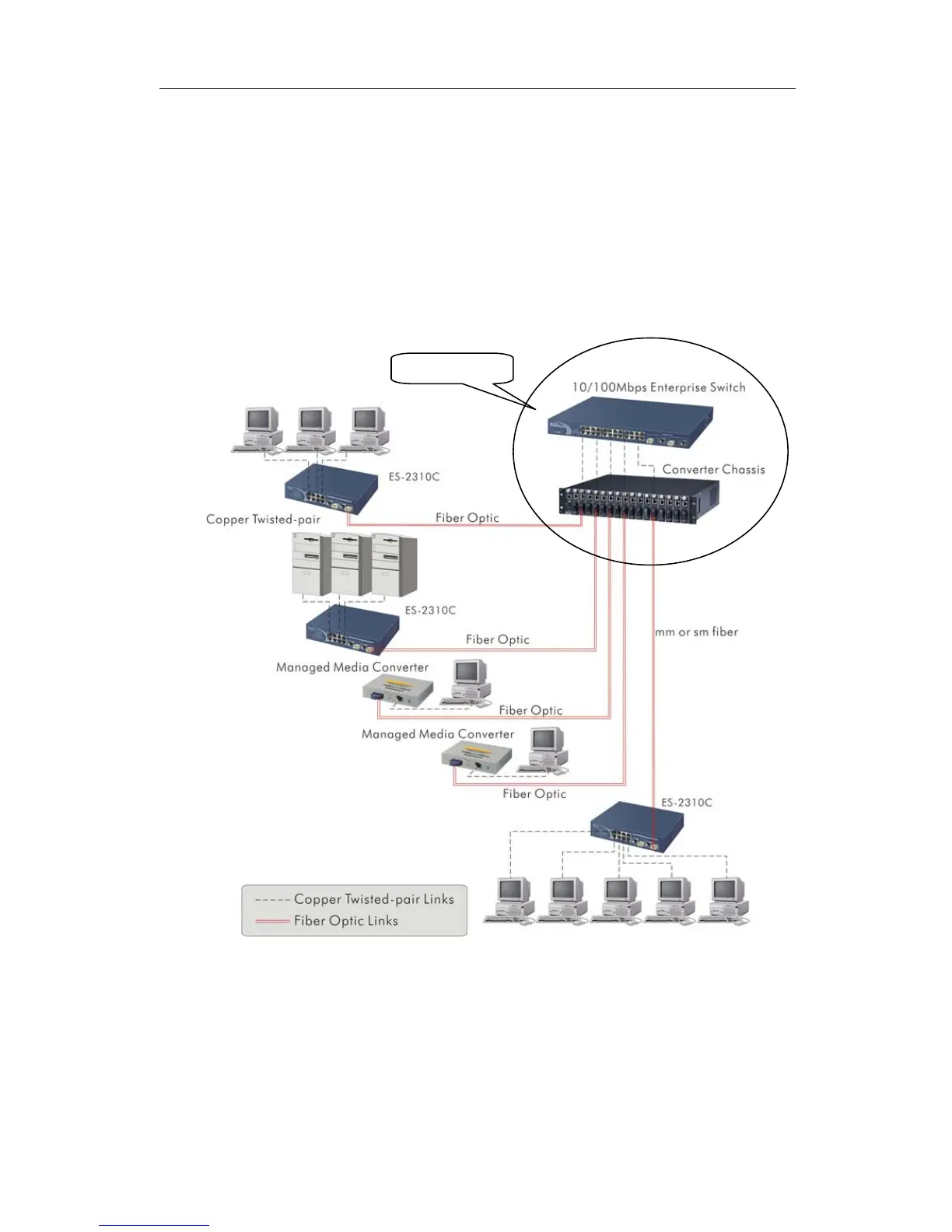

Fig. 2-13 is a system wide basic reference connection diagram. This diagram
demonstrates how the switch connects with other network devices and hosts.
Fig. 2-13 Network Connection between Remote Site and Central Site
Central Site
To Next Page
