1-5. View of the Optional Modules
In the switch, Port 9, 10 includes two types of media --- TP and SFP Fiber
(LC, BiDi LC…); this port supports 10/100/1000Mbps TP or 1000Mbps SFP Fiber
with auto-detected function. 1000Mbps SFP Fiber transceiver is used for high-
speed connection expansion; the following are optional SFP types provided for the
switch:
⎯ 1000Mbps LC, MM, SFP Fiber transceiver (SFP.LC)
⎯ 1000Mbps LC, SM 10km, SFP Fiber transceiver (SFP.LC.S10)
⎯ 1000Mbps LC, SM 30km, SFP Fiber transceiver (SFP.LC.S30)
⎯ 1000Mbps LC, SM 50km, SFP Fiber transceiver (SFP.LC.S50)
⎯ 1000Mbps BiDi LC, type 1, SM 20km, SFP Fiber WDM transceiver ,
1310nm (SFP.BL3.S20)
⎯ 1000Mbps BiDi LC, type 2, SM 20km, SFP Fiber WDM transceiver
1550nm (SFP.BL5.S20)

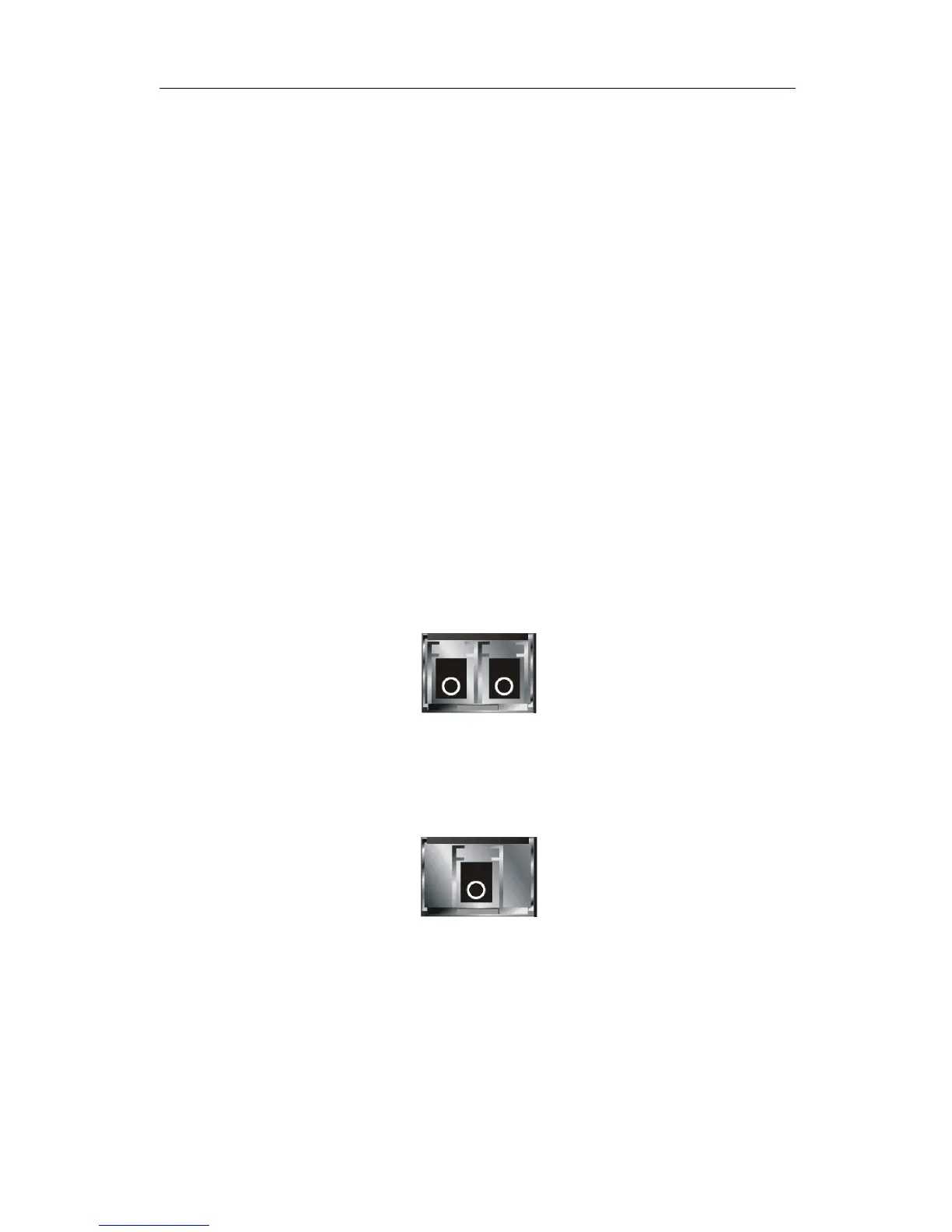

Fig. 1-4 Front View of 1000Base-SX/LX LC, SFP Fiber Transceiver
Fig. 1-5 Front View of 1000Base-LX BiDi LC, SFP Fiber Transceiver
