Installing the AP
7055 Physical Installation
Ruckus Wireless Indoor AP 100.2.0 User Guide, 800-70892-001 Rev A 99
Using the 110 Punch Down Block
CAUTION! Do not connect both the Punch-down block and the Uplink port to a
network. Only one connection can be used at a time.
If you prefer to use the 110 Punch-down block connector rather than the RJ-45
connector for power and network connectivity, refer to the following diagram for
wiring details.

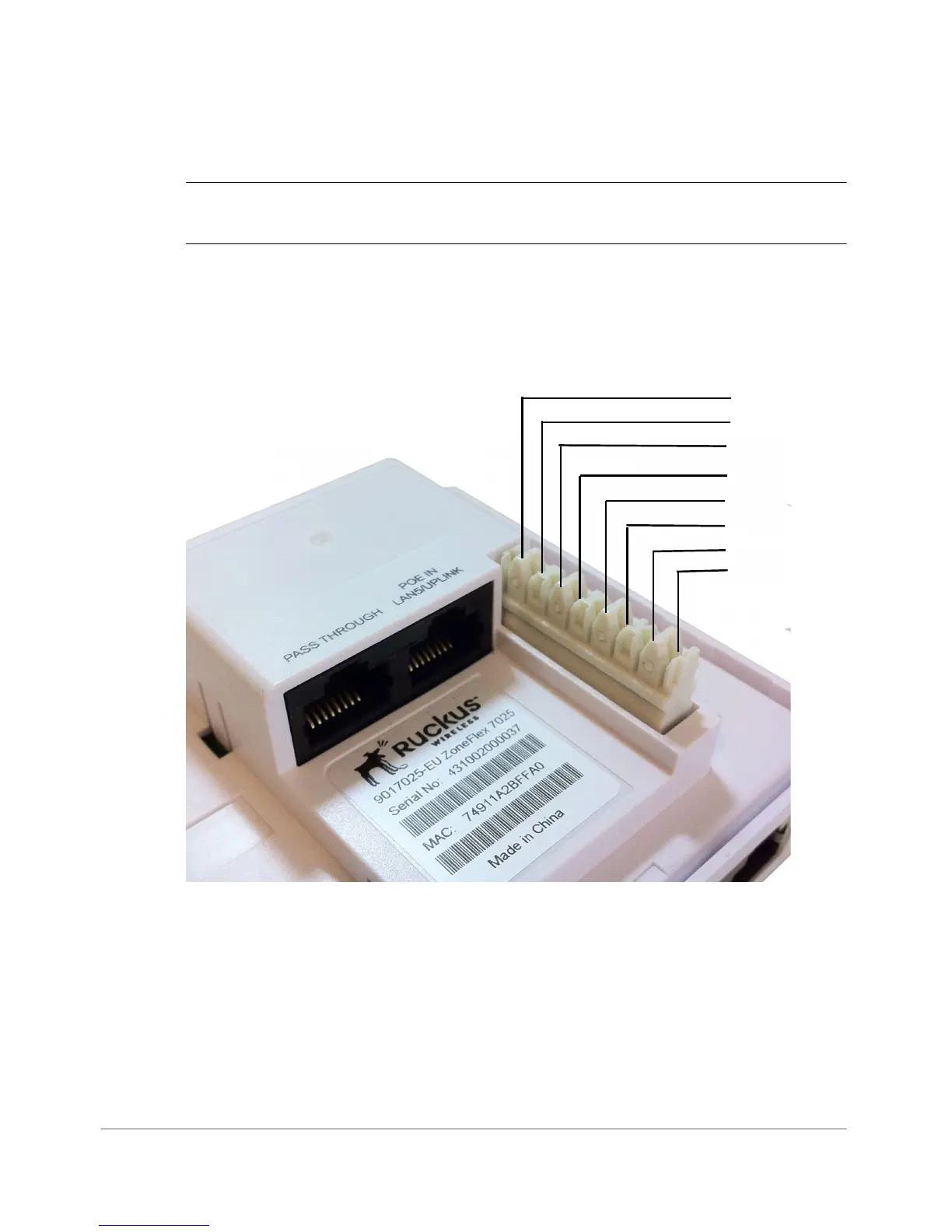

Figure 44. 7055 AP punch-down block wiring
White/Orange
Orange
White/Green
Blue
White/Blue
Green
White/Brown
Brown

Ruckus Wireless ZoneFlex 7372 Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.484 GHz
Number of users	- user(s)
Channel bandwidth	20 MHz
Channels quantity	13 channels
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Ethernet LAN (RJ-45) ports	2
Security algorithms	802.1x RADIUS, WEP, WPA-PSK, WPA-TKIP, WPA2-AES
Power consumption (typical)	3.2 W
Internal	No
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Width	158 mm
Height	40 mm
Weight	350 g
