Ruffneck AH-12A - Parts List; Ah-12 A, Ah-16 A, Ah-20 A, Ah-24 A

12
Parts List

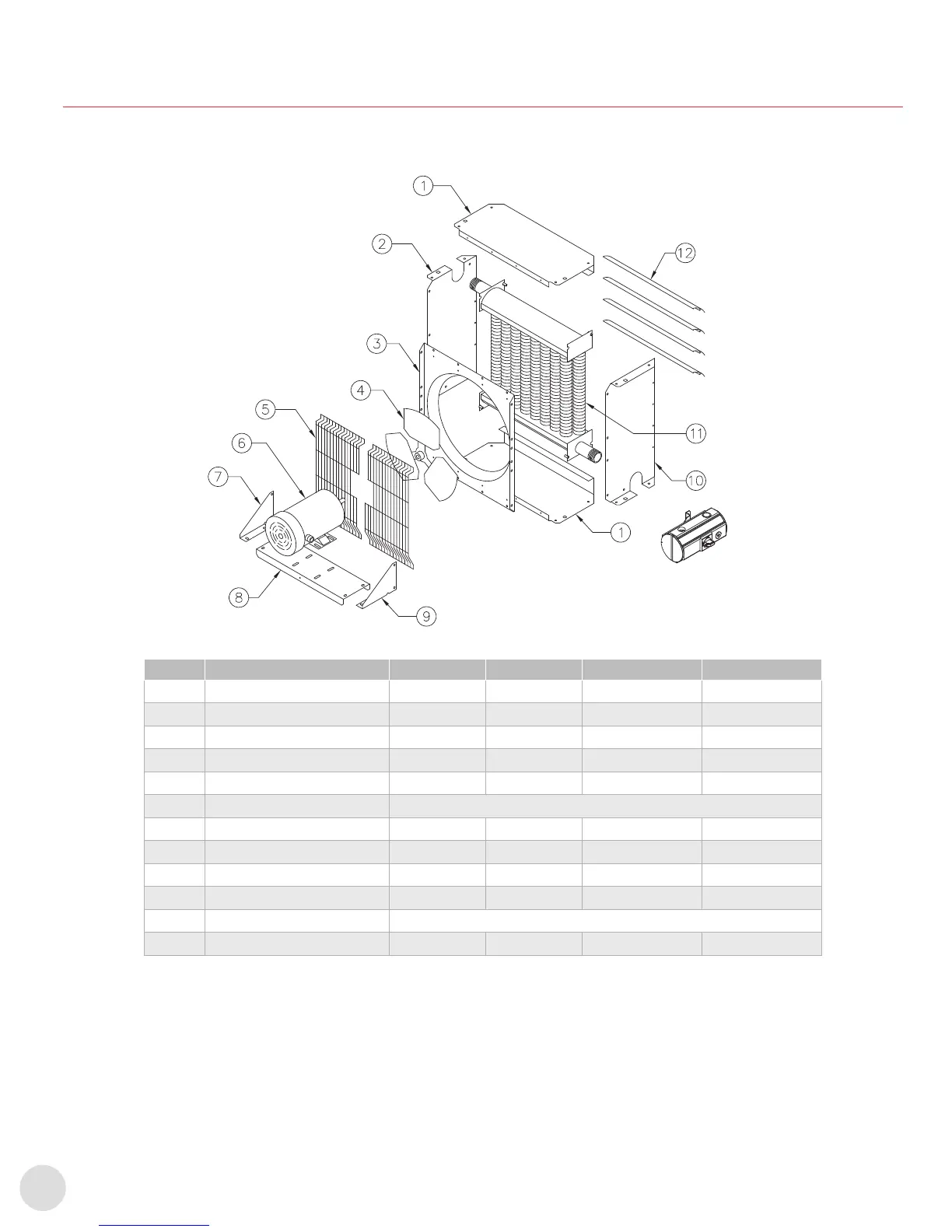

F. PARTS LIST
F.1 AH-12A, AH-16A, AH-20A, AH-24A
Item Description AH-12A AH-16A AH - 20A AH-24A
1 Panel, AH Top/Bottom 5378 5382 5386 5390
2 Panel, AH Right Side 5376 5380 5384 5388
3 Panel, AH Shroud 5379 5383 5387 5391
4 Fan 11284 5449 5450 5451
5 Fan Guard (half) 4087 4088 4089 5396
6 Motor ***
7 Bracket, Motor Mount Right 3789 3789 3789 3789
8 Channel, Motor Mount 3785 3787 3787 5433
9 Bracket, Motor Mount Left 3788 3788 3788 3788
10 Panel, AH Left Side 5377 5381 5385 5389
11 Heat Exchanger **
12 Kit, Louver (c/w screws) 4075 4076 4077 5741
** Provide complete model and serial number of heater when ordering replacement heat exchanger.
*** Provide motor voltage, phase, horsepower and service classication when ordering replacement motor.
Note: For items not shown, contact factory.
For disconnect parts list, see F.3, page14
