Ruffneck AH-12A - XS40 Disconnect; F.3 XS40 Disconnect

14
Parts List

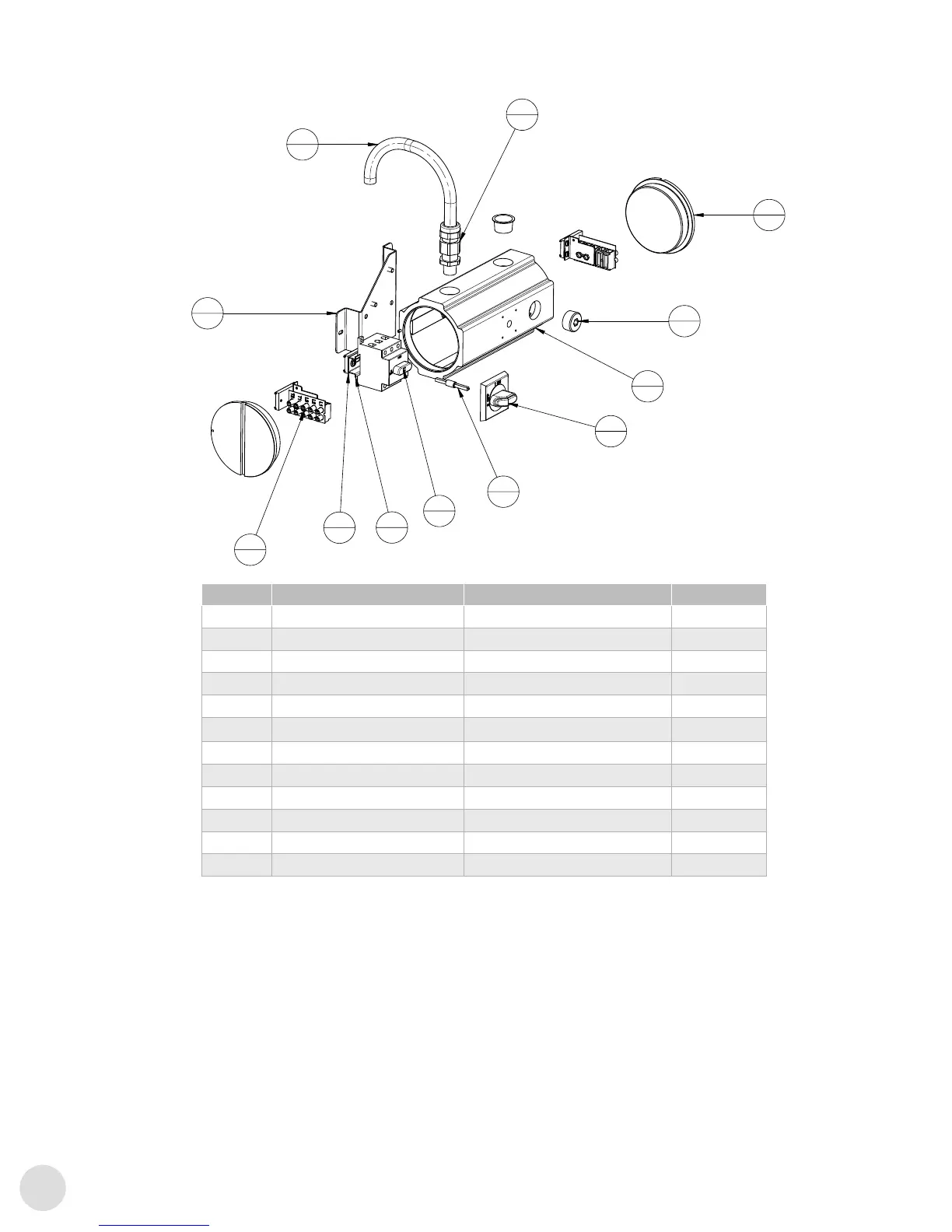

F.3 XS40 Disconnect
XS40
KIT, XS40 DISC SWTCH ASSM
ANGULAR
CHK'D BY:
APP'D. BY:
SCALE:
DRN BY:
±
DWG NO.:
TITLE:
SYTELINE NO.:
METRIC
TOLERANCE UNLESS NOTED OTHERWISE
DECIMAL FRACTIONAL
REVISION DESCRIPTION
REV.
BYDATE
1/2° 0.005" 1/16" 1 mm
SHEET:
XS40
lbrauer
19 Dec 2013
±±±
SCALE
EDMONTON, ALBERTA
1 OF 1
6
1
2
1
10
1
1
1
7
1
9
1
4
2
5
1
8
2
3
1
11
1
12
1
Item Number Part Number Description Quantity
1 B16229-03 Terminal Box, X-max Series 2 1
2 12147 Disconnect Switch Handle 1
3 12241-02 Operating Shaft 1
4 B12334-01 Terminal Box Cover 2
5 B12676-07 Trolley, Disconnect Switch 1
6 11362 Bracket, Din Rail 1
7 12112 Switch, Disconnect 1
8 B12676-07 Terminal Block Ass'y 2
9 XHP100 Dry Seal Plug 1" NPT 1
10 11650 Mounting Bracket 1
11 Contact Manufactuer Cable, Teck-90HL 1
12 Contact Manufacturer Fitting, Teck Cable 1
Item Part Number Description Quantity
1 B16229-03 Terminal Box, X-max Series 2 1
2 12147 Disconnect Switch Handle 1
3 12241-02 Operating Shaft 1
4 B12334-01 Terminal Box Cover 2
5 B12676-07 Trolley, Disconnect Switch 1
6 11362 Bracket, Din Rail 1
7 12112 Switch, Disconnect 1
8 B12676-07 Terminal Block Ass’y 2
9 XHP100 Dry Seal Plug 1" NPT 1
10 11650 Mounting Bracket 1
11 Contact Manufacturer Cable, Teck-90HL 1
12 Contact Manufacturer Fitting, Teck Cable 1
