RuiDeng DPS5020 - DPS Series Connection and Panel Description

2
/
32
Output power range
0-750W
0-1000W
0-384W
Output Current range
0-15.00A
0-20.00A
0-12.00A
Weight(packet included)
218g
234g
225g
Output Voltage accuracy
±(0.5%+3digit)
Output Current accuracy
±(0.5%+5digit)
Output Voltage resolution
0.01V
Output Current resolution
0.01A
Display module size
79*43*38mm
Display module open size
79*39mm（Different hardness and thickness materials will
be different, please test before batch use）
Power module size
93*73*41mm
93*73*41mm
93*71*41mm
Fixed hole center distance
86mm、64mm
Output ripple typical
Approximately 100mV peak
Application ambient
temperature
-10℃～45℃
connection cables - length
200mm
Note: the following description uses the DPS5015 as an example. Other models have same
functions and operation except for parameters.

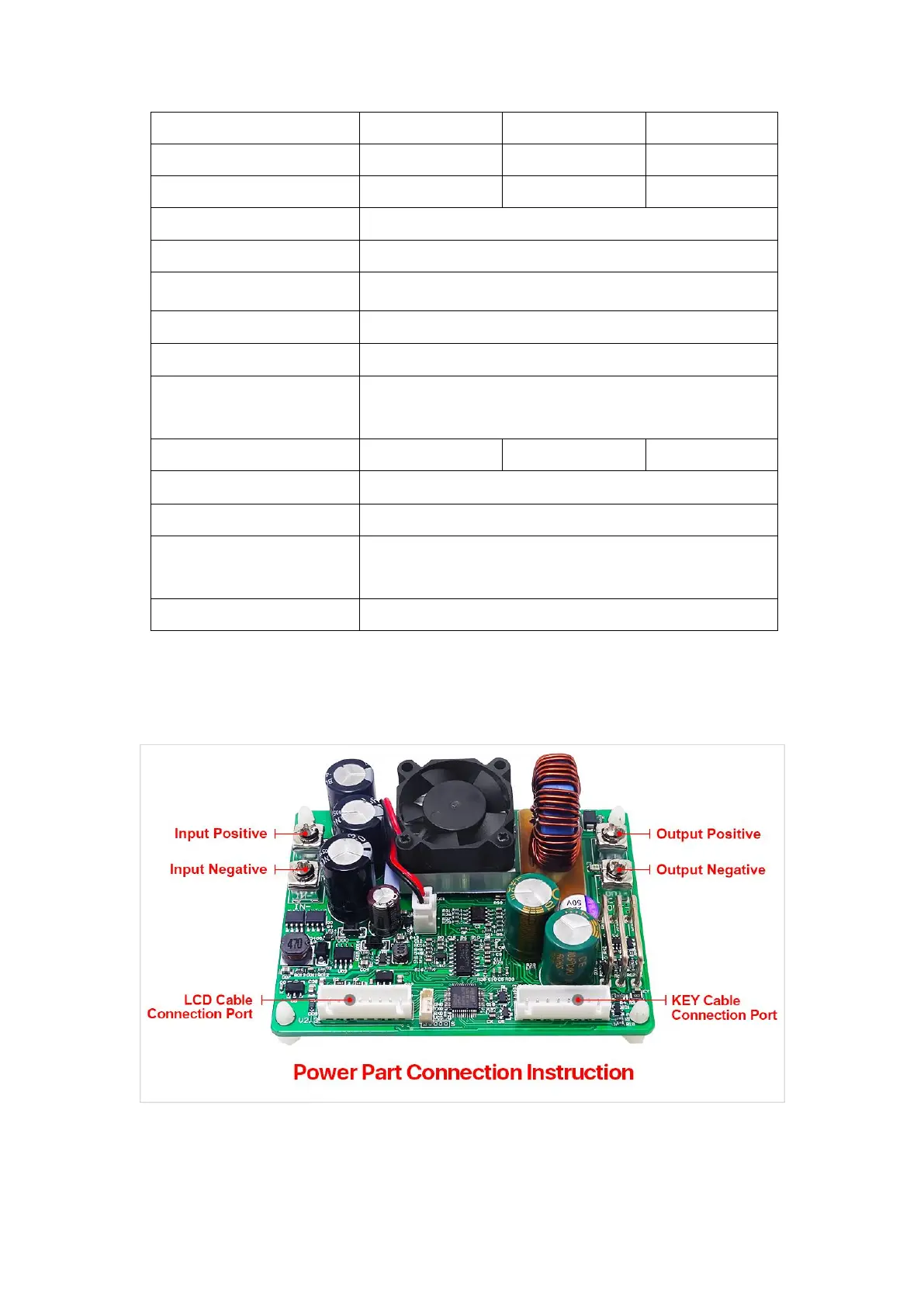

1.3 Connection Description
IN+: Input positive IN - : Input negative
OUT+: Output positive OUT- : Output negative
LCD: Screen Cable, connect to the display panel LCD
