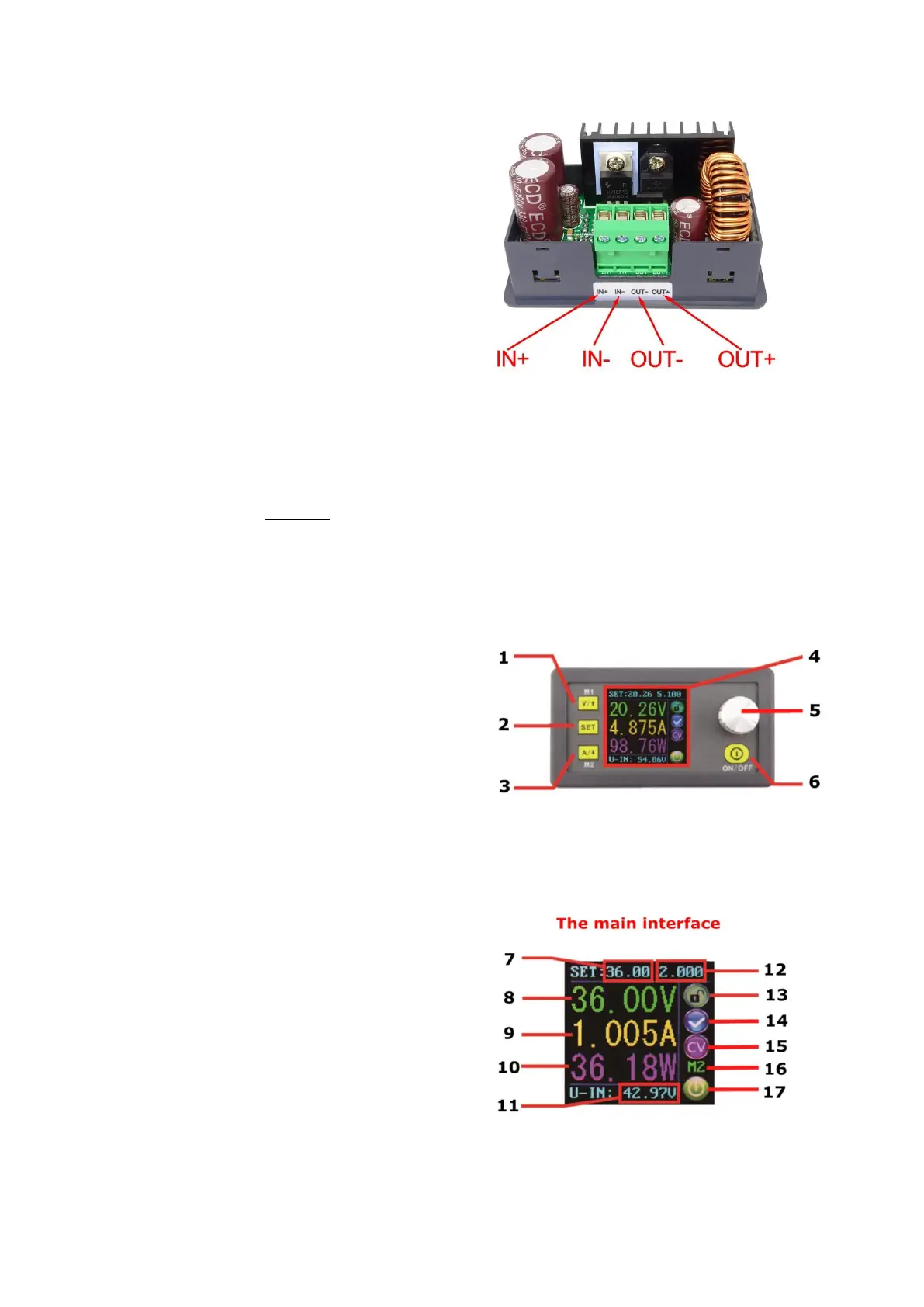

Connection details
IN+ : Input positive IN - : Input negative
OUT+: Output positive OUT- :Output
negative
Note: The input Voltage range is DC 10.00-80.00V.
80.00V DC is the maximum input Voltage limit.
Always ensure an adequate safety margin and
ensure that your OFF LOAD input supply Voltage
does not exceed the maximum allowed. Failure to
do so can result in considerable damage to the
unit.
Even though this module is designed with reverse polarity input protection and output short
circuit protection you must still ensure that connections to the unit are in accordance with the
connection details. If the Input Power Supply is connected to the output terminals then the unit
will be severely damaged.
The input must be DC Power only. AC or AC Mains supply 110 or 220V must NEVER under any
circumstances be connected to this unit. Apart from the immediate and potentially fatal risk of
electrocution this will cause major, irreparable damage to the unit.
Panel description
1. Voltage setting / Up Arrow / Shortcut to recall
M1 Data Group.
2. Data entry / Extract data from the specified Data
Group / Store value into the specified Data Group.
3. Current Limit setting / Down Arrow / Shortcut to
recall M2 Data Group.
4. 1.44 inch full colour LCD screen.
5. Rotary control / Data adjustment / Key lock.
6. Output On / Off.
Display interface description
7. The preset value of the output Voltage.
8. The actual value of the output Voltage.
9. The actual value of the output Current.
10. The actual value of the output Power.
11. The actual value of the input Voltage.
12. The preset value of the output Current Limit.
13. Keypad locked or unlocked prompt.
14. Normal or abnormal status prompt.
15. Constant Voltage or Constant Current status prompt.
16. Data Group number in use prompt.
