1. Grounding Stud
2. Power Supply Module Slot 1 (A filler panel is required if the
slot is vacant.)
3. Power Supply Module Slot 2 (A filler panel is required if the
slot is vacant.)
Power Supply
The RG-S5310-48GT4XS-E switch supports dual power supply modules. See Chapter 1.13 for details about the power supply modules.
The switch can be powered on by either one power supply module or dual power supply modules. If both power supply modules are
used, the switch works in the power redundancy mode.
Cooling
The RG-S5310-48GT4XS-E switch adopts a left-to-right and front-to-right airflow to ensure normal operation. Maintain a minimum
clearance of 100 mm (3.94 in.) around the device for air circulation.

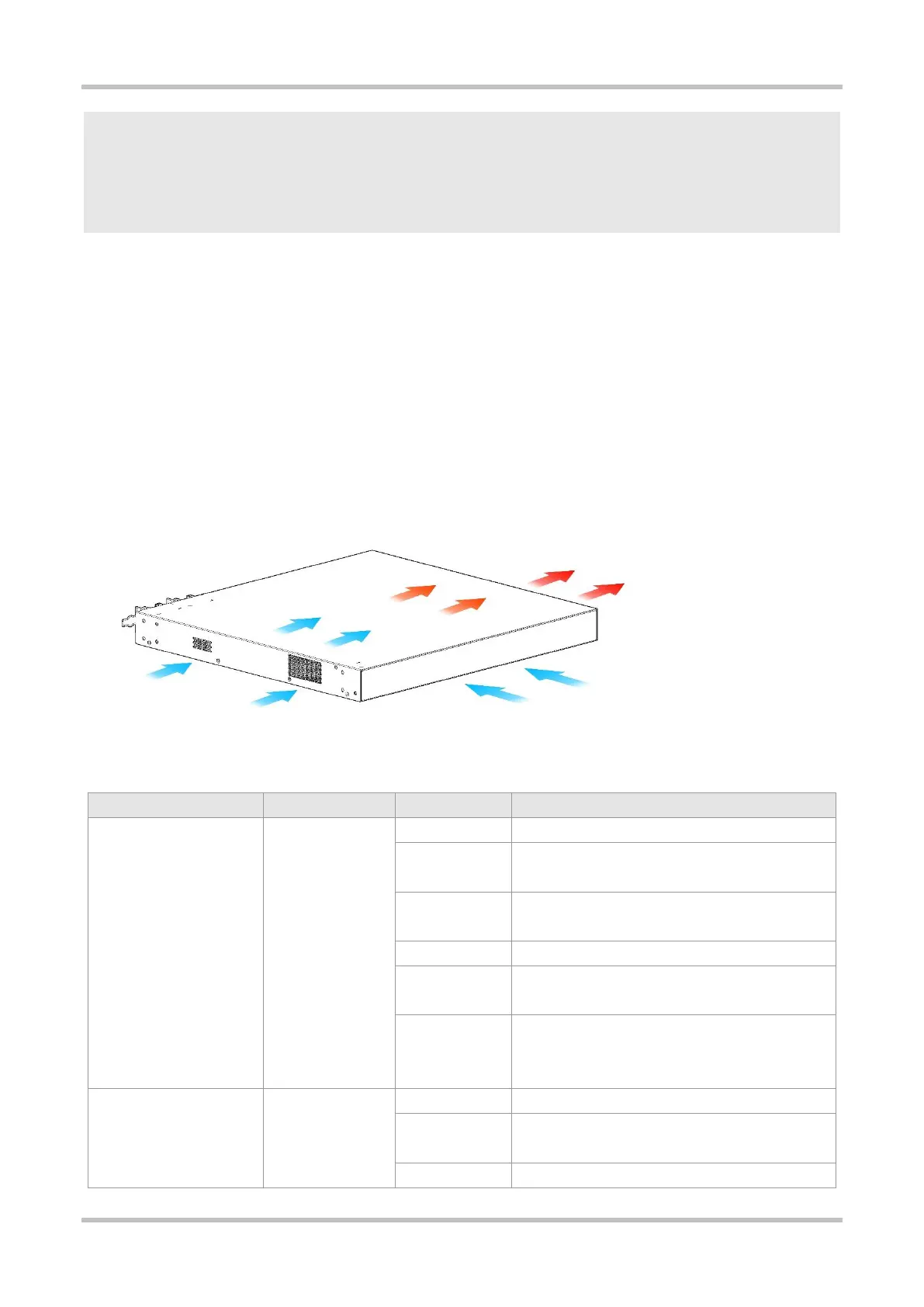

Figure 1-16 Airflow Direction
LED
Function
Panel ID
Color
Status
System Status LED
Status
Off
System is not powered on.
Blinking Green (3
Hz)
System is being initialized. Continuous blinking
indicates a fault.
Blinking Green
(10 Hz)
System is being located.
Solid Green
System is operating normally.
Solid Yellow
The temperature at the air intake and exhaust vents
exceeds the threshold.
Solid Red
1. The temperature at the air intake and exhaust vents
well exceeds the threshold.
2. The system is not functioning properly.
Power Supply Status LED
PWR1/PWR2
Off
The power supply module is not seated.
Solid Green
The power supply module is seated and providing
power to the switch.
Solid Yellow
The model of the power supply module is not
