RG-ES206GS-P Series Switches Hardware Installation and Reference Guide Appendix D — Cabling Recommendations
- 33 -

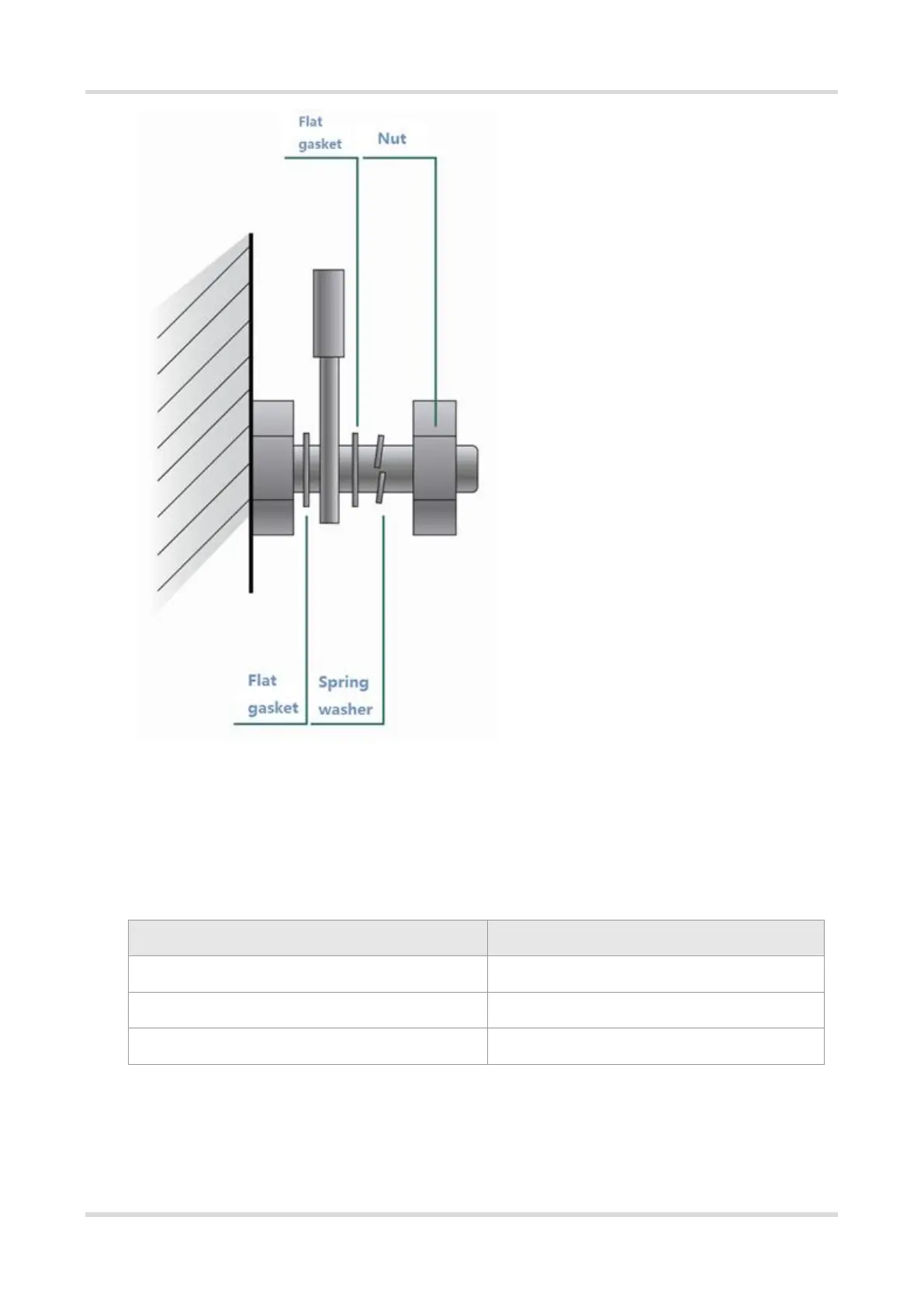

 Hard power cords should be fastened in the terminal connection area to prevent stress on terminal
connection and cable.
 Do not use self-tapping screws to fasten terminals.
 Power cords of the same type and in the same cabling direction should be bundled up into cable bunches,
with cables in cable bunches clean and straight.
 Bundle up cables by using cable ties.
Cable Bunch Diameter (mm)
Binding Spacing (mm)
10
80–150 mm (3.15–5.91 in.)
10–30 mm (0.394–1.18 in.)
150–200 mm (5.91–7.87 in.)
30 mm (1.18 in.)
200–300 mm (7.87–11.81 in.)
 Do not tie cables or bundles in a knot.
 For wiring terminal sockets (such as circuit breakers) with cord end terminals, the metal part of the cord end
terminal should not be exposed outside the terminal socket when assembled.
