Ruijie Reyee RG-EST310 Hardware Installation And Reference Guide

Hardware Installation and Reference Guide 1 Product Overview
3
1.3.1 Port & Button

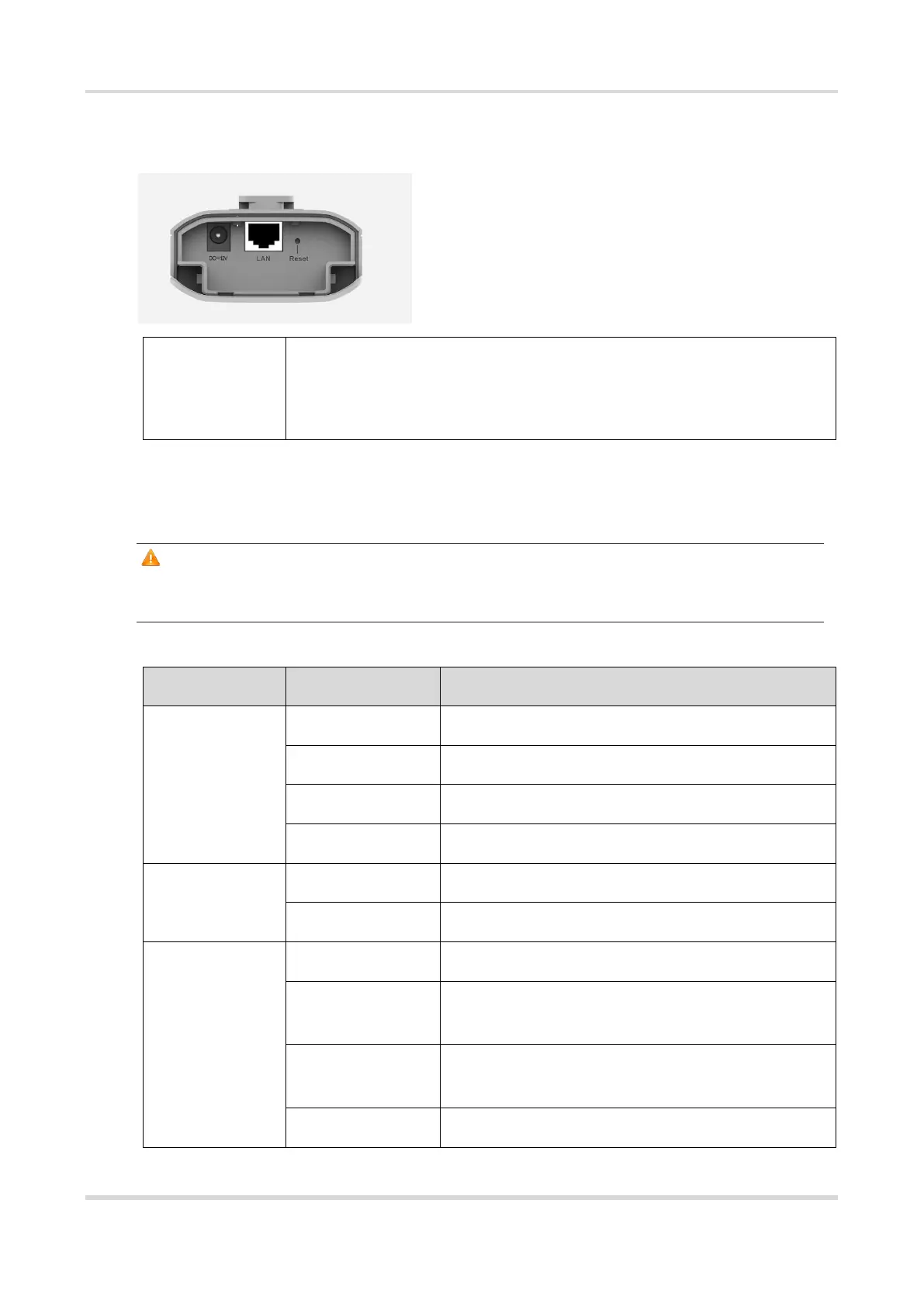

Figure 1-2 Port & Button
Note
1. 12 VDC Port
2. 10/100Base-T Ethernet Port (PoE-capable)
3. Reset button
1.3.2 Power Supply
RG-EST310 V2 adopts 12 V/1 A DC or 24 V non-standard PoE power supply. The device is delivered with a 24
V/0.5A power adapter.
Caution
● Please do not use a switch or a PoE adapter of another model for power supply. Otherwise, the device
may be damaged.
Table 1-2 LED Description
LED
Status
Description
System Status
LED
Off
System is not powered on.
Solid On
Initiation process is complete.
Slow Blinking
System is working but there is an alert.
Fast Blinking
System is being initialized.
Port Status LED
Solid On
The LAN port is not receiving or transmitting data.
Blinking
The LAN port is receiving or transmitting data.
Signal LED
LED 1 is solid on.
-73 dBm< RSSI <-59 dBm
LED 1 and LED 2
are solid on.
RSSI > -59 dBm
LED 1, LED 2 and
LED 3 are solid on.
RSSI > -49 dBm
Off
There is no signal.
