Product Appearance
On the front panel, the RG-NBS3100-8GT2SFP Ethernet switch provides 8 10/100/1000Base-T Ethernet ports, 2 SFP
ports, 1 reset button and 1 DC power port.

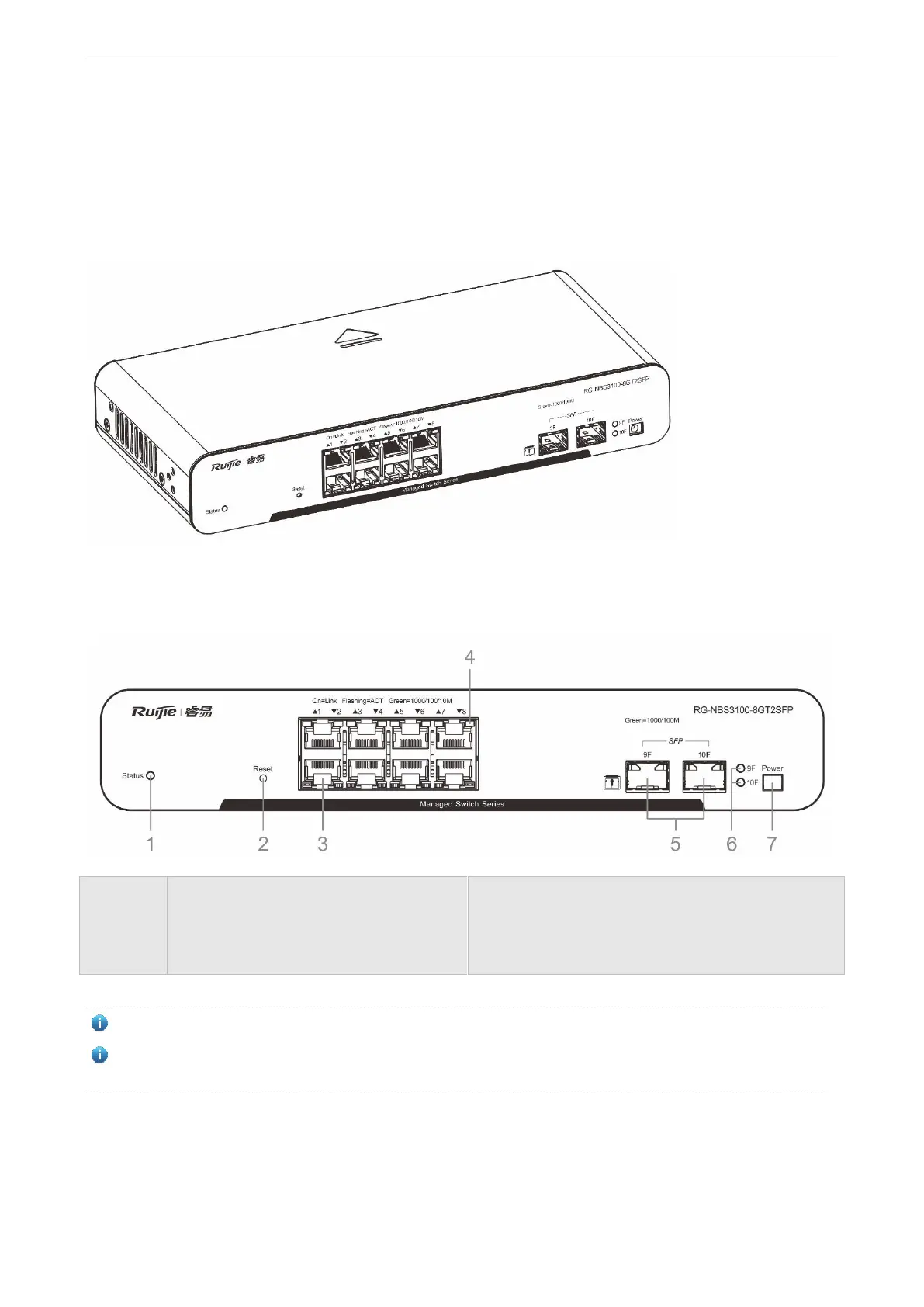

Figure 1-8 Appearance of RG-NBS3100-8GT2SFP
Front Panel
Figure 1-9 Front Panel of RG-NBS3100-8GT2SFP
Note:
1. System status LED
2. Reset button
3. 10/100/1000 Base-T Ethernet port
4. Copper port status LED
5. 1000 Base-X SFP port
6. SFP port status LED
7. DC power port
The switch reboots after the reset button is pressed for less than 2 seconds.
The switch restores the default factory settings after the reset button is pressed for more than 5 seconds (until the
status LED blinks).
Back Panel
Figure 1-10 Back Panel of RG-NBS3100-8GT2SFP
