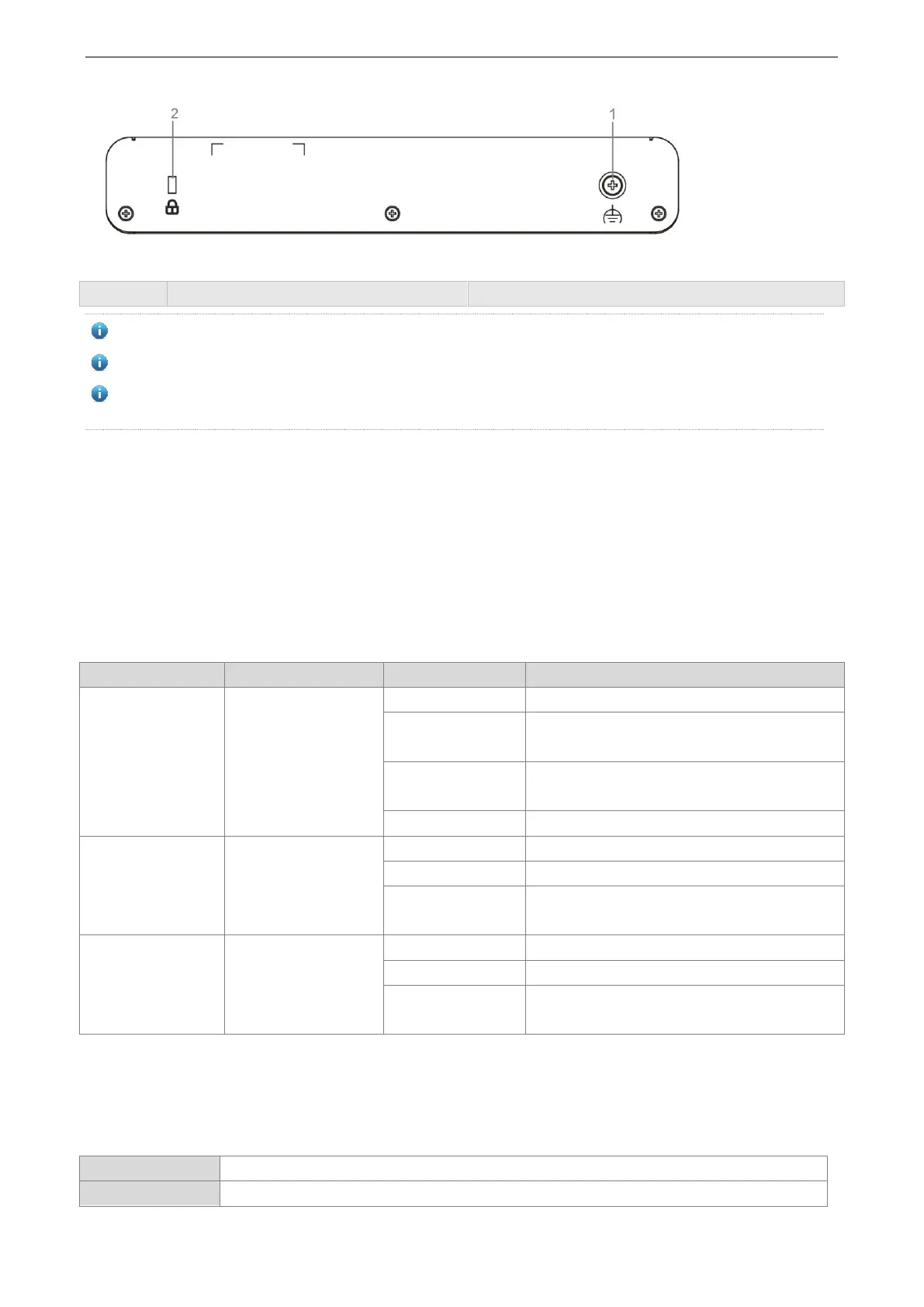

Note:
1. Protective earthing terminal
2. Hole for anti-theft lock
This device relies on the separate protective earthing terminal.
The device installation shall be permanently connected to building earth by a skilled person.
The device shall be intended to be used in a location having equipotential bonding(such as a telecommunication
centre, a dedicated computer room, or a restricted access area).
Heat Dissipation
RG-NBS3100-8GT2SFP adopts natural heat dissipation, thereby ensuring normal function of the device in the specified
environment. 10 cm distance space should be reserved at both sides and the back plane of the cabinet to allow air
circulation. It is recommended to clean the device once every 3 months to avoid dust from blocking vents.
LED
LED
Panel Identification
State
Meaning
System status LED
Status
Off
The switch is not receiving power.
Blinking green
(0.5Hz)
The switch is running, but is not connected to
Ruijie Cloud.
Blinking green
(10Hz)
The switch is being upgraded or initialized.
Solid green
The switch is connected to Ruijie Cloud.
10/100/1000Base-T
Ethernet port status
LED
1-8
Off
The port is not connected.
Solid green
The port is connected at 10/100/1000 Mbps.
Blinking green
The port is receiving or transmitting traffic
10/100/1000 Mbps.
SFP port status LED
9F-10F
Off
The port is not connected.
Solid green
The port is connected at 100/1000 Mbps.
Blinking green
The port is receiving or transmitting traffic at
100/1000 Mbps.
1.4 RG-NBS3100-8GT2SFP-P
Technical Specifications
Model
RG-NBS3100-8GT2SFP-P
CPU
Built-in CPU, single-core processor, 500 MHz
