10

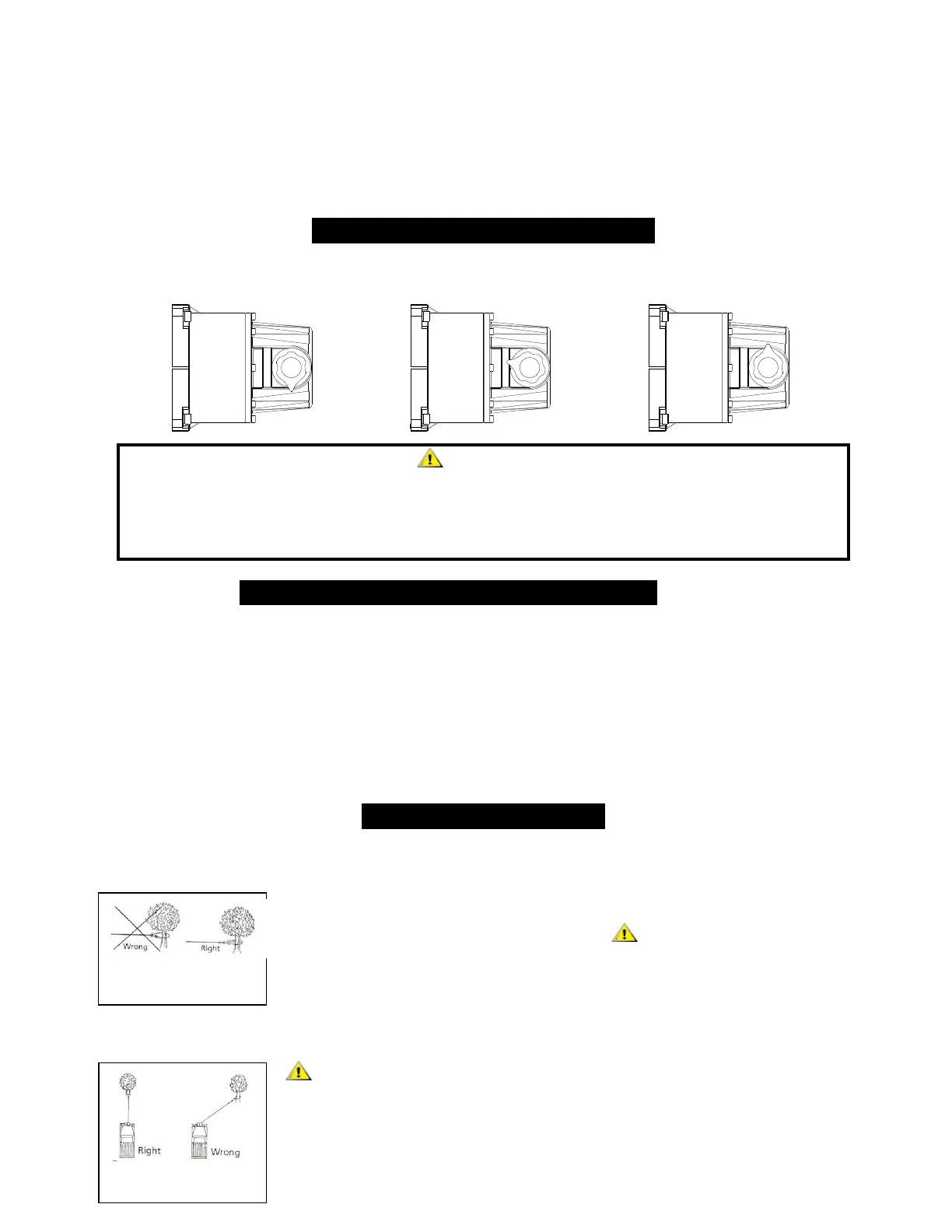

CLUTCH OPERATING DRAWING
L O W S P E E D F R E E S P O O L H I G H S P E E D
WARNING
1.Do not put the clutch disengaging when the winch is working.
2.At high speed, the load should not exceed 5,000lbs.
3.If the cluch is not engaged, rotate the drum to make sure the clutch is
engaged.
WINCH ACCESSORIES YOU WILL NEED
NOT INCLUDED WITH YOUR WINCH
Gloves – For handling the wire rope and hook strap.
Anchor Strap/Chain – Tree saver anchor straps are made of high quality nylon with
high tensile strengths up to 15000lbs.
Heavy Blanket – place on the cable to absorb energy should the wire rope break.
RIGGING TECHNIQUES
Self-Recovery
Locate a suitable anchor such as a strong tree trunk or boulder.
Always use a sling as an anchor point. CAUTION Do not attach
the clevis hook back onto the cable as this could cause damage to
the cable.As shown in Fig 3.1
CAUTION Do not winch from an acute angle as the wire rope
will pile up on one side of the drum causing damage to wire rope
and the winch. Fig 3.2
