MODEL F73（17603）
10
Notice
● If making a soldered copper installation should do all sweat
soldering before connecting pipes to the valve. Torch heat will
damage plastic parts.
● When turning threaded pipe fittings onto plastic fitting, use care
not to cross thread or broken valve.
⑤ Install drain pipeline

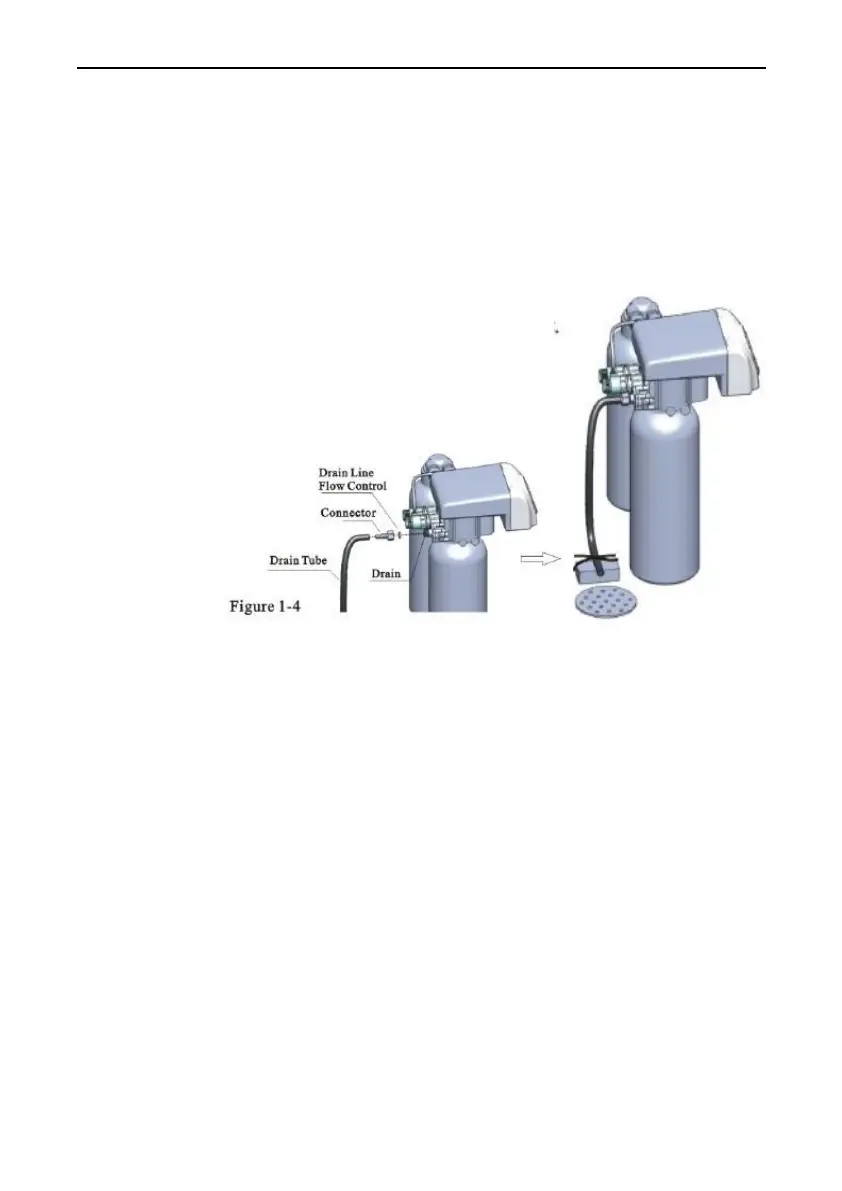

a. As the Figure 1-4 shows, slide the drain hose
connector into drain outlet.
b. Insert drain line flow control into drain outlet
c. Screw
drain hose
connector
into drain
outlet, and
lock it.
d. Locate
the drain hose well as the Figure1-4 show.
Notice:
● Control valve should be higher than drain outlet, and be better
not far from the drain hose.
● Be sure not connect drain with sewer, and leave a certain space
between them, avoid wastewater be absorbing to the water
treatment equipment, such as showed in the Figure1-4.
● If necessary can use a container to take drainage, the drain
hose should be kept in certain distance from container as well.
