MODEL F73（17603）
11
⑥ Connect brine tube

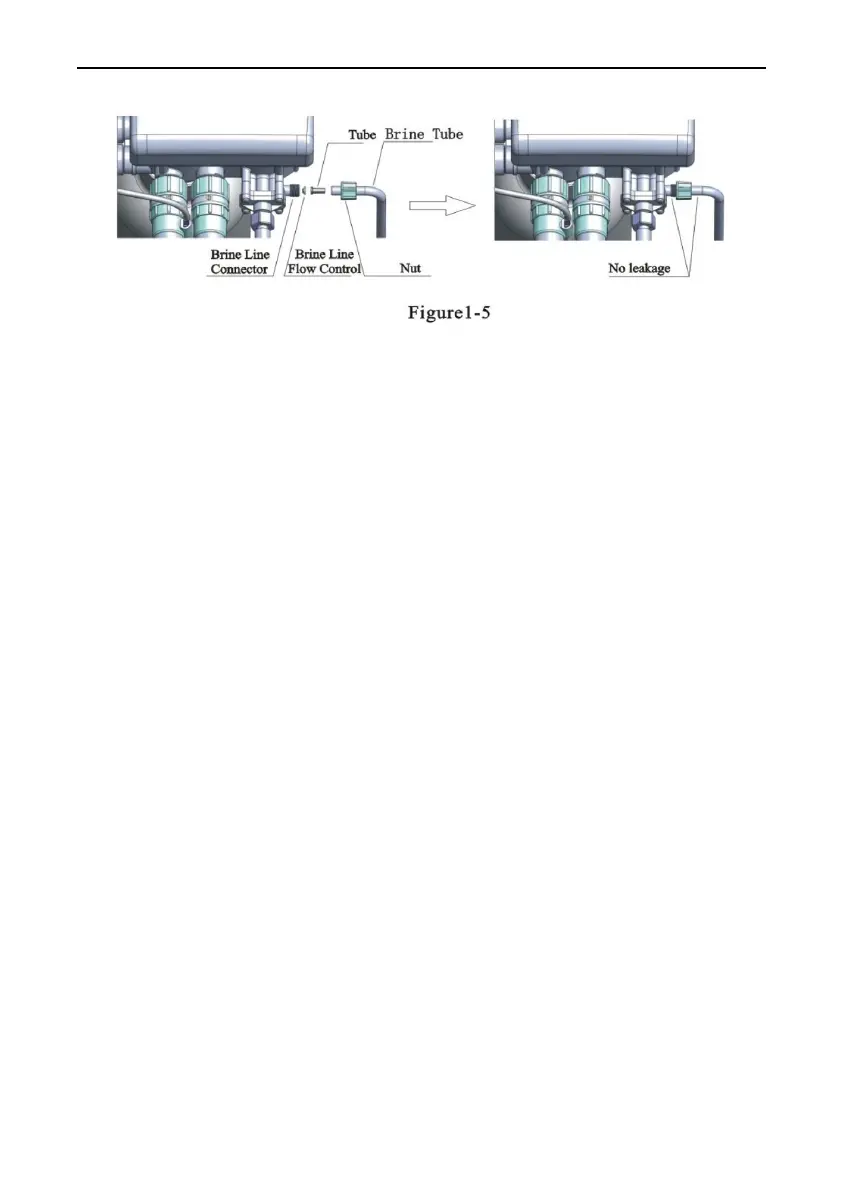

a. As Figure1-5 shows, slide 3/8″ brine tube hose connector over end of
brine tube.
b. Insert tube bushing into the end of brine tube.
c. Insert the red brine line flow control into valve brine line connector
(Attention: cone side of control should face into valve)
d. Tighten brine draw hose connector onto brine line connector.
e. Connect the other end of brine tube with the brine tank. (The liquid
level controller and air-blocker should be installed in the brine tank.)
Remark: The brine tube and drain pipeline should not be bended or
plugged.
