MODEL 82602-F79A-LCD/82602B-F79B-LCD/82604-F82A-LCD/82604B-F82B-LCD
9
⑥ Do not install the filter or softener, drain pipeline in circumstance which
temperature may drop below 5℃, or above 50℃.
⑦ One place is recommended to install the system which cause the
minimum loss in case of water leaking.
C. Pipeline installation (Exampled as F82)
○
,1 Install control valve

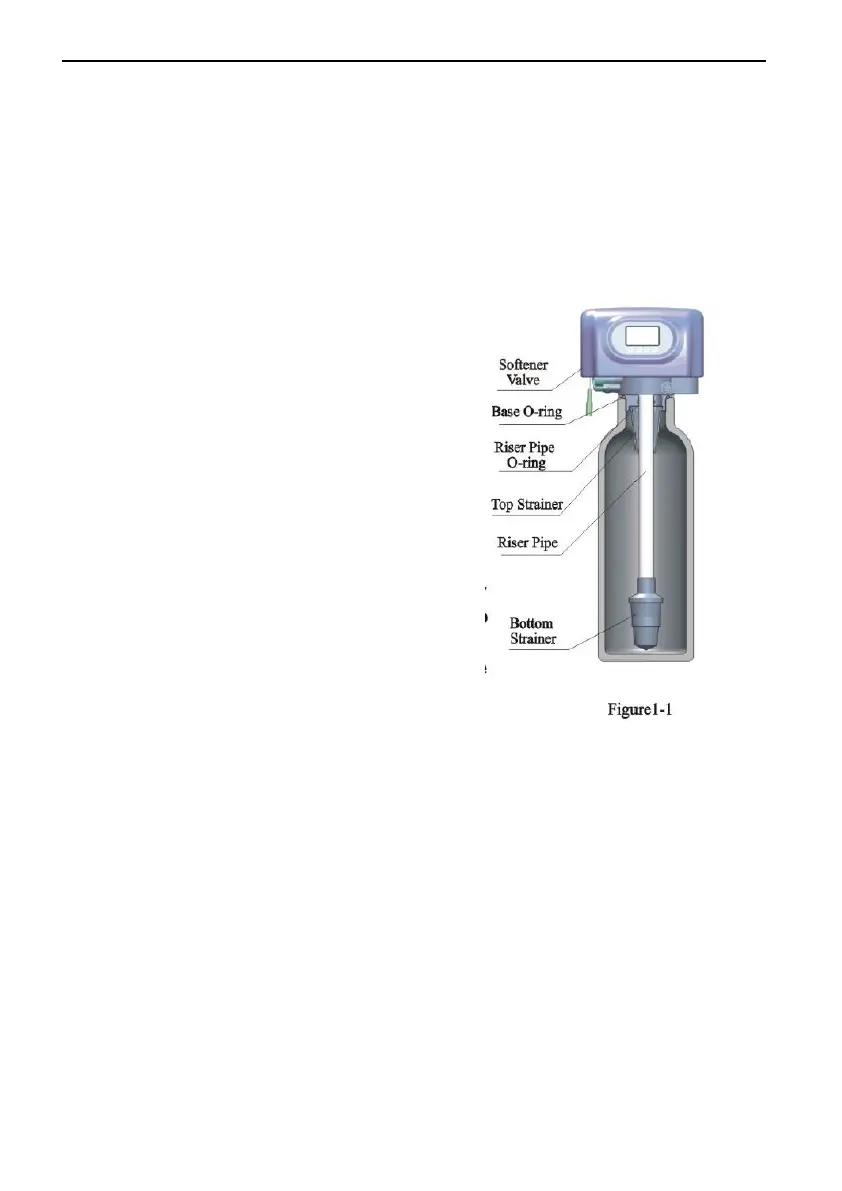

a. As the Figure 1-1 shows, select the riser
pipe with 26.7 mm OD, glue the riser pipe
to the bottom strainer and put it into the
resin tank, cut off the exceeding tube out of
tank top opening. Plug the riser tube in
case of mineral entering.
b. Fill the resin to the tank, and the height
is accordance with the design code.
c. Install the top distributor to the valve.
d. Insert the riser tube into control valve
and screw tight control valve.
Note:
●The length of riser tube should be
neither higher 2 mm nor lower 5 mm
tank top opening height, and its top end
should be rounded to avoid damage of
O-ring inside the valve.
●Avoid floccules substance together
with resin to fill in the resin tank.
●Avoid O-ring inside control valve falling out while rotating it on the
tank.
○,2 Install animated connector
As Figure1-2 shows, put the sealing ring into nut of animated
connector, and screw in water inlet.
○,3 Install flow meter
As Figure1-2 shows, put the sealing ring into nut of flow meter, screw
in water outlet; insert the sensor into flow meter.
