Fill the fuel tank completely.

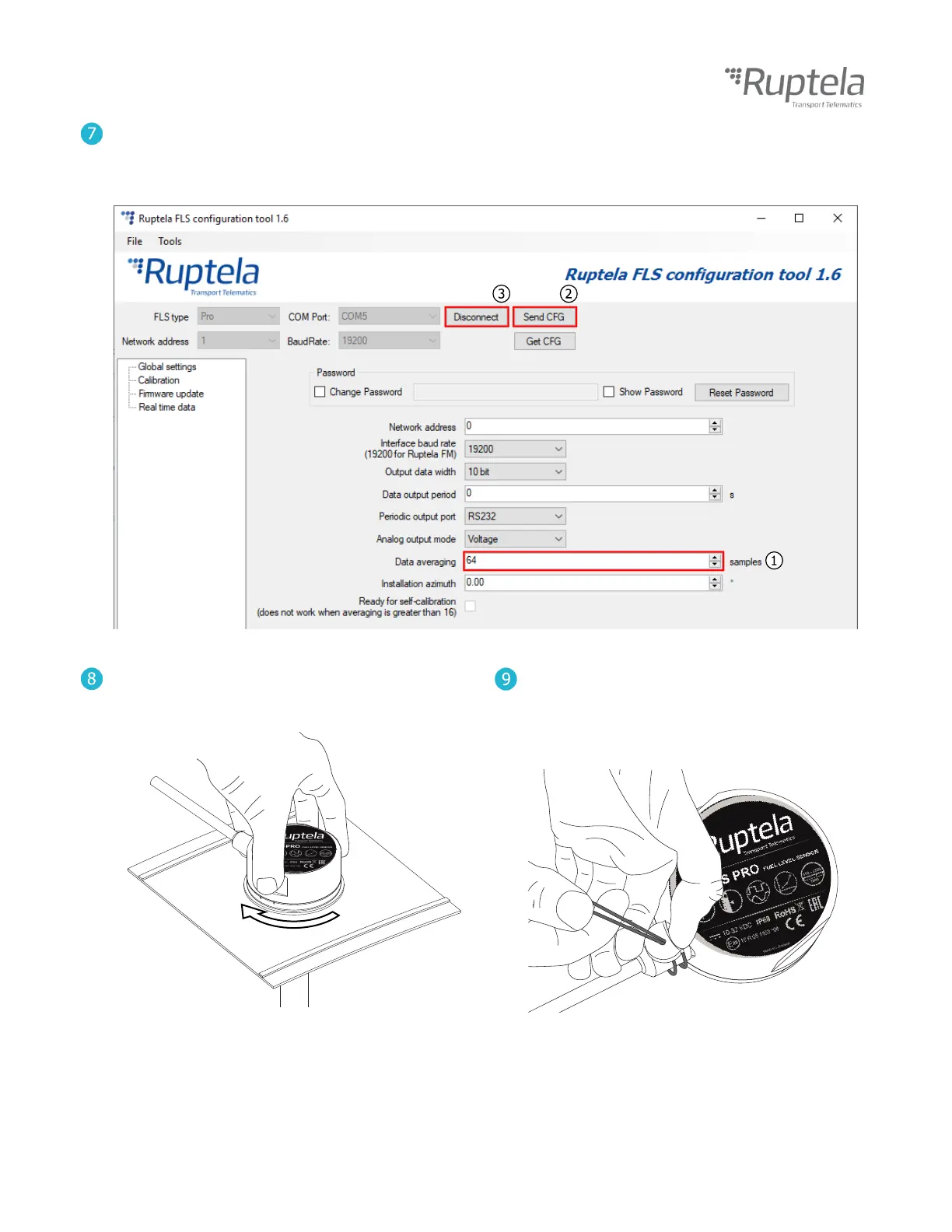

Before finishing installation, set Data averaging to 64 samples. (1)
Click Send CFG to upload the config to the FLS. (2)
Disconnect the measurement head from the computer. (3)
Twist the measurement head onto the probe.
Do not use force on the cable when tightening the
head.
Make a loop around the signal cable with the seal
wire.
Run the seal wire through the holes on the seal
and tighten the seal.
Twist
Seal
