Connection of the Water Supply & Drain Hose
Important notes:
• Connection to the water and electricity supplies should only be performed by a qualified
technician.
• The dishwasher should not stand on top of the water hoses or the electricity supply
cable. The water inlet and outlet hoses and the electricity supply cable may be
positioned towards the right or the left in order to achieve the best possible installation.
Connection of the Drain hose
Important notes:
• Before connecting the drain hose, remove any internal restrictions; this will prevent a
build up of debris which could cause a blockage, remove any restrictions from the waste
spigot and ensure that the sealing bung is removed.
• It MUST NOT be connected to a surface water drain.
• Do Not connect the dishwasher to the drain with an extended drainage hose (use the
ones supplied with the appliance), if an extension hose is needed then a pump must be
installed to pump the drainage through and out.
Insert the drain hose into a drain pipe that has a minimum diameter of 4cm (40mm) making
sure to avoid bending or crimping it. The free end of the hose must be at a height lower than
60cm/600mm and must not be immersed in water to avoid the back flow of it. The top of the

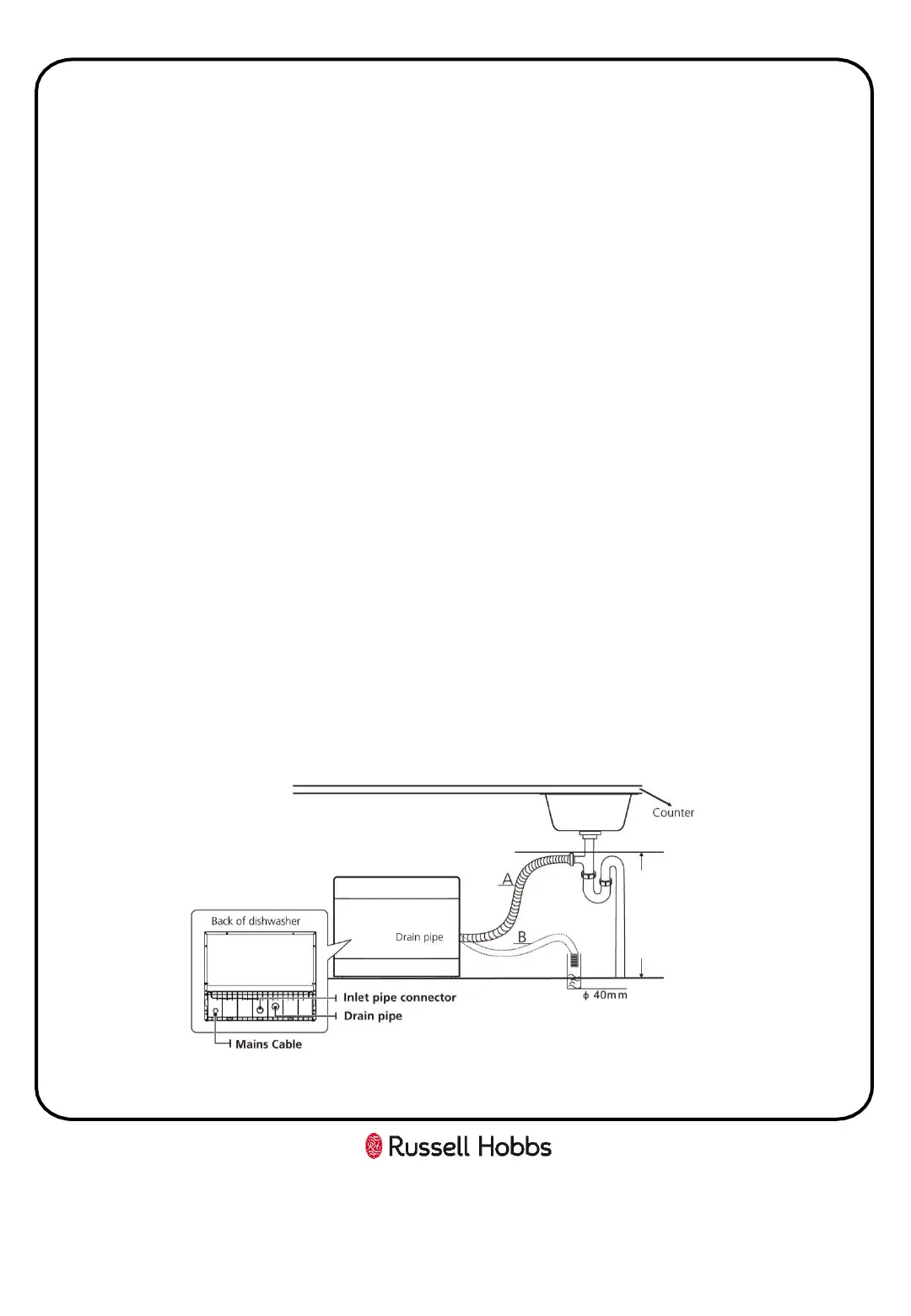

hose must be at a height between 20cm/200mm (B on the diagram) and 60cm/600mm (A on
the diagram). The free end of the hose must not be immersed in water to avoid the back flow
of it.
