Russound CA4 - Wall Port Front and Rear

13
Russound CA4 System Installation Manual

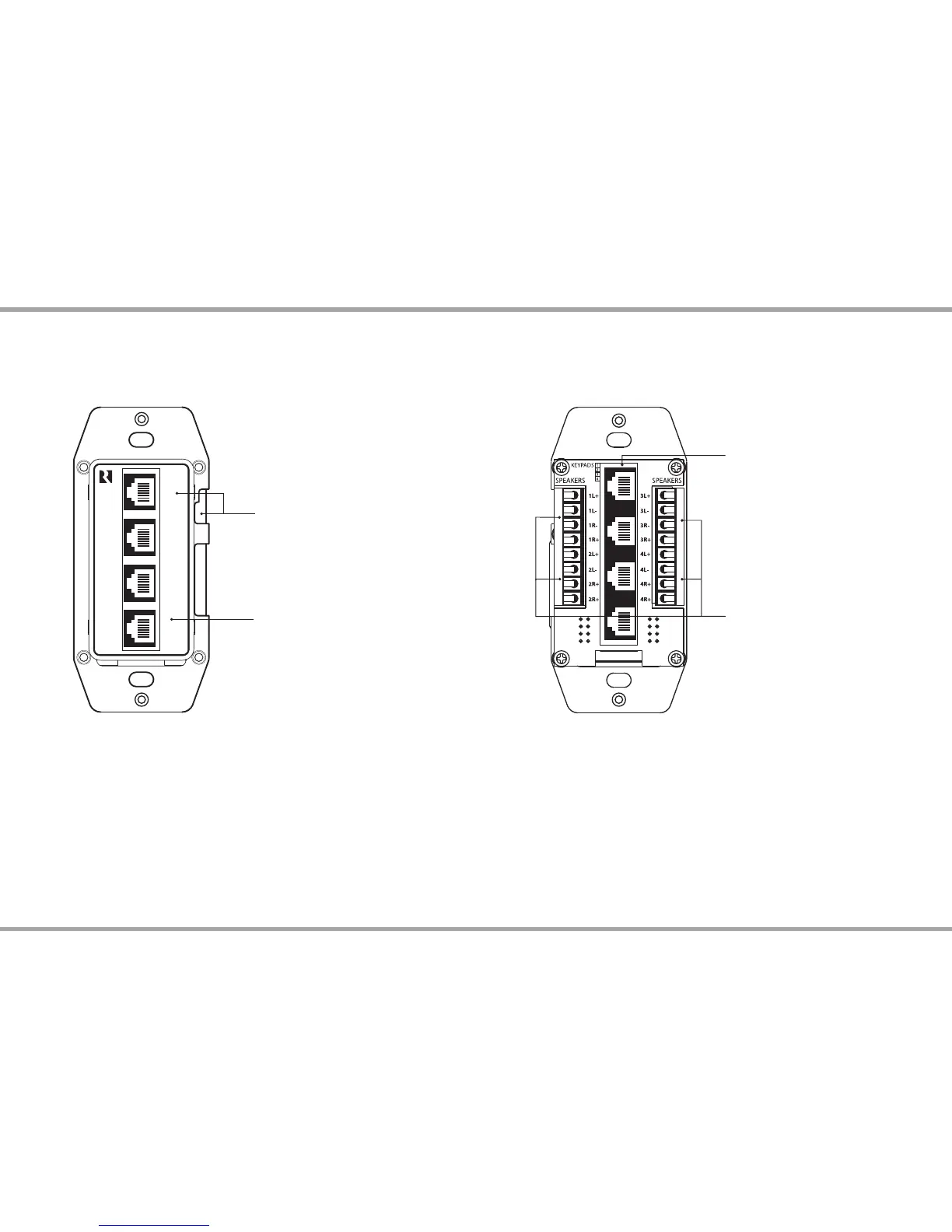

WALL pORT FRONT ANd REAR
CA4 Wall Port (rear)
Speaker terminals
Four pair 8 ohm speakers
Two channels each
RJ-45 Keypad Connections
Connect to each keypad
RJ-45 Connections
Use included CAT-5 cables to connect
the controller to the Wall Port.
CA4 Wall Port (front)
1
2
3
4
When changing face plate colors,
the plate cutouts must be on the
same side as the zone numbers
