CONTROLLER CONNECTIONS
Zone 4 Fixed/Variable Audio Output
The CA4 has two line Audio outputs on Zone 4. These zone audio output
connections feature a stereo line out RCA connection for a xed and/or a
variable line level output.
When connected to Variable, the keypad volume level aects this output. In
the Fixed position, the keypad volume level will not change the output level.
The xed or variable audio outputs can be used if additional amplication is
desired (e.g., Russound R235LS two-channel amplier). Use quality RCA signal
cables to ensure a constant quality audio signal.

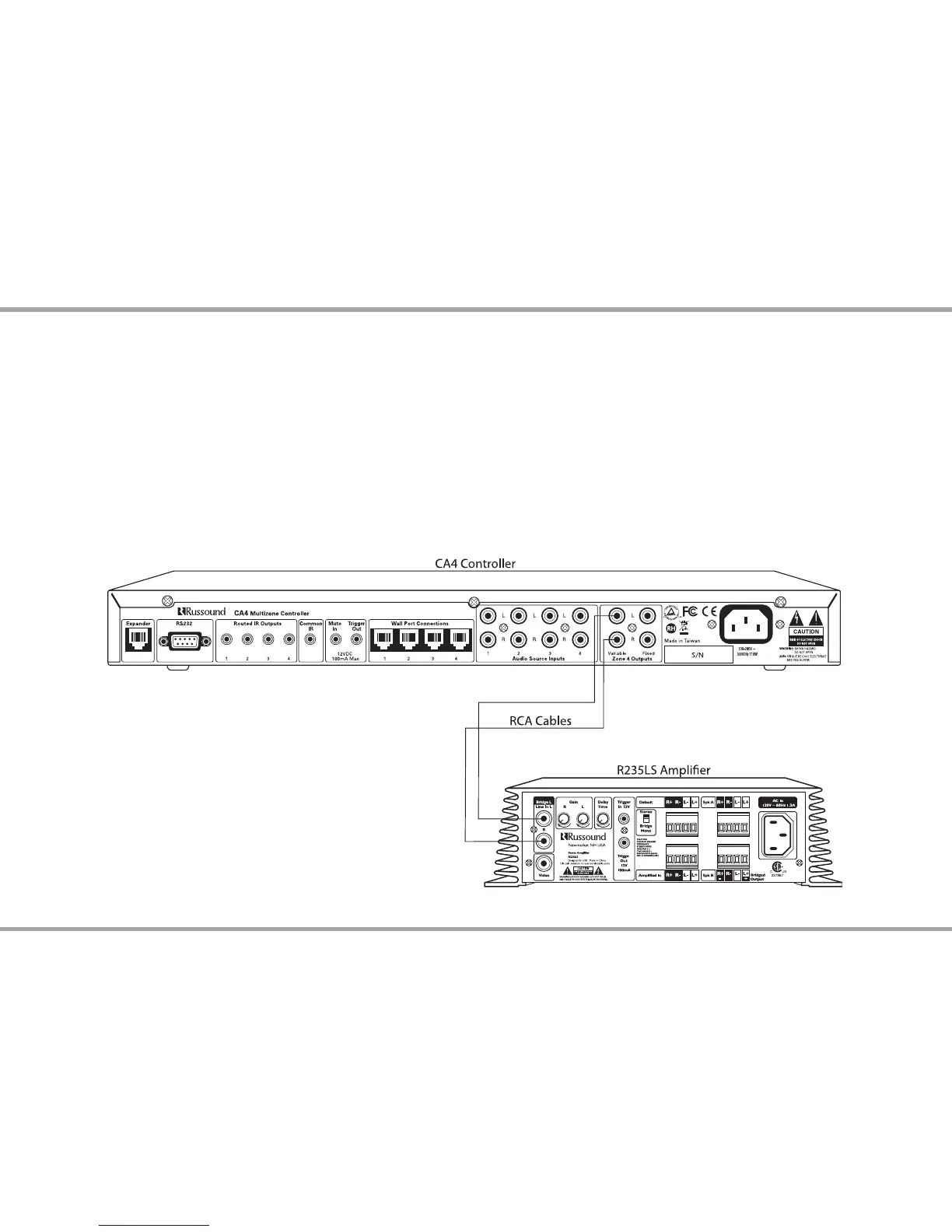

Sample Zone 4 Output Connection
