USE AND MAINTENANCE MANUAL R68090150
ORIGINALE
RUTHMANN ITALIA S.r.l. Via Santa Maria del Piano di sotto,91/B – 47854 Montescudo-Monte Colombo (RN) - ITALIA
pag. 32

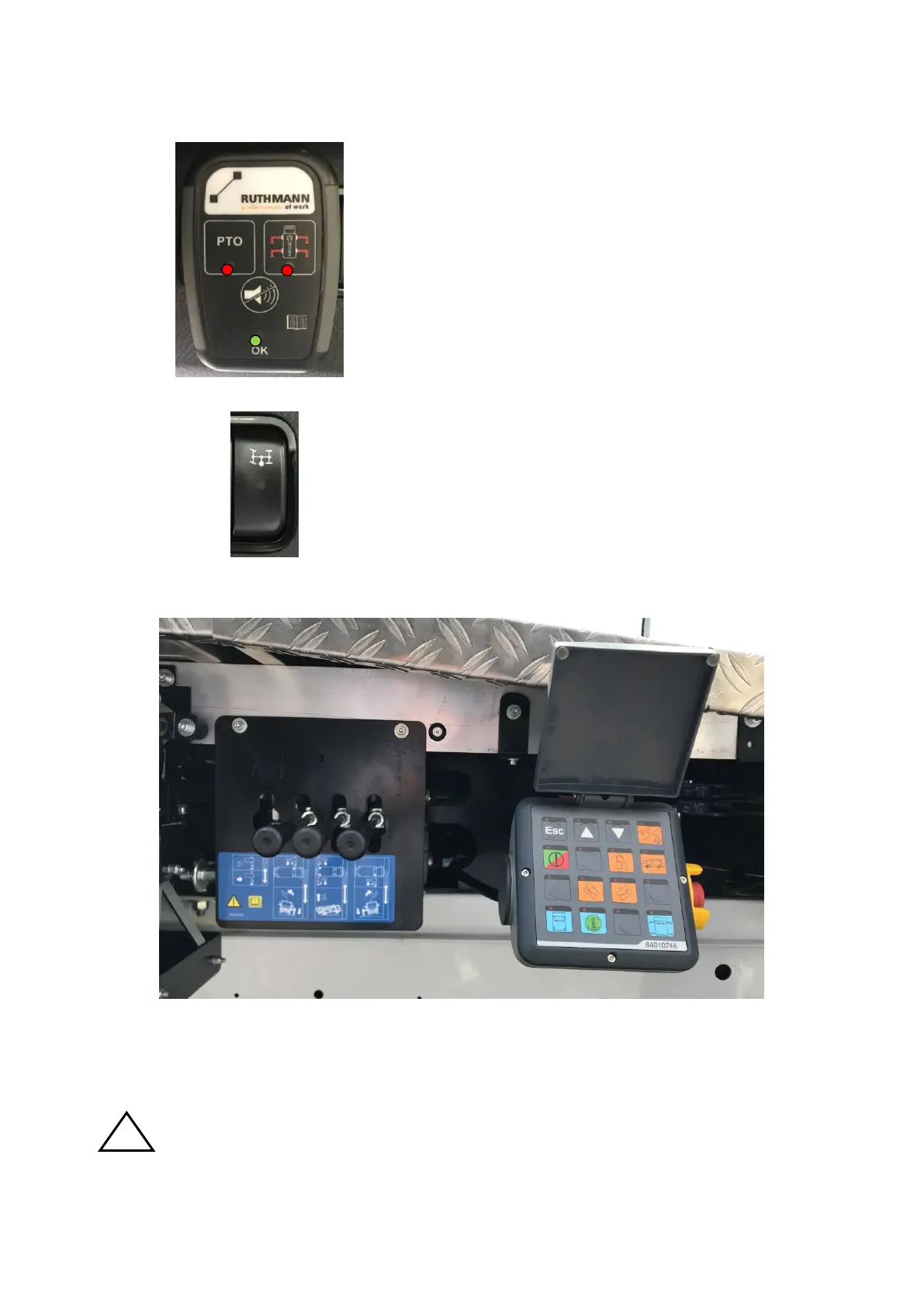

6.3 DESCRIPTION OF THE CAB CONTROLS
1. PTO Red pilot light: if it is lit, it indicates that the
PTO is connected.
2. STABILIZERS Red pilot light: if it is lit, it indicates
that the stabilizers are extended.
3. Push for stop the sound alarm
4. OK Green pilot light: if it is lit, it indicates that
stabilizers are retracted and PTO disconnected. The
operator can drive the platform.
5. Switch to connect PTO; it is necessary to activate
the hydraulic pump by means of the clutch pedal. The
red pilot light 1 switches on.
6.4 DESCRIPTION OF CONTROLS ON BASE-FRAME
1. Hydraulic control of outriggers
2. Push button, red “Emergency Cut-Off”: push this button in case of imminent risk. All movements of
the platform and the engine of the vehicle stop immediately.
ATTENTION
Please refer to chapter 8 for a full description of the functionality of each button.
The operators and maintenance staff must read this manual before using the machine and
before making any maintenance operation.
