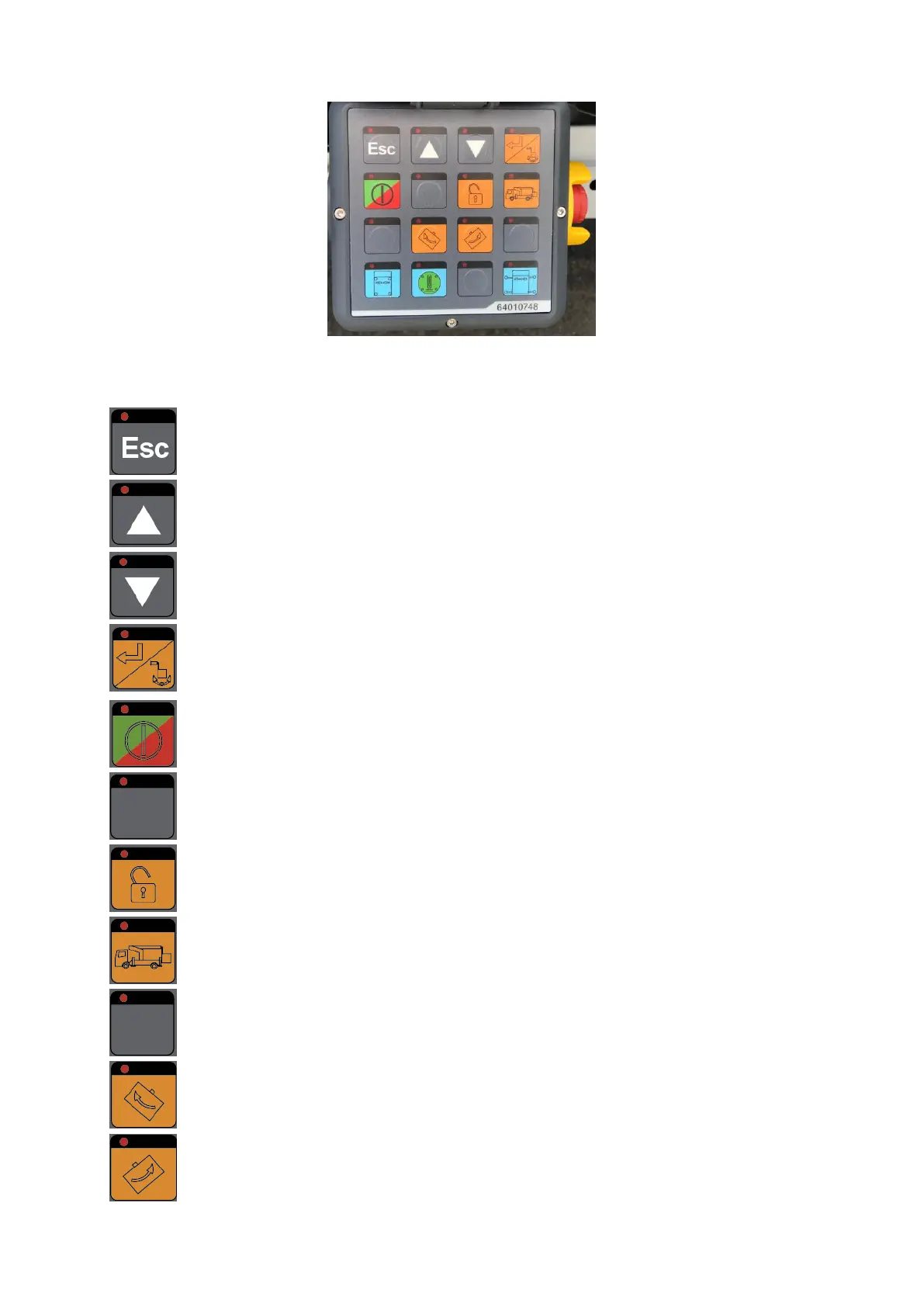

Coordination of function keys from left to right and from top to bottom:
Function key
Description
1.
Push button “ESC”

Return to previous page of diagnostic menu (showed on display
in basket)
2.
Push button “Display
up”

scrolling of plain text indication, the next “display page” will be
shown (display in basket)
3.
Push button “Display
down”

scrolling of plain text indication, the previous “display page” will
be shown (display in basket)
4.
Push button “ENTER”

Enter in the menu mode/Confirm the function
5.
Push button “Motor
start/stop”

- starts the vehicle engine (only possible with switched-on
ignition)
- stops the vehicle engine
6.
Free

without function
7.
Function keys enabled

When the function key is pressed, the jib control is enabled
8.
Luminous push button
“Go Home”

Push function (for 3 sec), move ECOLINE into the basic position
automatically.
Permanent light: boom in basic position.
9.
Free

without function
10.
Push button “Cage
rotation left”

without function
Blinking light: the cage rotation is not allowed.
11.
Push button “Cage
rotation right”

without function
Blinking light: the cage rotation is not allowed
